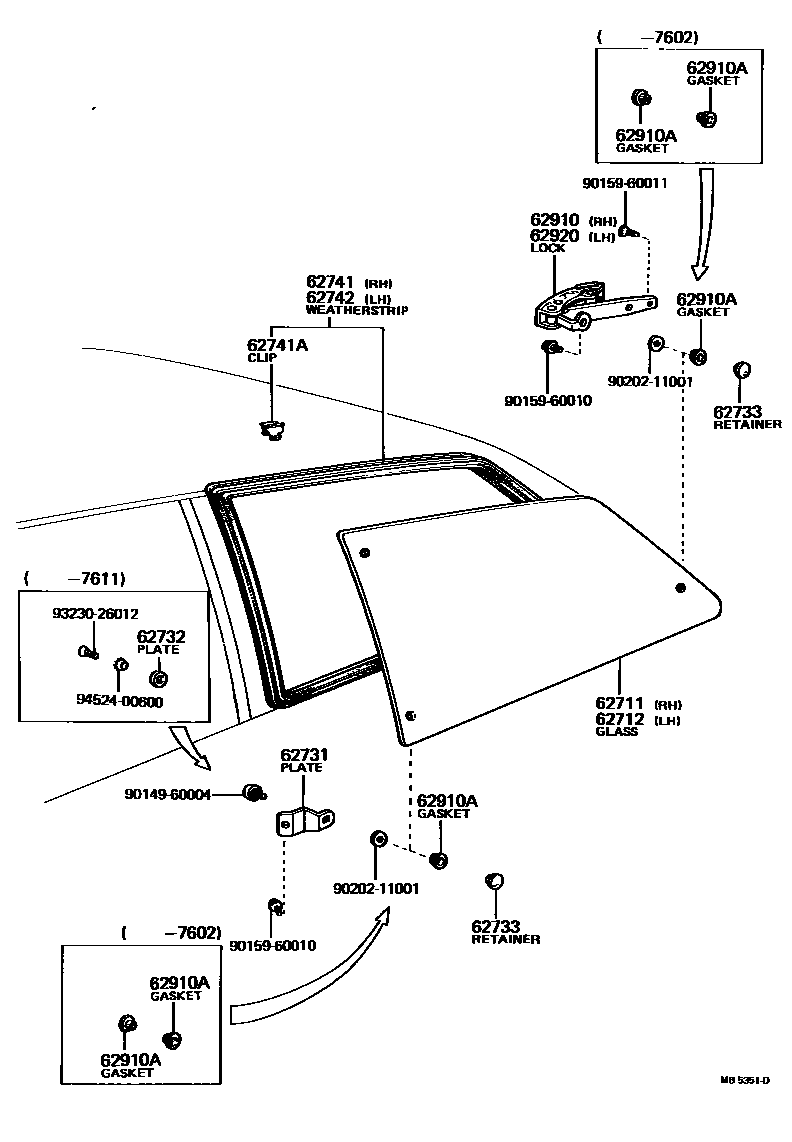

QUARTER WINDOW

0001 1 0002 1 0003 1

62711GLASS, QUARTER WINDOW, RH

main62711-12130iKE30..2D197408-197410

*TEM,T=4.0

sub62711-12131

main62711-12131iKE30,TE31..2D197410-198004

*TEM,T=4.0

sub62711-12141

main62711-12140iKE30..2D..DLX197408-197410

*TT,T=4.0

sub62711-12141

main62711-12141iKE30..2D..DLX197410-197908

*TT,T=4.0

main62711-12160iTE47197408-197410

*TT,T=4.0

sub62711-12161

main62711-12161iTE47197410-197902

*TT,T=4.0

main62711-12210iKE50,TE51..EUR,GEN197603-197908

*TT,T=4.0

main62711-12230iKE5#..K50..ARL197701-197908

*TEM,T=4.0

main62711-13040iKE36..SA;KE36..2DW;KE36..DV..LHD197408-197410

*TEM,T=4.0

sub62711-13041

main62711-13041iKE36..2DW197410-197908

*TEM,T=4.0

main62711-13050iKE36..DV..RHD..GEN197408-198107

*TEM,T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-12130iKE30..2D197408-197410

*TEM,T=4.0

sub62712-12131

main62712-12131iKE30,TE31..2D197410-198004

*TEM,T=4.0

sub62712-12141

main62712-12140iKE30..2D..DLX197408-197410

*TT,T=4.0

sub62712-12141

main62712-12141iKE30..2D..DLX197410-197908

*TT,T=4.0

main62712-12160iTE47197408-197410

*TT,T=4.0

sub62712-12161

main62712-12161iTE47197410-197902

*TT,T=4.0

main62712-12210iKE50,TE51..EUR,GEN197603-197908

*TT,T=4.0

main62712-12230iKE5#..K50..ARL197701-197908

*TEM,T=4.0

main62712-13040iKE36..SA;KE36..2DW;KE36..DV..LHD197408-197410

*TEM,T=4.0

sub62712-13041

main62712-13041iKE36..2DW197410-197908

*TEM,T=4.0

main62712-13050iKE36..DV..RHD..GEN197408-198107

*TEM,T=4.0

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-12040iKE30..2D197408-197410

sub62731-12060

main62731-12050iTE47197408-197410

sub62731-12051

main62731-12051iTE47197410-197601

main62731-12052iKE5#,TE47,51..CP,LB197601-197908

main62731-12060iKE30,TE31..2D197410-197601

main62731-12061iKE30,TE31..2D197601-197701

main62731-12062iKE30,TE31..2D197701-198004

main62731-13020iKE36..SA;KE36..2DW;KE36..DV..LHD197408-197410

sub62731-13021

main62731-13021iKE36..DV..LHD;KE36..2DW..GEN;KE36..2D..(EUR,SA)197410-197601

main62731-13022iKE36..2DW197601-197908

62732PLATE, QUARTER OR SIDE WINDOW HINGE FINISH

main62732-12010iKE36..SA;KE36..DV..LHD;KE30,36,TE47..(CP,SED,WG)..2D197408-197410

main62739-12010iKE36..DV..LHD;KE36..2DW..GEN;KE30,TE31,47..2D;KE36..2D..(EUR,SA)197410-197601

main62739-12011iKE50,TE47,51197601-197611

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62733-12010iKE36..SA;KE36..DV..LHD;KE30,36,TE47..(CP,SED,WG)..2D197408-197410

main62735-12010iKE30,36,5#,TE31,47,51..(CP,LB,SED,WG)..2D197410-198004

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12050iKE30,TE31..2D197408-198004

main62741-12060iTE47197408-197902

main62741-12070iKE5#,TE51..LB197603-197908

main62741-13030iKE36..2DW197408-197908

main62741-13040iKE36..DV..RHD..GEN197408-198107

62741ACLIP, QUARTER WINDOW WEATHERSTRIP

main62759-12010iKE30,36,5#,TE31,47,51..(CP,LB,SED,WG)..2D197408-198004

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-12050iKE30,TE31..2D197408-198004

main62742-12060iTE47197408-197902

main62742-12070iKE5#,TE51..LB197603-197908

main62742-13030iKE36..2DW197408-197908

main62742-13040iKE36..DV..RHD..GEN197408-198107

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-12040iKE30..2D197408-197410

sub62910-12041

main62910-12041iKE30,TE31..2D197410-197601

main62910-12042iKE30,TE31..2D197601-198004

main62910-12050iTE47197408-197410

sub62910-12051

main62910-12051iTE47197410-197601

main62910-12052iKE5#,TE47,51..CP,LB197601-197908

main62910-12060iKE50,TE51..LHD..EUR197701-197908

WEST GERMANY SPEC

main62910-12070iKE30..2D..STD..EUR197701-197908

WEST GERMANY SPEC

main62910-13030iKE36..SA;KE36..2DW;KE36..DV..LHD197408-197410

sub62910-13031

main62910-13031iKE36..DV..LHD;KE36..2DW..GEN;KE36..2D..(EUR,SA)197410-197601

main62910-13032iKE36..2DW197601-197908

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main62734-12010iKE36..SA;KE36..DV..LHD;KE30,36,TE47..(CP,SED,WG)..2D197408-197410

main62737-12010iKE36..DV..LHD;KE36..2DW..GEN;KE30,TE31,47..2D;KE36..2D..(EUR,SA)197410-197602

sub90385-11001

sub90202-11001

main90385-11001iKE30,36,5#,TE31,47,51..(CP,LB,SED,WG)..2D197602-198004

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-12050iTE47197408-197410

sub62910-12051

main62910-12051iTE47197410-197601

main62910-12052iKE5#,TE47,51..CP,LB197601-197908

main62910-12060iKE50,TE51..LHD..EUR197701-197908

WEST GERMANY SPEC

main62920-12010iKE30..2D197408-197410

sub62920-12011

main62920-12011iKE30,TE31..2D197410-197601

main62920-12012iKE30,TE31..2D197601-198004

main62920-12020iKE30..2D..STD..EUR197701-197908

WEST GERMANY SPEC

main62920-13030iKE36..SA;KE36..2DW;KE36..DV..LHD197408-197410

sub62920-13031

main62920-13031iKE36..DV..LHD;KE36..2DW..GEN;KE36..2D..(EUR,SA)197410-197601

main62920-13032iKE36..2DW197601-197908

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9020211001

main90202-11001

9323026012

main93230-26012

9452400600

main94524-00600

17 parts on this diagram · 3 diagrams in section
