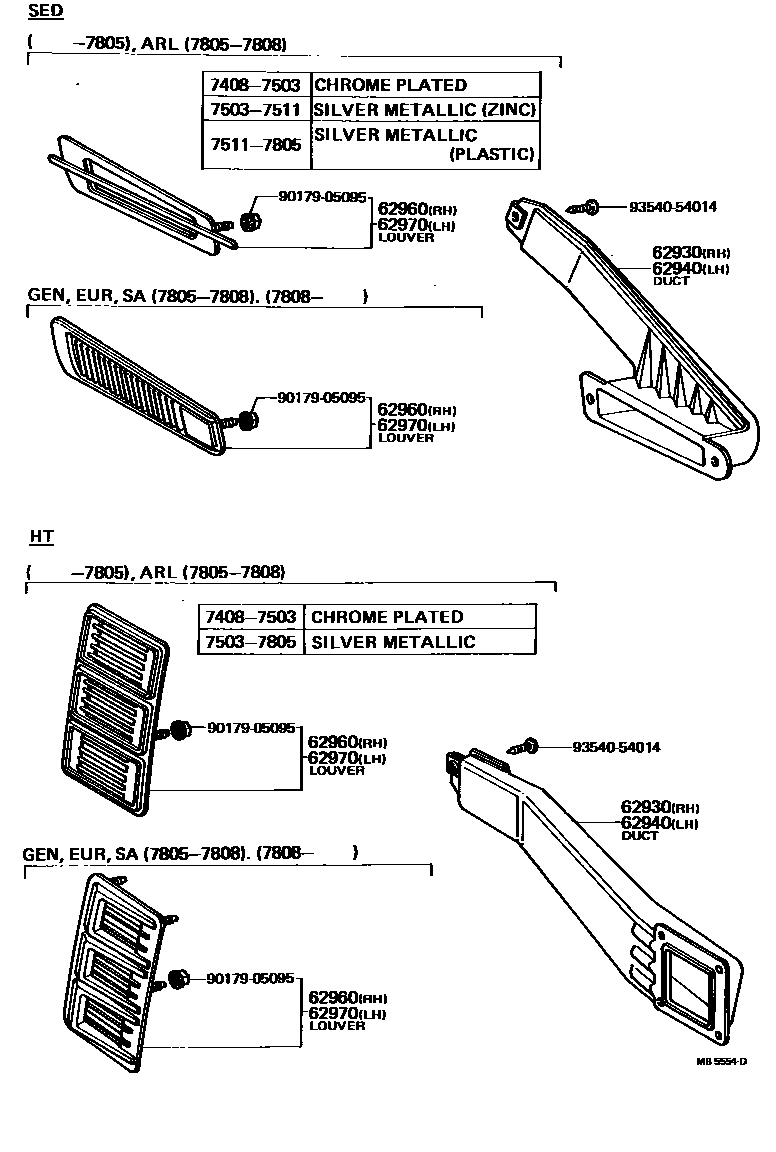

ROOF SIDE VENTILATOR

0001 1 0002 1 0003 1

62930DUCT ASSY, ROOF SIDE VENT, RH

main62930-12010iKE30,55,TE31..SED197408-198107

main62930-12020iTE47197408-197902

main62930-12030iKE35,TE37197408-197612

main62930-12031iKE35,55,TE37..HT197612-198107

main62931-13030iKE36197408-197511

62940DUCT ASSY, ROOF SIDE VENT, LH

main62932-13030iKE36,38197408-198107

main62940-12010iKE30,55,TE31..SED197408-198107

main62940-12020iTE47197408-197902

main62940-12030iKE35,TE37197408-197612

main62940-12031iKE35,55,TE37..HT197612-198107

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62905-19025iKE30197408-197503

main62905-19026iKE30,TE31197503-197512

main62905-19027iKE30,TE31197512-197805

main62905-19035-03iKE35197408-197503

SILVER-M,GRAY

main62905-19035-08iKE35197408-197503

WHITE,IVORY

main62905-19035-13iKE35197408-197503

DARK GRAY-M,GRAY

main62905-19036-03iKE35,TE37197503-197612

SILVER-M,GRAY

main62905-19036-08iKE35,TE37197503-197612

WHITE,IVORY

main62905-19036-13iKE35,TE37197503-197612

DARK GRAY-M,GRAY

main62905-19037-03iKE35,TE37197612-197701

SILVER-M,GRAY

main62905-19037-08iKE35,TE37197612-197701

WHITE,IVORY

main62905-19037-13iKE35,TE37197612-197701

DARK GRAY-M,GRAY

main62905-19037-18iKE35,TE37197701-197808

WHITE,IVORY

main62905-19037-23iKE35..ARL197701-197808

SILVER-M,GRAY

main62905-19037-33iKE35..ARL197701-197808

DARK GRAY-M,GRAY

main62905-19125iKE35,55..HT197805-198107

main62905-19145iKE30,55,TE31..SED197805-198107

main62905-19175iTE37197805-198004

main62905-19195iKE30..GEN197805-197908

BLACK

main62951-19135iTE47197408-197701

sub62951-19136

main62951-19136iTE47197701-197805

main62951-19137iTE47197805-197902

main62951-19155iKE36197408-197511

sub62951-19156

main62951-19156iKE36,38197511-198105

main62951-19205iKE50,TE51..DLX197603-197805

main62951-19206iKE5#,TE51..LB..DLX197805-197908

main62951-19215iTE51..GSL197603-197805

main62951-19216iTE51..GSL197805-197908

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62906-19025iKE30197408-197503

main62906-19026iKE30,TE31197503-197512

main62906-19027iKE30,TE31197512-197805

main62906-19035-03iKE35197408-197503

SILVER-M,GRAY

main62906-19035-08iKE35197408-197503

WHITE,IVORY

main62906-19035-13iKE35197408-197503

DARK GRAY-M,GRAY

main62906-19036-03iKE35,TE37197503-197612

SILVER-M,GRAY

main62906-19036-08iKE35,TE37197503-197612

WHITE,IVORY

main62906-19036-13iKE35,TE37197503-197612

DARK GRAY-M,GRAY

main62906-19037-03iKE35,TE37197612-197701

SILVER-M,GRAY

main62906-19037-08iKE35,TE37197612-197701

WHITE,IVORY

main62906-19037-13iKE35,TE37197612-197701

DARK GRAY-M,GRAY

main62906-19037-18iKE35..ARL197701-197808

WHITE,IVORY

main62906-19037-23iKE35,TE37197701-197808

SILVER-M,GRAY

main62906-19037-33iKE35..ARL197701-197808

DARK GRAY-M,GRAY

main62906-19105iKE35,55..HT197805-198107

main62906-19125iKE30,55,TE31..SED197805-198107

main62906-19155iTE37197805-198004

main62906-19175iKE30..GEN197805-197908

BLACK

main62951-19135iTE47197408-197701

sub62951-19136

main62951-19136iTE47197701-197805

main62951-19137iTE47197805-197902

main62952-19125iKE36,38197408-198107

main62952-19155iKE50,TE51..DLX197603-197805

main62952-19156iKE50,TE51..DLX197805-197908

main62952-19165iTE51..GSL197603-197805

main62952-19166iTE51..GSL197805-197908

9017905095

main90179-05095

9354054014

main93540-54014

6 parts on this diagram · 3 diagrams in section
