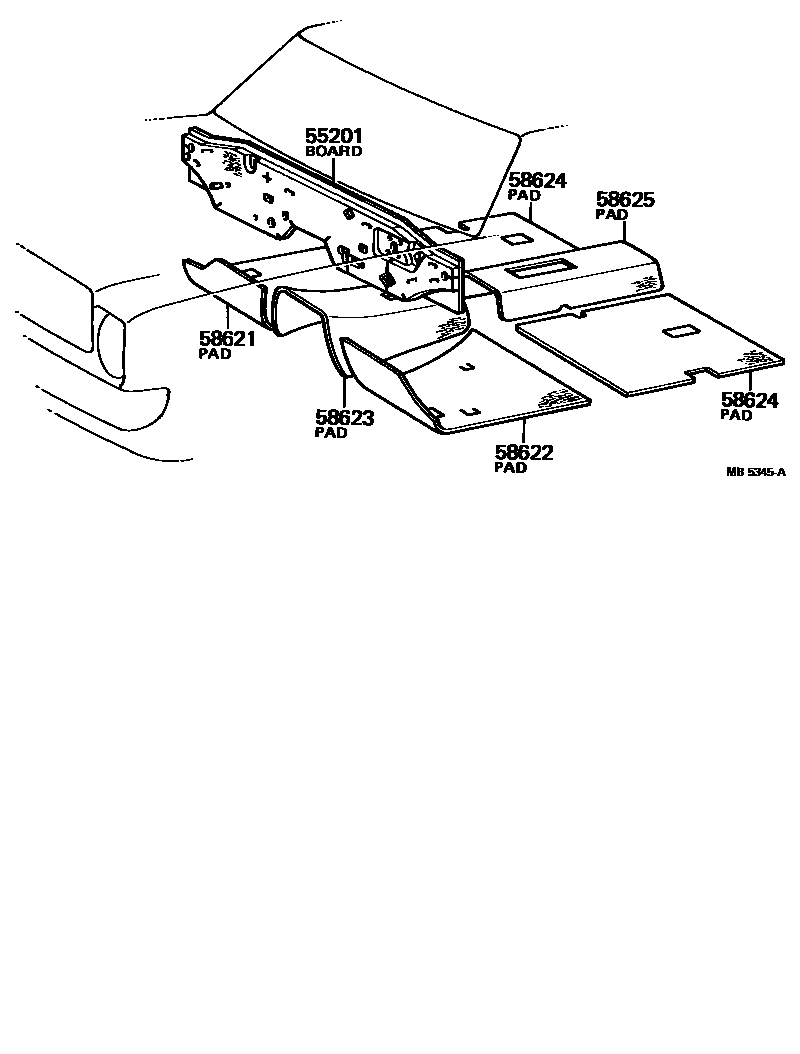

DASH SILENCER BOARD & FLOOR SILENCER PAD

55201BOARD SUB-ASSY, DASH PANEL SILENCER

main55210-12020iTE31,51..RHD..A40197408-197701

main55210-12030iTE3#,47,51..RHD..MTM197408-197701

main55210-12031iKE3#,50,TE3#,47,51..RHD197701-197708

main55210-12032iKE3#,5#,TE3#,47,51..RHD197708-198107

main55210-12050iTE47,51..LHD..MTM197408-197608

main55210-12051iTE47,51..LHD..MTM197608-197701

main55210-12060iKE30,35..LHD..A20197408-197701

main55210-12061iKE30,35..LHD..A20197701-197708

main55210-12062iKE30,35..LHD..A20197708-197908

main55210-12070iKE3#,50..LHD..MTM197408-197701

main55210-12071iKE3#,50..LHD..MTM197701-197708

main55210-12072iKE30,35,36,50..LHD..MTM197708-198002

main55210-12080iTE51..LHD..A40197603-197608

main55210-12081iTE51..LHD..A40197608-197701

main55210-12082iTE47,51..LHD197701-197708

main55210-12083iTE47,51..LHD197708-197908

58621PAD, FLOOR SILENCER, FRONT RH

main58621-12030iKE36..STD;KE30..4D..STD;KE30..A20..2D..ARL;KE30..2D..STD..(EUR,GEN)197408-197701

58622PAD, FLOOR SILENCER, FRONT LH

main58621-12030iKE36..STD;KE30..4D..STD;KE30..A20..2D..ARL;KE30..2D..STD..(EUR,GEN)197408-197701

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-12050iKE36..STD;KE30..4D..STD;KE30..A20..2D..ARL;KE30..2D..STD..(EUR,GEN)197408-197701

58624PAD, FLOOR SILENCER, REAR SIDE

main58624-12040iKE3#,50,TE3#,47,51197408-197701

58625PAD, FLOOR SILENCER, REAR CENTER

main58626-12010iKE3#,50,TE3#,47,51197408-197701

6 parts on this diagram · 1 diagram in section
