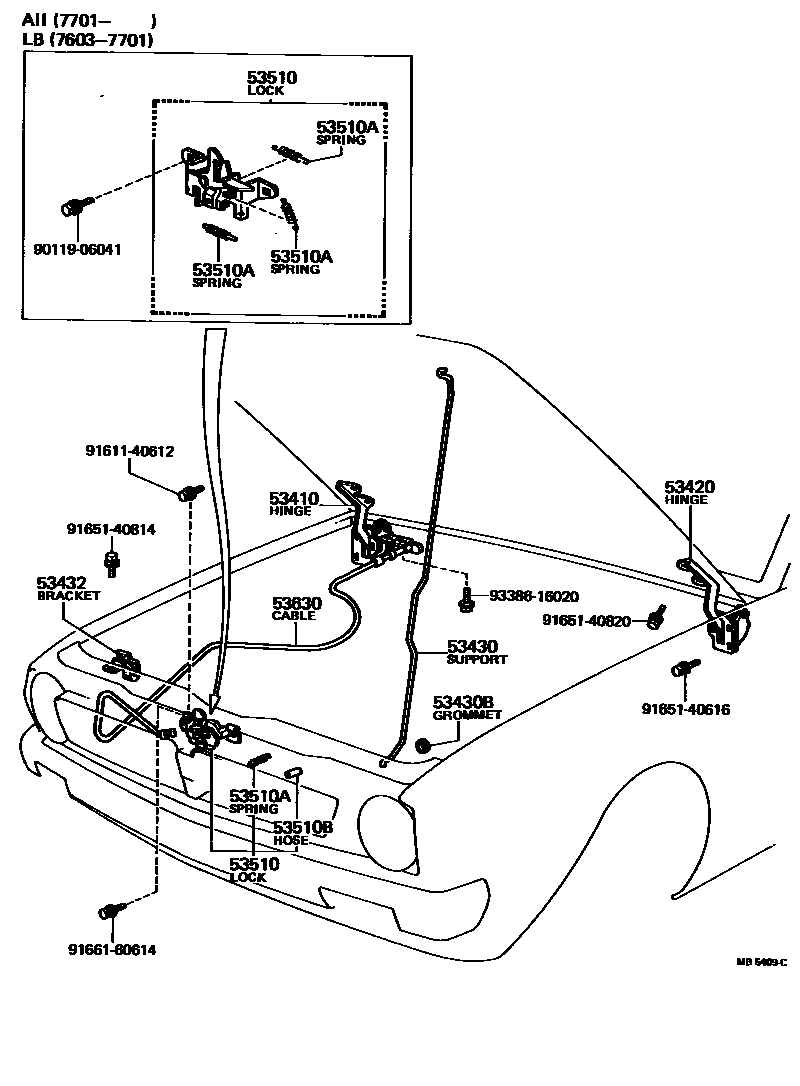

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-12020iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main53410-12030iKE5#,TE47,51..CP,LB197408-197908

53420HINGE ASSY, HOOD, LH

main53420-12020iKE3#,55,TE3#..DV,HT,SED,WG197408-198107

main53420-12030iKE5#,TE47,51..CP,LB197408-197908

53430SUPPORT ASSY, HOOD

main53451-12010iKE3#,TE3#,47197408-197511

main53451-12011iKE3#,5#,TE3#,47,51197511-198107

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15002iKE3#,5#,TE3#,51197902-198107

main90480-15296iKE3#,5#,TE3#,47,51197408-197902

53432BRACKET, HOOD SUPPORT CLAMP

main53455-12010iKE3#,TE3#,47197408-197509

sub53455-12011

main53455-12011iKE3#,5#,TE3#,47,51197509-198107

53510LOCK ASSY, HOOD

main53510-12010iTE3#197503-197701

main53510-12011iTE3#197701-197708

main53510-12012iKE30,36,TE3#..SA197708-198107

main53510-12020iTE47..RHD197408-197701

main53510-12030iKE50,TE51..RHD197603-197701

main53510-12050iTE47..LHD197408-197701

main53510-12060iKE3#..RHD197408-197701

main53510-12061iKE3#..RHD197701-197708

main53510-12062iKE36..SA197708-197808

main53510-12070iKE3#..LHD197408-197701

main53510-12081iKE3#..LHD197701-197708

main53510-12082iKE3#..LHD197708-197805

main53510-12090iKE50,TE51..LHD197603-197701

main53510-12100iTE47..RHD197701-197708

main53510-12101iTE47..RHD197708-197902

main53510-12110iTE47..LHD197701-197708

main53510-12111iTE47..LHD197708-197902

main53510-12120iKE50,TE51..RHD197701-197708

main53510-12121iKE5#,TE51..LB..RHD197708-197908

main53510-12130iKE50,TE51..LHD197701-197708

main53510-12131iKE50,TE51..LHD197708-197908

main53510-12140iKE30,35,36..RHD..(EUR,GEN)197805-198107

main53510-12150iKE30,35,36..LHD197805-198002

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09007iKE3#,5#,TE3#,47,51197701-197906

L=35

main90506-09008iKE3#,5#,TE3#,51197906-198107

WD=0.9,CW=21.25,WD=0.9

main90506-10196iKE3#,TE3#,47197408-197701

main90506-10486iKE50,TE51197603-197701

L=35

main90506-10487iKE50,TE51197603-198107

L=43

main90506-20009iKE5#,TE51..LB197611-197908

L=60

main90506-23004iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197603-198107

L=65

sub90506-20009

53510BHOSE(FOR HOOD LOCK)

main90446-12209iKE3#,TE3#,47197408-197701

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12090iKE3#,TE3#,47197408-197701

main53630-12091iKE3#,50,TE3#,47,51197701-197708

main53630-12092iKE3#,5#,TE3#,47,51197708-198107

main53630-12100iKE50,TE51197603-197701

9011906041

main90119-06041

9161140612

main91611-40612

9165140616

main91651-40616

9165140814

main91651-40814

9165140820

main91651-40820

9166160614

main91661-60614

9338616020

main93386-16020

16 parts on this diagram · 2 diagrams in section
