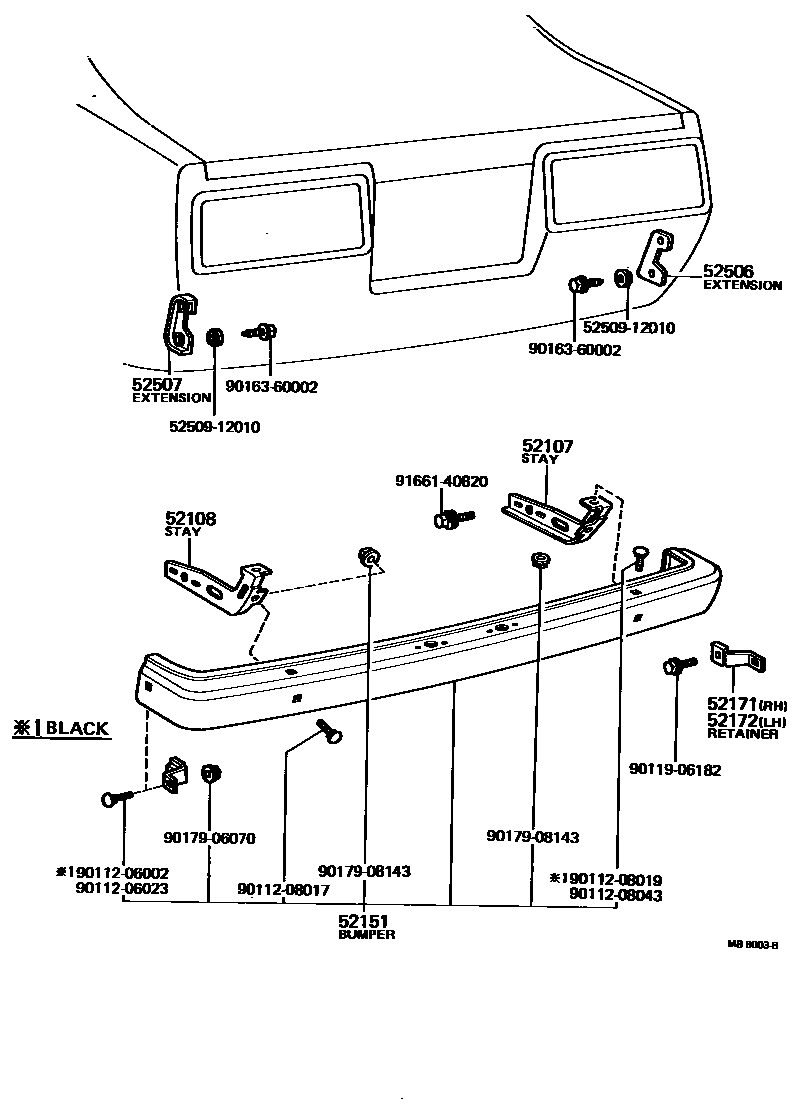

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0007 1 0008 1 0009 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-12040iKE30..GEN197805-197908

LARGE BUMPER

main52015-12040iTE3#197904-198004

main52015-12040iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE SPEC

main52015-13020iKE36,38197408-198107

main52181-12070iKE30,35,55,TE3#..HT,SED197408-198107

main52181-12080iTE47197408-197902

main52181-12100iKE5#,TE51..LB197603-197908

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-12040iKE35..RHD..K40..DLX..GEN197805-197908

LARGE BUMPER

main52016-12040iTE3#197904-198004

main52016-12040iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE SPEC

main52016-13020iKE36,38197408-198107

main52182-12070iKE30,35,55..HT,SED197408-198107

main52182-12080iTE47197408-197902

main52182-12100iKE5#,TE51..LB197603-197908

52151BUMPER ASSY, REAR

main52151-12160iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE SPEC

main52151-12160iKE35..RHD..K40..DLX..GEN197805-197908

LARGE BUMPER

main52151-12160iTE3#..2TB197904-198004

main52151-19265iKE30,35,55..HT,SED197408-198107

sub52151-12100

main52151-19275iKE5#,TE47,51..CP,LB197408-197908

sub52151-12110

main52151-19285iKE36,38197408-198107

sub52151-13040

main52151-19505iTE31..T40197904-198004

sub52151-12180

main52151-19515iKE30..GEN197805-197908

BLACK

sub52151-12190

52171RETAINER, REAR BUMPER SIDE, RH

main52185-12020iKE30,35,55,TE3#..HT,SED197408-198107

main52185-12030iTE47197408-197902

main52185-12050iKE5#,TE51..LB197603-197908

52172RETAINER, REAR BUMPER SIDE, LH

main52185-12050iKE5#,TE51..LB197603-197908

main52186-12020iKE30,35,55..HT,SED197408-198107

main52186-12030iTE47197408-197902

52506EXTENSION SUB-ASSY, REAR BUMPER, RH

main52045-13010iKE36,38197408-198107

main52106-19085iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE SPEC

main52106-19085iKE35..RHD..K40..DLX..GEN197805-197908

LARGE BUMPER

main52106-19085iTE3#197904-198004

main52405-19035iTE47197408-197902

main52405-19065iKE5#,TE51..LB197603-197908

main52581-12010iKE30,55..SED197408-198107

main52581-12020iKE35,55,TE37..HT197408-198107

52507EXTENSION SUB-ASSY, REAR BUMPER, LH

main52046-13010iKE36,38197408-198107

main52107-19115iKE35..RHD..K40..DLX..GEN197805-197908

LARGE BUMPER

main52107-19115iTE3#197904-198004

main52107-19115iKE35..LHD..K40..SR..GEN197812-197908

LARGE BUMPER,PHILIPPINE SPEC

main52406-19035iTE47197408-197902

main52406-19055iKE5#,TE51..LB197603-197908

main52582-12010iKE30,55,TE31..SED197408-198107

main52582-12020iKE35,55..HT197408-198107

5250912010

main52509-12010

9011206002

main90112-06002

9011206023

main90112-06023

9011208017

main90112-08017

9011208019

main90112-08019

9011208043

main90112-08043

9011906182

main90119-06182

9016360002

main90163-60002

9017906070

main90179-06070

9017908143

main90179-08143

9166140820

main91661-40820

18 parts on this diagram · 6 diagrams in section
