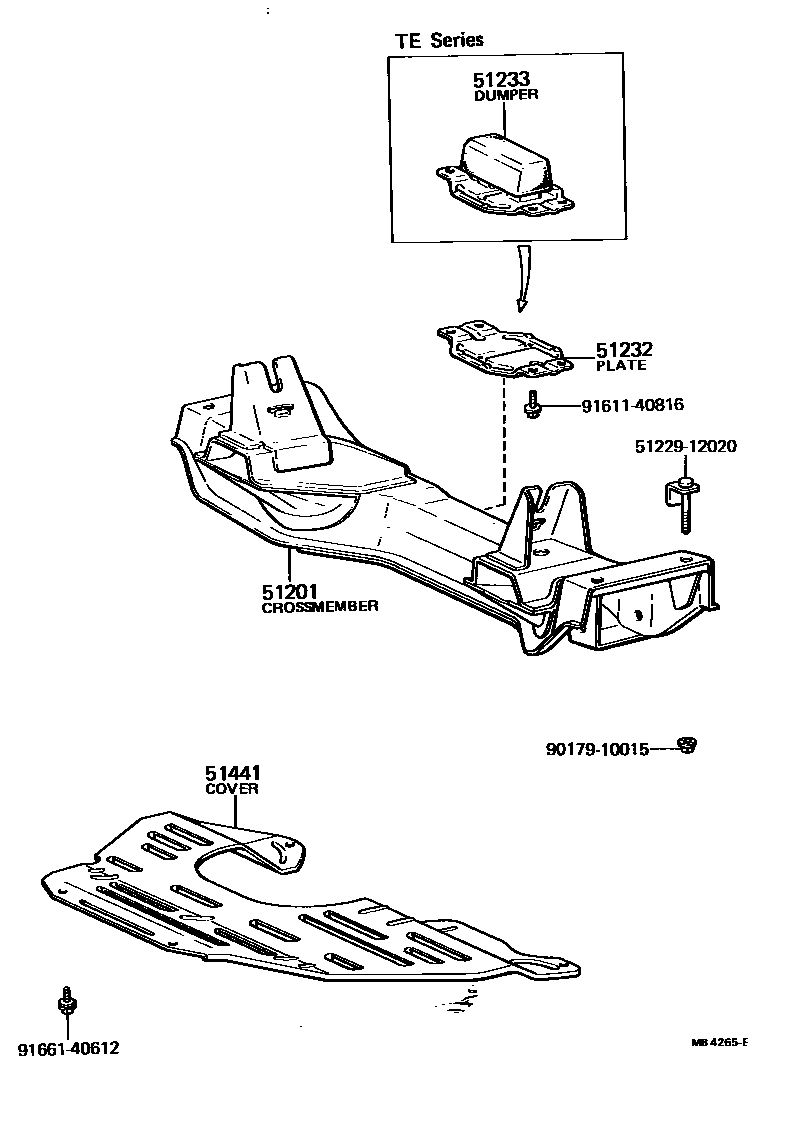

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12050iKE3#,5#197408-198107

main51201-12060iTE3#,47,51197408-198004

51232PLATE, FRONT SUSPENSION MEMBER

main51228-12020iKE3#,50,TE3#,47,51197506-197606

main51228-12030iKE3#,50,TE3#,47,51197606-197701

51233DUMPER, FRONT SUSPENSION MEMBER

main51206-12010iTE3#,47197408-197506

51441COVER, ENGINE UNDER, NO.1

main51441-12040iKE3#,50197408-197711

main51441-12050iTE3#,47,51197408-198004

main51441-12060iKE3#,50197711-197805

main51441-12061iKE3#,5#197805-198107

5122912020BOLT, SUSPENSION MEMBER SET

main51229-12020

9017910015

main90179-10015

9161140816

main91611-40816

9166140612

main91661-40612

8 parts on this diagram · 1 diagram in section
