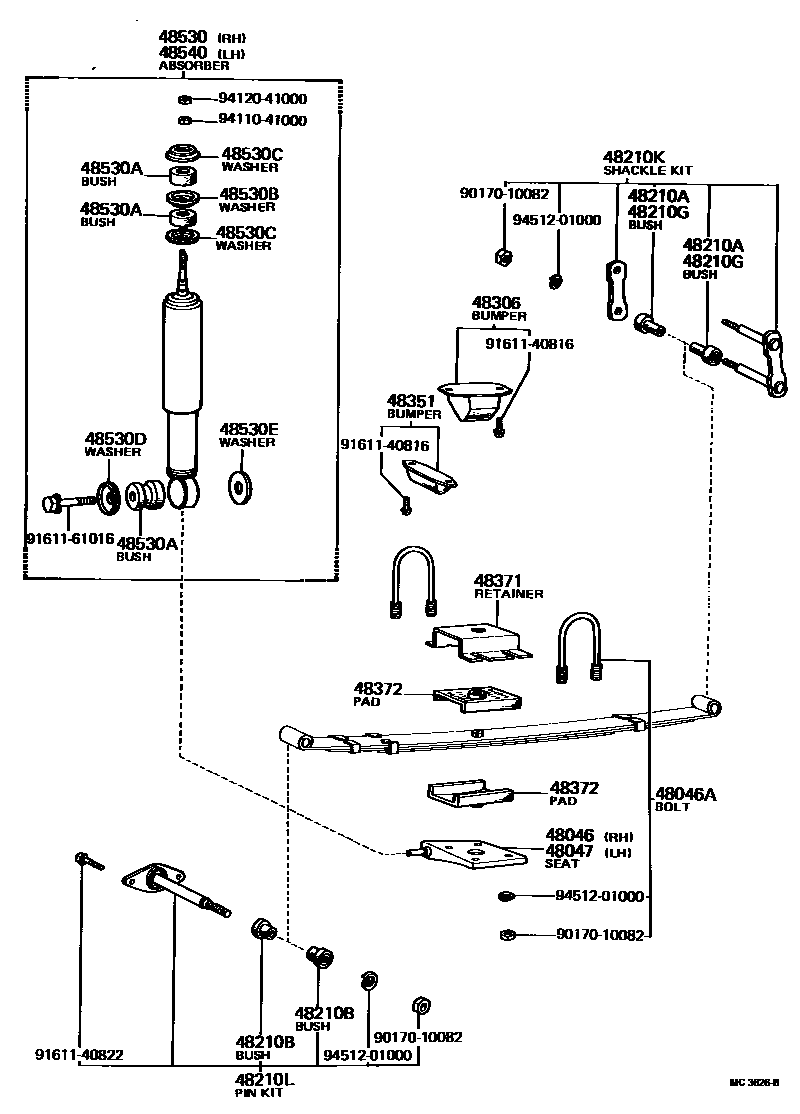

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1 0004 1 0007 1 0009 1 0011 1 0013 1 0014 1 0015 1 0016 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-12010iKE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD197408-198107

main48046-13040iKE36,38197408-198107

main48046-20040iTE47,51..GSL,GT197408-197908

48046ABOLT, U(FOR REAR SPRING)

main90118-10123iTE47..GT197408-197603

sub90117-10003

sub90170-10208

sub94512-01000

main90118-10127iKE30,35,55,TE3#,47..DLX,LT,SR,ST,STD197511-198107

sub90117-10200

sub90170-10082

sub94512-01000

main90118-10128iTE3#,47..DLX,LT,SR,ST,STD197408-197701

sub90118-10127

main90118-10129iKE36197408-197506

sub90117-10202

sub90170-10082

sub94512-01000

main90118-10138iKE36,38197506-198107

sub90118-10129

main90118-10145iTE47,51..GSL,GT197603-197908

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-12010iKE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD197408-198107

main48047-13040iKE36,38197408-198107

main48047-20040iTE47,51..GSL,GT197408-197908

48210SPRING ASSY, REAR RH

main48210-12111iKE30,35..RHD197511-198107

sub48210-12310

main48210-12111iKE30,35..LHD..EUG197710-197801

WEST GERMANY SPEC

sub48210-12310

main48210-12130iTE3#,47..DLX,LT,SR,ST,STD197408-197506

sub48210-12131

main48210-12132iTE47..GT197701-197902

main48210-12140iTE47..GT197408-197701

main48210-12160iKE30,35197408-197506

sub48210-12161

main48210-12161iKE30,35197506-197701

main48210-12220iKE50,TE51197603-197608

main48210-12240iKE5#,TE51..LB..(ARL,GEN)197608-197908

sub48210-12260

main48210-12260iKE50,TE51..EUR197608-197801

main48210-12261iKE50,TE51..EUR197801-197908

W/BUSH

main48210-12300iTE3#,47..DLX,LT,SR,ST,STD197701-197801

main48210-12310iKE30,35..RHD197710-198107

main48210-12320iKE30,35..LHD..EUR197703-197801

main48210-12321iKE30,35..LHD..EUR197801-197908

W/BUSH

main48210-12350iKE30,35..RHD..EUG197801-197908

W/BUSH

main48210-12350iKE30,35..LHD..EUG197801-197908

WEST GERMANY SPEC,W/BUSH

main48210-12380iTE47..GT..EUG197801-197902

W/BUSH

main48210-12390iTE47..(LT,ST)..EUG197801-197902

W/BUSH

main48210-13050iKE36197408-197506

main48210-13051iKE36197506-197803

main48210-13110iKE36,38197803-198107

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-13003iKE30,35,5#,TE3#,47,51197703-198107

main90385-13071iKE3#,50,TE3#,47,51197408-198107

48210BBUSH(FOR REAR SPRING PIN)

main90385-13002iKE36,38197803-198107

main90385-13065iKE30,35,50,TE3#,47,51197408-198107

main90385-17069iKE36197408-197506

main90385-17072iKE36197506-197803

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-13003iKE30,35,50,TE3#,47,51197703-198107

main90385-13071iKE3#,50,TE3#,47,51197408-198107

48210KSHACKLE KIT, REAR SPRING

main04483-12020iKE36,38197408-198107

main04483-12040iKE30,35,50,TE3#,47,51197703-198107

main04483-12050iKE30,35,50,TE47,51..EUR197801-197908

48210LPIN KIT, REAR SPRING

main04484-12030iKE30,35,50,TE3#,47,51197408-198107

main04484-12040iKE30,35,50,TE47,51..EUR197801-197802

sub48409-12031

main04484-12050iKE36,38197803-198107

main04484-13010iKE36197408-197506

main04484-13011iKE36197506-197803

48306BUMPER SUB-ASSY, REAR SPRING

main48306-19025iKE30,35,50,TE3#,47,51197408-197609

main48306-19035iKE30,35,5#,TE3#,47,51197609-198107

main48341-19015iKE36197408-197506

sub48341-19016

main48341-19016iKE36,38197506-198107

48351BUMPER, DIFFERENTIAL CARRIER

main48351-19015iTE47,51..GSL,GT197408-197908

main48351-19025iKE30..4D..ARL197607-197609

H=44

sub48351-12020

main48351-19025iTE3#,47,51..DLX,LT,SR,ST,STD197408-198107

sub48351-12020

main48351-29015iKE3#,50..EUR,GEN,SA197408-198107

sub48351-20020

main48351-29015iKE36197607-197609

H=30

sub48351-20020

48371RETAINER, REAR SPRING PAD

main48371-12022iKE30,35,55..HT,SED197511-198107

main48371-12031iTE3#,47..DLX,LT,SR,ST,STD197408-197908

main48371-12040iTE51..GSL197408-197908

main48371-12050iTE3#,47..DLX,LT,SR,ST,STD197506-197701

sub48371-12031

main48371-12060iKE5#,TE51..LB..DLX197603-197908

main48371-13010iKE36,38197506-198107

main48371-13050iKE36197408-197506

main48371-20080iTE47..GT197701-197902

48372PAD, REAR SPRING

main48372-22010iKE3#,5#,TE3#,47,51197408-198107

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19295iTE47..(LT,ST)..GEN197711-197902

sub48531-19315

main48531-19305iKE30,35197408-197511

sub48531-19306

main48531-19315iTE3#,47197408-198107

sub48531-19316

main48531-19325iKE36,38197408-198107

sub48531-19326

main48531-19355iTE51..GSL197506-198004

sub48531-12130

main48531-19365iKE50,TE51..DLX197603-197908

sub48531-19355

main48531-19375iTE51..GSL197603-197608

sub48531-19355

main48531-19385iTE47..GT197701-197902

sub48531-19386

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16060iKE3#,5#,TE3#,47,51197408-198107

LWR

sub90385-16004

main90948-01002iKE36197408-197803

T=15,OD=30,ID=10,UPR

main90948-01003iKE30,35,50,TE3#,47,51197408-197803

UPR

main90948-01003iKE3#,5#,TE3#,47,51197803-198107

T=15,OD=30,ID=10,UPR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02005iKE36197408-197803

T=5.5,OD=32,ID=13

main90948-02007iKE30,35,50,TE3#,47,51197408-197803

main90948-02007iKE3#,5#,TE3#,47,51197803-198107

T=6.5,OD=38,ID=13

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002iKE30,35,50,TE3#,47,51197408-197803

main90948-02002iKE3#,5#,TE3#,47,51197803-198107

T=6.0,OD=38,ID=10.5

main90948-02004iKE36197408-197803

T=4.5,OD=32,ID=10.5

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004iKE36,38197408-198107

main90948-03012iKE30,35,5#,TE3#,47,51197408-198107

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iKE30,35,5#,TE3#,47,51197408-198107

main90948-03012iKE36,38197408-198107

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19295iTE47..(LT,ST)..GEN197711-197902

sub48531-19315

main48531-19305iKE30,35197408-197511

sub48531-19306

main48531-19315iTE47..GT197408-198107

sub48531-19316

main48531-19325iKE36,38197408-198107

sub48531-19326

main48531-19355iTE51..GSL197506-198004

sub48531-12130

main48531-19365iKE5#..LB197603-197908

sub48531-19355

main48531-19375iTE51..GSL197603-197608

sub48531-19355

main48531-19385iTE47..GT197701-197902

sub48531-19386

9017010082

main90170-10082

9161140816

main91611-40816

9161140822

main91611-40822

9161161016

main91611-61016

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

27 parts on this diagram · 10 diagrams in section
