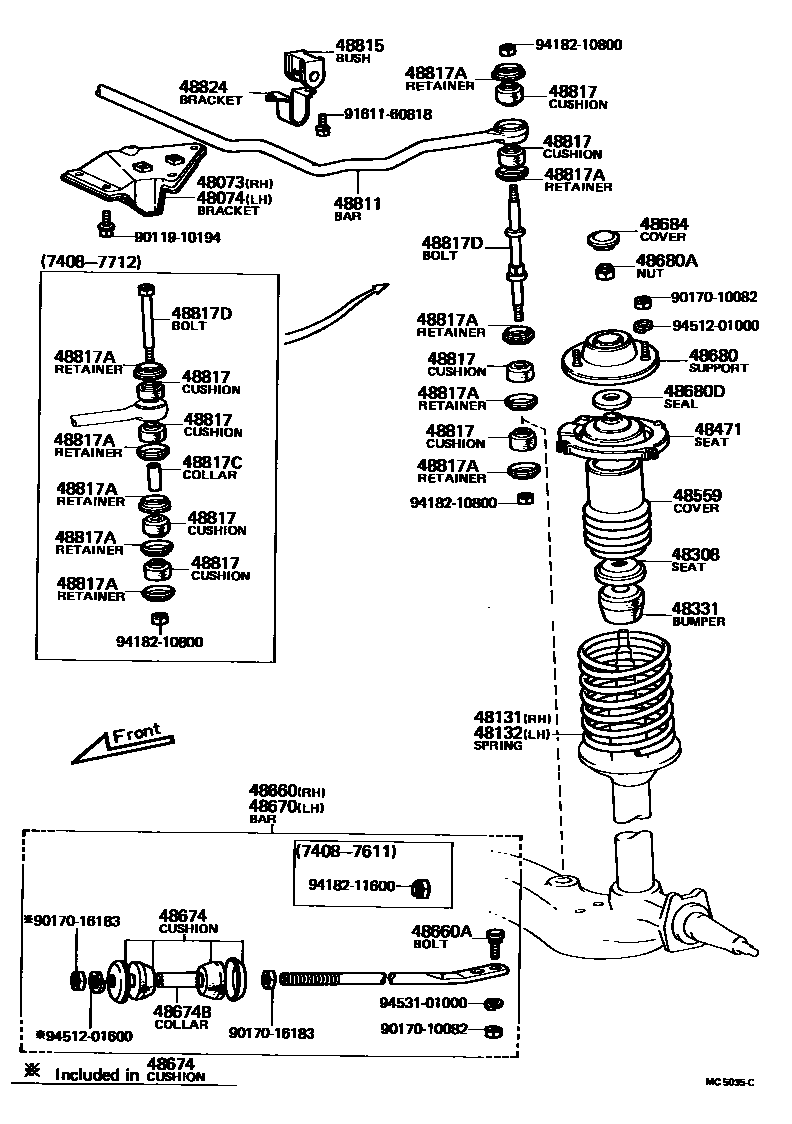

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0004 1

48073BRACKET SUB-ASSY, STRUT BAR, RH

main57107-12010iKE3#,5#,TE3#,47,51197408-198107

48074BRACKET SUB-ASSY, STRUT BAR, LH

main57108-12010iKE3#,5#,TE3#,47,51197408-198107

48131SPRING, FRONT COIL, RH

main48131-12200iKE30,35197408-197511

main48131-12201iKE30,35197511-197602

main48131-12221iTE3#,47..(DLX,LT,SR,ST,STD)..(GEN,SA)197711-198004

main48131-12230iTE3#,47..DLX,LT,SR,ST,STD197408-197511

main48131-12231iTE3#,47..DLX,LT,SR,ST,STD197511-197711

main48131-12240iTE47..GT197408-197701

main48131-12241iTE47..GT197701-197902

main48131-12260iKE36197408-197511

sub48131-12250

main48131-12430iKE5#..LB..RHD197801-197908

main48131-12450iTE51..RHD197801-197908

main48131-12480iKE30,35..LHD..GEN197703-197908

WEST GERMANY SPEC

main48131-12540iKE30..SA197711-198107

main48131-12590iKE50..LHD197801-197908

main48131-12600iTE51..LHD197801-197908

main48131-13050iKE36,38197511-198107

48132SPRING, FRONT COIL, LH

main48131-12171iKE36..LHD197602-197611

main48131-12200iKE30,35197408-197511

main48131-12201iKE30,35197511-197703

main48131-12221iTE3#,47..(DLX,LT,SR,ST,STD)..(GEN,SA)197711-198004

main48131-12230iTE3#,47..DLX,LT,SR,ST,STD197408-197511

main48131-12231iTE47..(LT,ST)..EUG197711-197902

main48131-12240iTE47..GT197408-197701

main48131-12241iTE47..GT197701-197902

main48131-12260iKE36197408-197511

sub48131-12250

main48131-12430iKE5#..LB..RHD197801-197908

main48131-12450iTE51..RHD197801-197908

main48131-12540iKE30..SA197711-198004

main48131-12570iKE30,35..LHD..EUR197703-197908

main48131-12600iKE50..LHD197801-197908

main48131-12610iTE51..LHD197801-197908

main48131-13050iKE36,38..RHD197602-198107

48308SEAT SUB-ASSY, BUMPER FRONT

main48334-12020×2iKE3#,5#,TE3#,47,51197408-198107

48331BUMPER, FRONT SPRING, NO.1

main48331-12030×2iKE3#,55..ARL,GEN197908-198107

main48331-12050×2iKE30,TE3#..SA197408-197908

48471SEAT, FRONT SPRING, UPPER

main48044-12030×2iKE3#,5#,TE3#,47,51197408-198107

48559COVER, SHOCK ABSORBER, DUST

main48559-12030×2iKE3#,5#,TE3#,47,51197408-198107

48660BAR ASSY, STRUT, RH

main48660-19045iKE3#,TE3#,47197408-197508

main48660-19046iKE3#,5#,TE3#,47,51197508-198107

48660ABOLT(FOR STRUT BAR SETTING)

main90114-10075×4iKE3#,5#,TE3#,47,51197408-198107

48670BAR ASSY, STRUT, LH

main48670-19045iKE3#,TE3#,47197408-197508

main48670-19046iKE3#,5#,TE3#,47,51197508-198107

48674CUSHION, STRUT BAR

main48674-19055×2iKE3#,TE3#,47197408-197508

sub48674-19057

main48674-19056×2iKE3#,50,TE3#,47,51197508-197611

main48674-19058×2iKE3#,5#,TE3#,47,51197611-198107

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-16108×2iKE3#,5#,TE3#,47,51197408-198107

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-12050×2iKE3#,5#,TE3#,47,51197408-198107

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400×2iKE3#,5#,TE3#,47,51197408-198107

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049×2iKE3#,5#,TE3#,47,51197408-198107

48684COVER, BEARING DUST

main48684-10010×2iKE3#,5#,TE3#,47,51197408-198107

48811BAR, STABILIZER, FRONT

main48811-12130iTE47197408-197412

OD=21

main48811-12150iKE3#..RHD..(ARL,EUR,GEN)197701-197708

OD=19

main48811-12151iKE30,35,36..ARL,EUR,GEN197708-198107

OD=19

main48811-12170iTE3#,47197412-197708

OD=21

main48811-12171iTE47..GT..GEN197711-197902

OD=21

main48811-12180iKE36..SA197701-197708

OD=17

main48811-12181iKE36..SA197708-197711

OD=17

main48811-12190iKE3#..LHD197408-197708

OD=19

main48811-12210iKE50,TE51197603-197708

OD=18

main48811-12211iKE5#,TE51..LB197708-198107

OD=18

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12050×2iKE30,36,TE3#..SA197711-198107

main48815-12060×2iTE47..GT..GEN197711-197902

main48815-12080×2iKE3#197408-197701

main48815-12090×2iKE5#,TE51..LB197603-198107

48817CUSHION, FRONT STABILIZER

main48817-10010×8iKE3#,5#,TE3#,47,51197408-198107

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02024×8iKE3#,5#,TE3#,47,51197408-198107

T=1.2

main90948-02025×2iKE3#,5#,TE3#,47,51197408-198107

T=1.0

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09057×2iKE3#,50,TE3#,47,51197408-197712

48817DBOLT(FOR FRONT STABILIZER)

main48818-12010×2iKE3#,50,TE3#,47,51197712-197805

main48819-12010×2iKE3#,5#,TE3#,47,51197805-198107

main90101-08274×2iKE3#,50,TE3#,47,51197408-197712

48824BRACKET, STABILIZER, FRONT

main48824-12030×2iKE3#,5#,TE3#,47,51197408-198107

sub48824-14030

9011910194

main90119-10194

9017010082

main90170-10082

9017016183

main90170-16183

9161160818

main91611-60818

9418210800

main94182-10800

9418211600

main94182-11600

9451201000

main94512-01000

9451201600

main94512-01600

9453101000

main94531-01000

33 parts on this diagram · 3 diagrams in section
