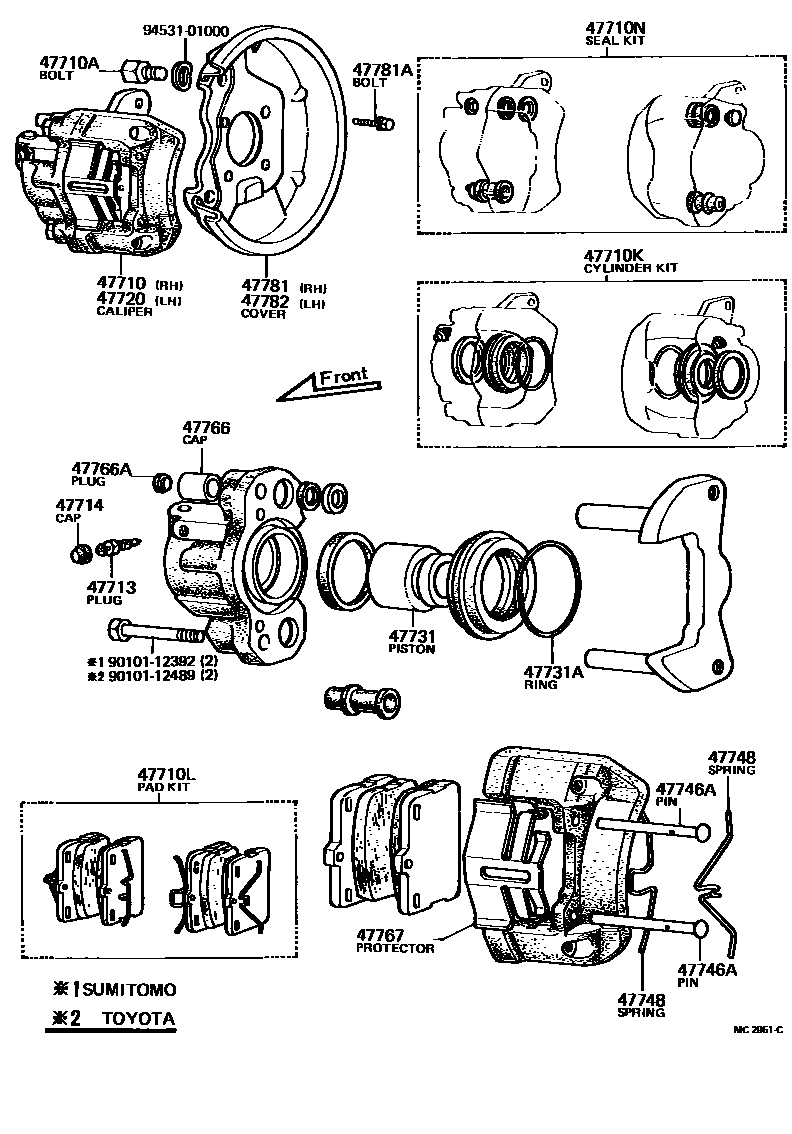

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-12054iTE51197603-197611

main47710-12054iTE47197408-197611

EUROPE SPEC,S31

main47710-12100iTE3#,47197408-197611

main47710-12110iKE3#,50..ARL,EUR,GEN197408-197611

SUMITOMO

main47710-12140iKE3#,50..ARL,EUR,GEN197410-197611

TOYOTA

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10007iKE3#,50..ARL,EUR,GEN197605-197612

*10-1.25PX15.5-11

main90101-10020iKE3#,50..ARL,EUR,GEN197612-198107

*10-1.25PX16.4-11.4

main90101-10236iKE3#,50..ARL,EUR,GEN197408-197605

sub90101-10007

main90101-12003iKE30,36,TE3#..SA197506-198107

*12-1.25PX32-17

main90101-12332iKE30,TE3#..SA197408-198107

*12-1.25PX15.7-10,*10-1.25PX15.5-11

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-12040iKE3#,55..ARL,GEN197408-198107

SUMITOMO

main04479-12050iKE3#,55..ARL,GEN197410-198107

TOYOTA

main04479-14010iKE30,TE3#..SA197408-198107

47710LPAD KIT, DISC BRAKE, FRONT

main04491-12060iKE3#,50..RHD..GEN197701-197704

M2212

sub04491-12061

main04491-12061iKE3#,50..RHD..GEN197704-197802

M2212

sub04491-12062

main04491-12062iKE3#,50..RHD..GEN197802-197803

M2220

sub04491-12063

main04491-12063iKE30,35,36,50..RHD..GEN197803-197908

M2220

sub04465-12340

main04491-12080iKE3#,50..ARL,EUR,GEN197408-197704

M2207

sub04491-12081

main04491-12081iKE3#,50..ARL,EUR,GEN197704-198107

M2207

sub04465-12320

main04491-12090iTE47197408-197701

EUROPE SPEC,S31

sub04491-12091

main04491-12090iTE51197603-197704

sub04491-12091

main04491-12091iTE3#,47,51197704-197705

sub04491-12092

main04491-12092iKE30,TE3#..SA197705-197803

sub04491-12093

main04491-12093iKE30,TE3#..SA197803-198107

sub04465-12430

main04491-20110iTE3#,47197408-197701

sub04491-20111

47710NSEAL KIT, DISC BRAKE, FRONT

main04498-12010iKE3#,55..ARL,GEN197408-198107

SUMITOMO

main04498-12020iKE3#,55..ARL,GEN197410-198107

TOYOTA

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iKE3#,55..ARL,GEN197410-198107

TOYOTA

main47547-12020iKE30,TE3#..SA197408-198107

main47547-12030iKE3#,50..ARL,EUR,GEN197408-198107

SUMITOMO

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197408-198107

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-12054iTE47197408-197611

EUROPE SPEC,S31

sub47750-12060

main47720-12054iTE51197603-197611

sub47750-12060

main47720-12100iTE3#,47197408-197611

sub47750-12051

main47720-12110iKE3#,50..ARL,EUR,GEN197408-197611

SUMITOMO

sub47750-12070

main47720-12140iKE3#,50..ARL,EUR,GEN197410-197611

TOYOTA

47731PISTON, FRONT DISC BRAKE

main47731-12030iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197408-198107

SUMITOMO

main47731-12040iKE3#,50..ARL,EUR,GEN197410-198107

TOYOTA

main47731-20030iTE47,51197408-198107

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53018iKE3#,50..ARL,EUR,GEN197408-198107

SUMITOMO

main90522-53045iKE3#,50..ARL,EUR,GEN197410-198107

TOYOTA

main90522-54038iTE47,51197408-198107

sub90522-58001

47746APIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)

main90240-06133iKE3#,50..ARL,EUR,GEN197408-198107

SUMITOMO

main90240-06161iKE3#,50..ARL,EUR,GEN197410-198107

TOYOTA

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-12010iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197408-198107

OUTER,SUMITOMO

main47748-12020iKE3#,55..ARL,GEN197408-198107

INNER,SUMITOMO

main47748-12030iKE3#,50..ARL,EUR,GEN197410-198107

OUTER,TOYOTA

main47748-12040iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197410-198107

INNER,TOYOTA

main47748-14010iKE30,36,TE3#..SA197603-198107

main47748-14010iTE47197408-197701

EUROPE SPEC,S31

47766CAP, TORQUE PLATE PIN, FRONT(MAIN PIN)

main47766-12010iKE3#,50..ARL,EUR,GEN197408-198107

SUMITOMO

main47766-12020iKE3#,50..ARL,EUR,GEN197410-198107

TOYOTA

sub47766-12010

47766APLUG, HOLE(FOR TORQUE PLATE FRONT PIN CAP)

main90950-01121iKE30,36197408-198107

SUMITOMO

main90950-01186iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197410-198107

TOYOTA

47767PROTECTOR, DISC BRAKE PAD

main47767-12010iKE30,36197408-198107

SUMITOMO

main47767-12020iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197410-198107

TOYOTA

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-12041iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197408-198107

main47703-12050iTE47,51197408-198107

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10020iTE47,51197610-198107

*10-1.25PX16.4-11.4

main90101-10366iTE3#,47,51197408-197610

L=17

main90119-10082iKE3#,55..ARL,GEN197501-198107

*10-1.25PX16-16

sub90119-10804

main91111-71020iKE30,TE3#..SA197506-198107

*10-1.25PX20-20

main91611-61016iKE3#..GEN197408-197501

sub91612-61016

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-12041iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197408-198107

main47704-12050iTE47,51197408-198107

9010112392

main90101-12392

9010112489

main90101-12489

9453101000

main94531-01000

21 parts on this diagram · 5 diagrams in section
