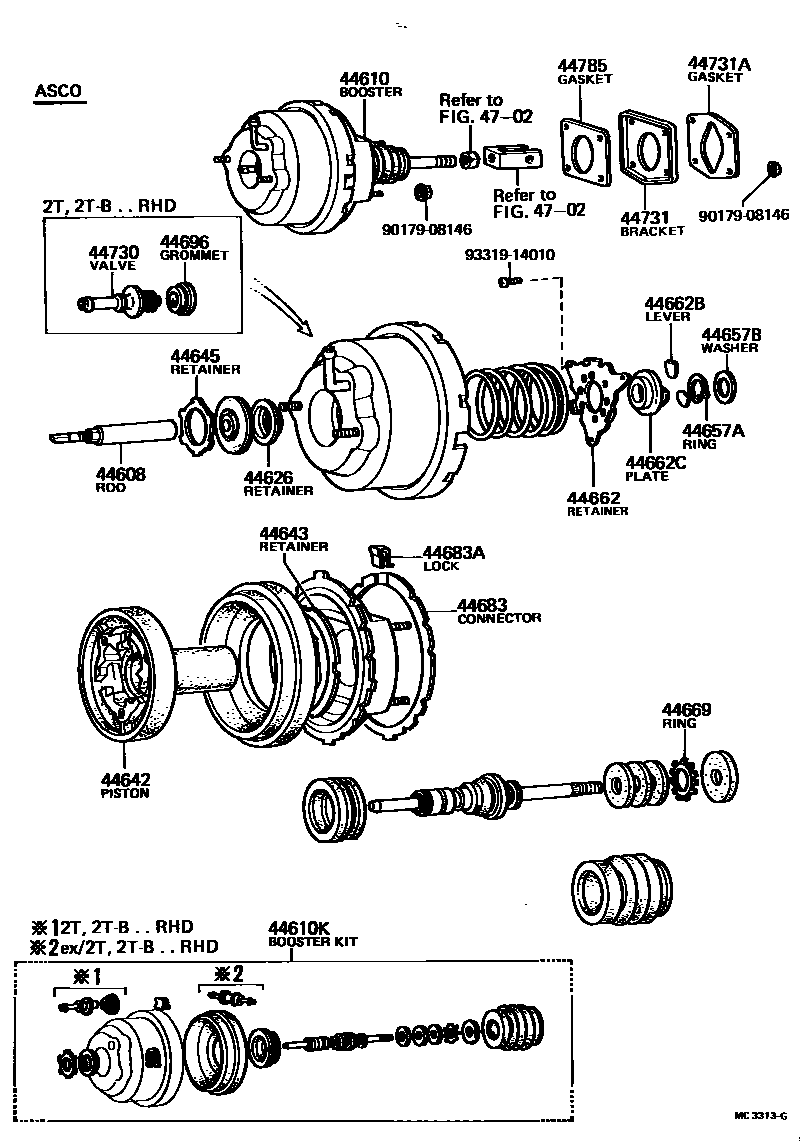

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12070iKE3#,55..ARL,SA197908-198107

AISIN,5INCH BOOSTER

main44606-30050iTE3#,47,51197408-198004

AISIN,6INCH BOOSTER

sub44606-35100

main44608-10011iKE3#,50..EUR,GEN197610-197807

JKK,5INCH BOOSTER

main44608-12080iKE3#,50..EUR,GEN197408-197604

JKK,5INCH BOOSTER

main44608-14040iTE47,51197408-197908

JKK,6INCH BOOSTER

44610BOOSTER ASSY, BRAKE

main44610-12070iKE3#,50..RHD..(ARL,GEN)197408-197610

AISIN,5INCH BOOSTER

main44610-12090iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197408-198004

AISIN,6INCH BOOSTER

main44610-12100iTE47,51..LHD;TE47..RHD..GT197408-197908

AISIN,6INCH BOOSTER

main44610-12130iKE30,35,36,50..LHD197408-198002

AISIN,5INCH BOOSTER

main44610-12140iKE35..LHD..SR197808-197908

JKK,5INCH BOOSTER

main44610-12171iKE3#,55..ARL,SA197908-198107

AISIN,6INCH BOOSTER

44610KBOOSTER KIT, BRAKE

main04443-12040iKE3#,50..ARL,EUR,GEN197408-197610

AISIN,5INCH BOOSTER

main04443-12050iKE36;KE30,35,50..EUR,GEN197807-197908

JKK,5INCH BOOSTER

main04443-12060iTE47,51..LHD;TE47..RHD..GT197408-197704

AISIN 6INCH BOOSTER

main04443-12070iKE35,36,38,5#..ARL;KE30..STD..(ARL,SA)197610-197908

AISIN,6INCH BOOSTER

main04443-14022iKE30,36..SA197908-198107

JKK,6INCH BOOSTER

main04443-14041iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197408-198004

JKK,6INCH BOOSTER

main04443-14150iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197704-198004

AISIN 6INCH BOOSTER

main04443-20040iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197408-197704

ASCO,FOR 6 INCH BOOSTER

44626RETAINER, BOOSTER ROD CUP

main44626-60010iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197408-197807

AISIN

44642PISTON, BRAKE BOOSTER

main44642-10010iKE36;KE30,35,50..EUR,GEN197807-197908

JKK,5INCH BOOSTER

main44642-12070iKE36;KE30,35,50..EUR,GEN197807-197908

AISIN,5INCH BOOSTER

main44642-14040iTE47,51197408-197908

JKK,6INCH BOOSTER

main44642-20100iTE47,51197408-197908

AISIN,6INCH BOOSTER

44643RETAINER, DIAPHRAGM

main44643-12070iKE3#,50..ARL,EUR,GEN197408-197610

AISIN,5INCH BOOSTER

main44643-60010iTE47,51197610-197908

AISIN,6INCH BOOSTER

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iKE3#,5#,TE3#,47,51197807-198107

AISIN

main44645-22020iTE47,51197610-197807

JKK

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197408-197807

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197408-197807

AISIN

44662RETAINER, REACTION, NO.1

main44662-20100iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197408-197807

AISIN

44662BLEVER, REACTION

main44661-60010×3iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197408-197807

AISIN

sub44661-35100

44662CPLATE, REACTION, NO.1

main44653-12070iKE30,36..GEN197908-198107

AISIN,5INCH BOOSTER

main44653-12100iTE47,51197408-197908

AISIN,6INCH BOOSTER

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iKE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51197408-197807

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-12070iKE3#,50..EUR,GEN197610-197807

AISIN,5INCH BOOSTER

main44682-20100iTE47,51197408-197908

AISIN,6INCH BOOSTER

44683ALOCK, CONNECTOR

main44683-20100iKE3#,5#,TE3#,47,51197807-198107

AISIN

44696GROMMET, CHECK VALVE

main90480-24438iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197408-197610

JKK,6INCH BOOSTER

main90480-24439iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197408-198004

AISIN,6INCH BOOSTER

main90480-24517iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197610-198004

JKK,6INCH BOOSTER

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14030iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197408-198004

JKK

sub44730-30010

main44730-14040iTE3#,47,51..RHD..(DLX,GSL,LT,SR,ST,STD)197408-198004

AISIN

sub44730-22080

main44730-20010iTE47,51..LHD;TE47..RHD..GT197408-198004

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-14020iTE47..LHD197408-197701

44731AGASKET, BRAKE BOOSTER BRACKET

main47278-14010iTE47..LHD197408-197506

FR DISC BRAKE

44785GASKET, BRAKE BOOSTER

main44785-14010iTE47..LHD197408-197506

4702

9017908146

main90179-08146

9331914010

main93319-14010

23 parts on this diagram · 4 diagrams in section
