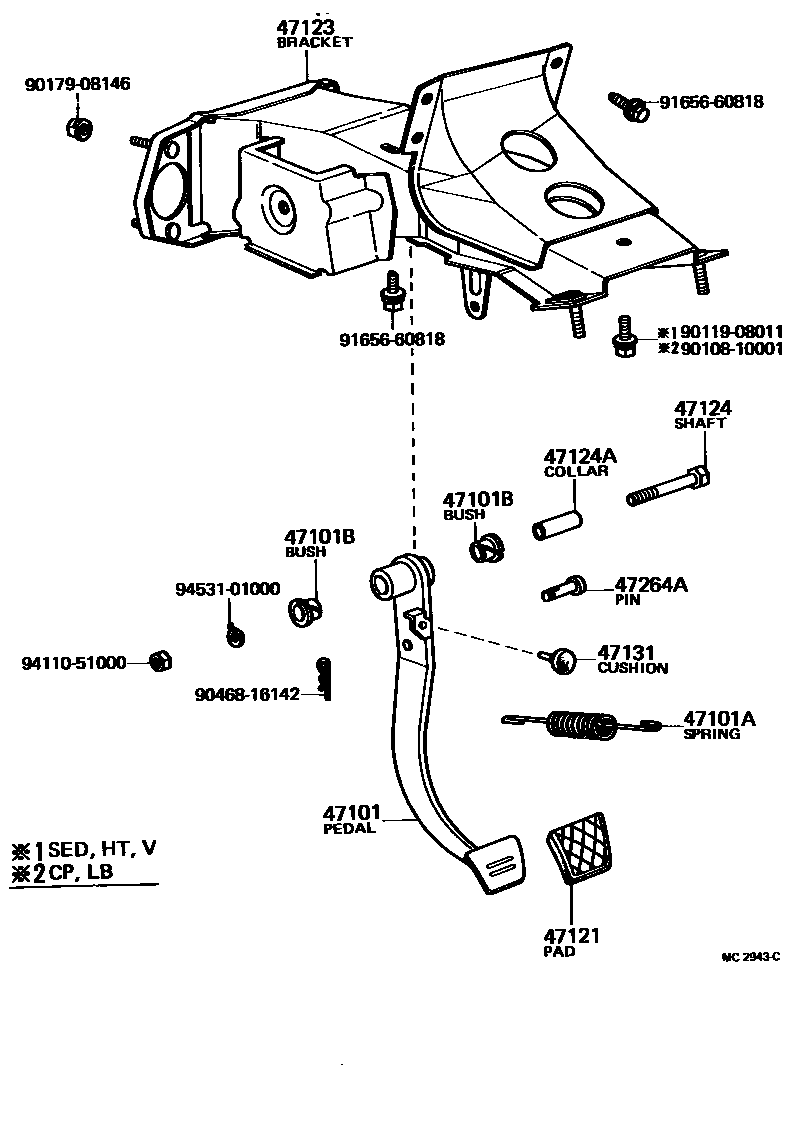

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12160iKE3#,5#,TE3#,47,51..RHD..MTM197408-198107

main47101-12170iKE30,35,55,TE31,51..RHD..ATM197408-198107

main47101-12180iKE30,35,36,50..LHD..MTM197408-198002

main47101-12190iKE30,35..LHD..A20197408-197908

main47101-12200iTE47,51..LHD..MTM197408-197908

main47101-12210iTE51..LHD..A40197603-197908

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16455iKE3#,5#,TE3#,47,51197408-198107

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iKE3#,5#,TE3#,47,51197408-198107

47121PAD, BRAKE PEDAL

main31321-12030iKE3#,5#,TE3#,47,51..MTM197408-198107

main47121-12020iKE30,35,55,TE31,51..ATM197408-198107

47123BRACKET, BRAKE PEDAL

main55106-12140iKE3#,55..(DV,HT,SED,WG)..RHD..MTM197408-198107

main55106-12150iKE30,35,55,TE31..RHD..ATM197408-198107

main55106-12160iTE3#..MTM197503-198002

main55106-12170iTE47,51..RHD..MTM197408-197701

main55106-12171iTE47,51..RHD..MTM197701-197908

main55106-12180iTE51..RHD..A40197603-197701

main55106-12181iTE51..RHD..A40197701-197908

main55106-12190iTE47,51..LHD..MTM197408-197701

main55106-12191iTE47,51..LHD..MTM197701-197908

main55106-12200iKE30,35..LHD..A20197408-197908

main55106-12230iKE30,35,36..LHD..MTM197408-198002

main55106-12240iKE50..RHD197603-197701

main55106-12241iKE5#..LB..RHD197701-197908

main55106-12250iKE50..LHD197603-197701

main55106-12251iKE50..LHD197701-197908

main55106-12260iTE51..LHD..A40197603-197701

main55106-12261iTE51..LHD..A40197701-197908

47124SHAFT, BRAKE PEDAL

main90101-10015iTE47,51197507-198107

main90101-10039iKE3#,TE3#,47..RHD197408-197507

main90101-10043iKE30,35,36,50..LHD197408-198002

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iKE30,35,36,50..LHD197408-198002

main90387-10003iKE3#,5#,TE3#..RHD197408-198107

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iKE3#,5#,TE3#,47,51197408-198107

47264APIN(FOR PUSH ROD)

main90249-10064iKE3#,5#,TE3#,47,51197408-198107

9010810001

main90108-10001

9011908011

main90119-08011

9017908146

main90179-08146

9046816142

main90468-16142

9165660818

main91656-60818

9411051000

main94110-51000

9453101000

main94531-01000

16 parts on this diagram · 1 diagram in section
