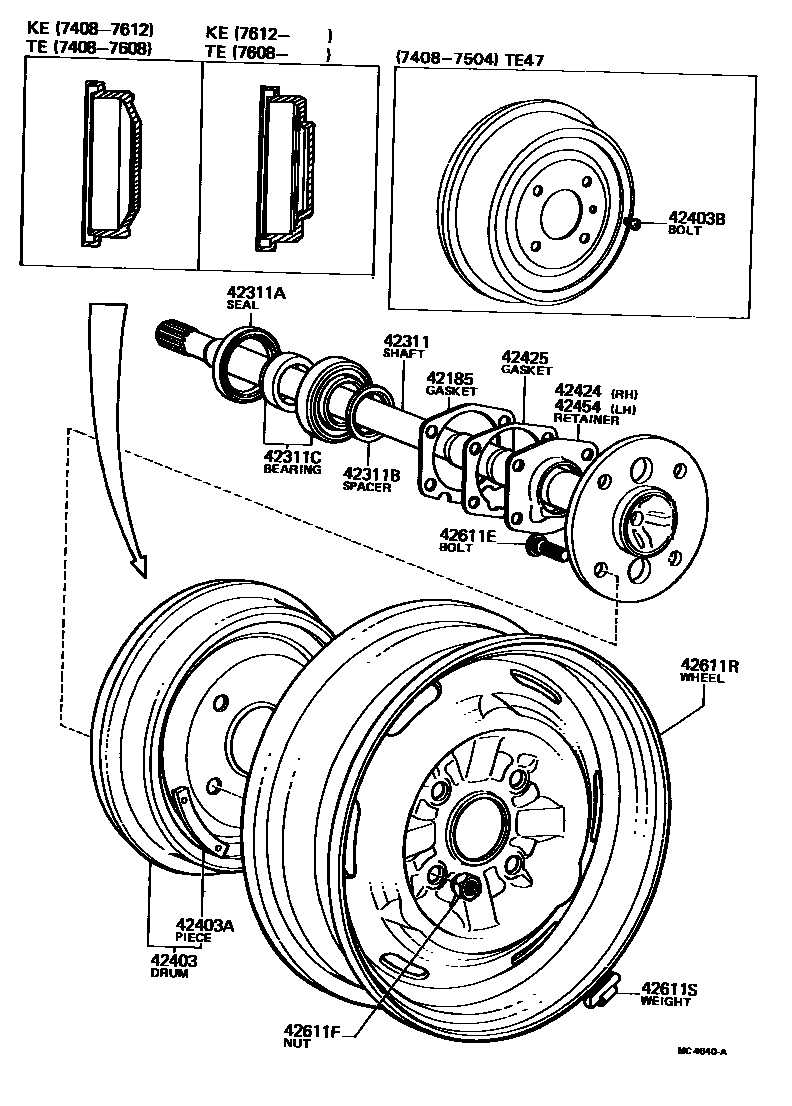

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197701-197903

T=0.3

sub42185-52030

main42185-13010×2iTE3#,51..DLX,SR,STD197903-197908

T=0.3

main42185-13020×2iTE3#,51..DLX,SR,STD197903-197908

T=0.6

main42185-22010×2iKE3#,50,TE47,51..DLX,LT,SR,ST,STD197408-197701

T=0.6

main42185-22020×2iTE47,51..GSL,GT197408-197908

42311SHAFT, REAR AXLE

main42311-12050×2iKE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN197408-197903

main42311-12051×2iKE35,36,38,5#;KE30..EUR,GEN;KE30..DLX..SA197903-197908

main42311-12052×2iKE3#,55..ARL,GEN197908-198107

main42311-12120×2iTE3#,51..DLX,SR,STD197903-197908

main42311-12121×2iKE30,36,TE3#..SA197908-198107

main42311-15010×2iTE47,51..GSL,GT197809-197908

main42311-20042×2iTE47,51..DLX,LT,ST197408-197701

main42311-20060×2iTE47,51..GSL,GT197408-197809

sub90369-35003

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2iKE3#,50,TE47,51..DLX,LT,SR,ST,STD197408-197701

main90311-52059×2iTE47,51..GSL,GT197408-197908

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-30152×2iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197701-197908

main90560-35153×2iTE47,51..GSL,GT197408-197809

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-12010×2iKE3#,5#197903-198107

sub04421-12011

main04421-13010×2iTE3#,51..DLX,SR,STD197903-198004

main04421-30010×2iTE47,51..GSL,GT197408-197611

main04421-30011×2iTE47,51..GSL,GT197611-197908

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12020×2iKE3#,50..ARL,EUR,GEN197408-197612

main42431-12021×2iKE3#,50..ARL,EUR,GEN197612-197701

main42431-12040×2iTE47,51197608-197611

main42431-12050×2iKE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN197705-197908

sub42431-12110

main42431-12060×2iKE30,36,TE3#..SA197908-198107

sub42431-14061

main42431-14060×2iTE47,51197708-197908

main42431-20040×2iTE47,51197408-197608

main42431-22050×2iTE47,51197611-197701

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2iTE47,51197701-197908

10G,10G

main90937-01118×2iTE47,51197608-197701

20G,20G

main90937-01119×2iTE47,51197608-197701

30G,30G

main90937-01120×2iTE47,51197701-197806

40G,40G

main90937-01121×2iTE47,51197608-197701

50G,50G

main90937-01122×2iTE47,51197701-197806

60G,60G

main90937-01141×2iTE47,51197408-197608

20G

main90937-01142×2iTE47,51197408-197608

30G

main90937-01143×2iTE47,51197408-197608

40G

main90937-01144×2iTE47,51197408-197608

50G

main90937-01145×2iTE47,51197408-197608

10G,60G

main90937-01195×2iTE47,51197806-197908

40G,40G

main90937-01196×2iTE47,51197806-197908

50G,50G

main90937-01197×2iTE47,51197806-197908

60G,60G

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007×2iTE47197408-197504

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-20010iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197701-198107

main42424-21010iTE47,51..GSL,GT197408-197908

42425GASKET, REAR AXLE BEARING RETAINER

main42425-13010×2iTE3#,51..DLX,SR,STD197903-197908

main42425-20010×2iKE3#,55,TE3#197908-198107

sub42425-52030

main42425-22020×2iTE47,51..GSL,GT197408-197908

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-20010iKE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD197701-198107

main42454-21010iTE47,51..GSL,GT197408-197908

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021×8iTE47,51..GSL,GT197408-197703

*12-1.5PX38-24

main90942-02032×8iKE3#,50,TE3#,47,51..DLX,LT,SR,ST,STD197408-197703

*12-1.5PX38-25.5

main90942-02035×8iKE3#,5#,TE3#,47,51197703-198107

*12-1.5PX36-23.5

sub90942-02047

42611FNUT, HUB (FOR REAR AXLE)

main90942-01007×8iKE30,36..STD..(ARL,GEN,SA)197508-197701

main90942-01017×8iKE36..WG..LHD197408-197411

H=37.5,CAP NUT

main90942-01020×8iKE36..WG..LHD197411-197508

H=34.5,CAP NUT

main90942-01021×8iKE30..DLX..SA;KE30..ARL,EUR,GEN;KE35,50,TE37,47,51197704-197805

H=29.5,CAP NUT

main90942-01026×8iTE3#..2TB197904-198004

ALUMI WHEEL

42611RWHEEL, DISC(FOR REAR)

main42611-12241×2iTE51..GSL197805-197908

5J-13

main42611-12401×2iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197701-197708

4.5J-13,SPORT WHEEL

main42611-12430×2iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197708-197908

4.5J-13,SPORT WHEEL

main42611-13040×2iTE3#;KE3#..ARL,EUR,GEN197508-197701

4.5J-13,SEMI-STYLED WHEEL

main42611-14060×2iKE30..SA197908-198004

4.5J-13

main42611-14100×2iKE30,35,50,TE47,51..DLX,LT,SR,ST,STD197603-197701

4.5J-13,SPORT WHEEL,155SR13

sub42611-12400

main42611-14101×2iKE30,35,TE47..DLX,LT,SR,ST,STD197408-197603

4.5J-13,SPORT WHEEL,155SR13

main42611-14110×2iTE51..GSL197408-197605

5J-13

sub42611-12240

main42611-14120×2iKE30197408-197508

4J-13,TUBELESS

main42611-14130×2iKE30197408-197508

4J-13,W/TUBE

main42611-14240×2iKE36..RHD..GEN;KE30,35,50..MTM;KE36..ARL,EUR,SA;KE36..WG..LHD..GEN197511-197701

5J-13

main42611-14242×2iKE36..LHD..EUG197703-197708

5J-13,AUSTRIA SPEC

main42611-14300×2iKE36..LHD..EUG197805-197908

5J-13

main42611-14310×2iTE3#..2TB197904-198004

5J-13,ALUMI WHEEL

sub42611-14311

main42611-14320×2iKE36..LHD..EUG197708-197805

5J-13,SWITZERLAND SPEC

main42611-14330×2iKE30,35,55,TE3#..(HT,SED)..(ARL,GEN,SA)197805-197908

4.5J-13,SEMI-STYLED WHEEL

main42611-14331×2iKE30,55..ARL,GEN197908-198107

4.5J-13,SEMI-STYLED WHEEL

main42611-14350×2iTE3#..2TB197908-198004

5J-13,SPORT WHEEL

main42611-20050×2iKE36197408-197508

4J-13

main42611-20060×2iKE3#..ARL197604-197701

4J-13

main42611-20090×2iKE50,TE51..LHD..DLX197603-197701

5J-13,SPORT WHEEL

main42611-20091×2iKE30,35,50,TE51..LHD..(DLX,SR,STD)..EUR197701-197708

5J-13,SPORT WHEEL

main42611-20160×2iKE3#..(HT,SED,WG)..LHD..MTM197504-197511

5J-13

sub42611-14241

main42611-22080×2iTE31..STD197503-197508

4.5J-13

main42611-22090×2iKE3#..GEN;TE3#..DLX,SR197408-197508

4.5J-13,RADIAL TIRE

main42611-22121×2iKE30,35..EUG197701-197805

4.5J-13,SEMI-STYLED WHEEL

42611SWEIGHT, BALANCE(FOR REAR DISC WHEEL)

main90942-03017iKE3#,5#,TE3#,47,51197408-198107

20G

main90942-03020iKE3#,5#,TE3#,47,51197408-198107

30G

main90942-03022iKE3#,5#,TE3#,47,51197408-198107

40G

main90942-03025iKE3#,5#,TE3#,47,51197408-198107

50G

main90942-03027iKE3#,5#,TE3#,47,51197408-198107

60G

main90942-03029iKE3#,5#,TE3#,47,51197408-198107

70G

main90942-03031iKE3#,5#,TE3#,47,51197408-198107

80G

main90942-03041iKE3#,5#,TE3#,47,51197408-198107

10G

main90942-03092iTE3#..2TB197904-198004

10G,ALUMI WHEEL

main90942-03093iTE3#..2TB197904-198004

20G,ALUMI WHEEL

main90942-03094iTE3#..2TB197904-198004

30G,ALUMI WHEEL

main90942-03095iTE3#..2TB197904-198004

40G,ALUMI WHEEL

main90942-03096iTE3#..2TB197904-198004

50G,ALUMI WHEEL

main90942-03097iTE3#..2TB197904-198004

60G,ALUMI WHEEL

15 parts on this diagram · 1 diagram in section
