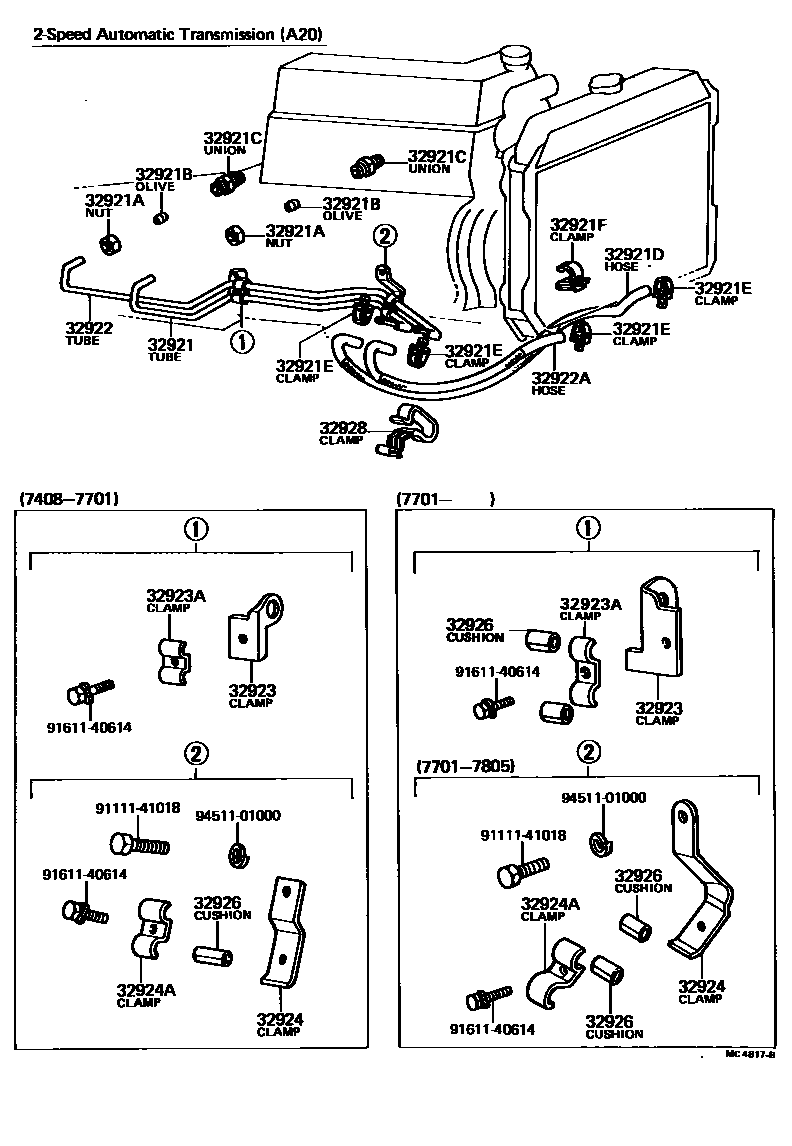

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-10011iKE30,35..A20197805-197908

L=336

main32921-12051iKE30,35..A20197408-197610

sub32921-12070

main32921-12060iTE31,51..A40197512-198004

main32921-12070iKE30,35..A20197610-197805

L=579

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iKE30,35,TE31,51..ATM197408-198004

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iKE30,35,TE31,51..ATM197408-198004

32921CUNION(FOR OIL COOLER TUBE)

main90404-13105iKE30,35..A20197408-197908

main90404-13265iTE31,51..A40197512-198004

INLET

main90407-13060iTE31,51..A40197512-198004

OUTLET

sub90407-13002

32921DHOSE(FOR OIL COOLER INLET)

main32941-10020iKE30,35..A20197805-197908

L=960

main32941-12010iTE31,51..A40197408-198004

L=710

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-01075iKE30,35,TE31,51..ATM197408-198004

sub90460-14085

32921FCLAMP(FOR OIL COOLER TUBE)

main90463-06599iKE30,35,TE31,51..ATM197408-198004

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-10011iKE30,35..A20197805-197908

L=482

main32922-12012iKE30,35..A20197408-197610

sub32922-12060

main32922-12050iTE31,51..A40197512-198004

main32922-12060iKE30,35..A20197610-197805

L=737

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-12010iKE30,35..A20197805-197908

L=710

main32942-12010iKE30,35..A20197408-197805

L=470

main32942-12020iTE31,51..A40197512-198004

L=505

sub32942-12021

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-12020iKE30,35..A20197408-197511

sub32923-12021

main32923-12021iKE30,35..A20197511-197908

main90461-08039iTE31,51..A40197512-198004

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12084iKE30,35..A20197408-197805

main90462-12085iKE30,35..A20197805-197908

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-12010iKE30,35..A20197408-197701

sub32924-12020

main32924-12021iKE30,35..A20197701-197805

main32924-14010iTE31,51..A40197512-198004

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12085iKE30,35,TE31,51..ATM197408-198004

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iKE30,35,TE31,51..ATM197408-198004

L=25,ID=8

32928CLAMP, FLEXIBLE HOSE, NO.1

main90463-06600iKE30,35,TE31,51..ATM197408-198004

9111141018

main91111-41018

9161140614

main91611-40614

9451101000

main94511-01000

18 parts on this diagram · 2 diagrams in section
