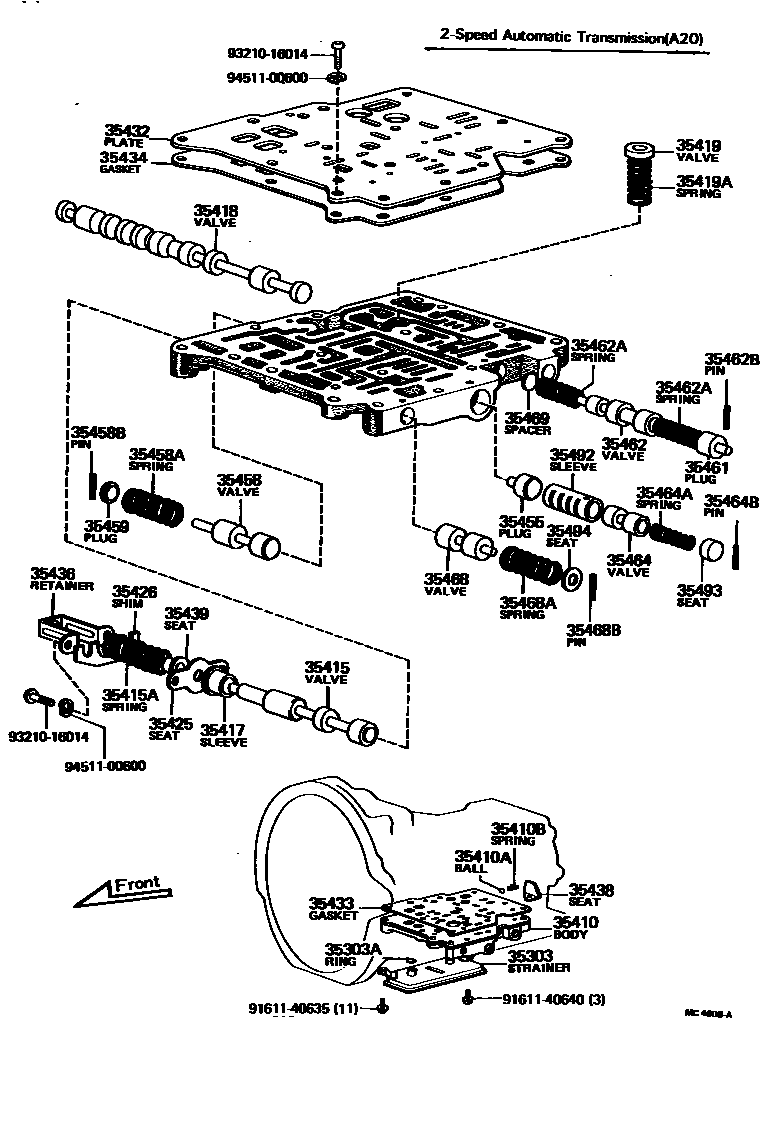

VALVE BODY & OIL STRAINER (ATM)
35303ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
35410ABALL (FOR REVERSE SHIFT RESTRICT)
35410BSPRING, COMPRESSION (FOR TRANSMISSION VALVE BODY)
35415VALVE, PRESSURE REGULATOR
35415ASPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
35417SLEEVE, PRESSURE REGULATOR VALVE
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35425SEAT, PRESSURE REGULATOR VALVE SLEEVE
35426SHIM, PRESSURE REGULATOR
35432PLATE, VALVE BODY, NO.1
35436RETAINER, PRESSURE REGULATOR SPRING
35438SEAT, DETENT SPRING
35439SEAT, PRESSURE REGULATOR VALVE SPRING
35455PLUG, 1-2 SHIFT VALVE LOW
35458VALVE, THROTTLE RELAY
35458ASPRING, COMPRESSION (FOR THROTTLE RELAY VALVE)
35458BPIN, SLOTTED SPRING (FOR THROTTLE RELAY VALVE STOPPER)
35459PLUG, THROTTLE RELAY
35461PLUG, DOWN SHIFT
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
L=19.24,WD=0.71,CW=8,SECONDARY
WD=1.19,CW=15.5,PRIMARY
L=39.71,WD=1.19,CW=11.5,PRIMARY
35462BPIN, SLOTTED SPRING (FOR THROTTLE VALVE SET)
35464ASPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35464BPIN, SLOTTED SPRING (FOR SHIFT VALVE STOP)
35468VALVE, ORIFICE CONTROL
35468ASPRING, COMPRESSION (FOR ORIFICE CONTROL VALVE SPRING)
35468BPIN, SLOTTED SPRING (FOR ORIFICE CONTROL VALVE SET)
35469SPACER (FOR VALVE BODY DOWN SHIFT PLUG)
35492SLEEVE, SHIFT VALVE
35493SEAT, SHIFT VALVE SPRING
35494SEAT, ORIFICE CONTROL VALVE SPRING
9161140635
main91611-40635
9161140640
main91611-40640
9321016014
main93210-16014
9451100600
main94511-00600
42 parts on this diagram · 3 diagrams in section
