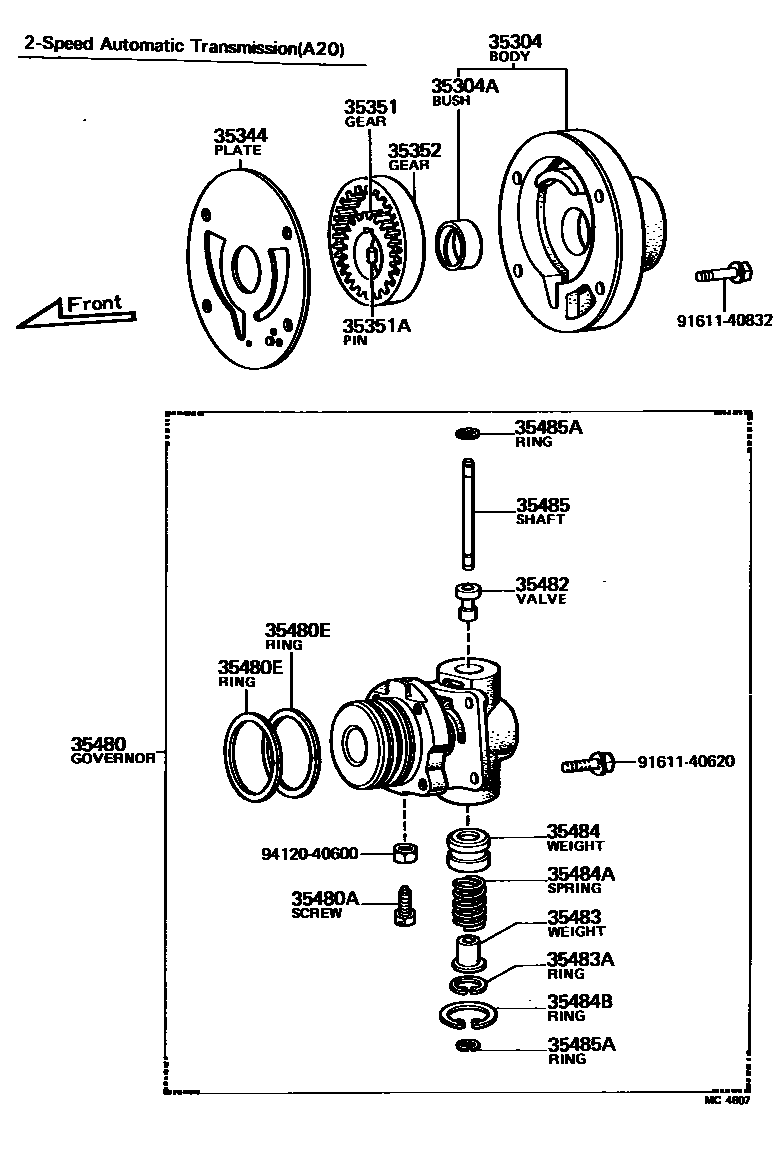

REAR OIL PUMP & GOVERNOR (ATM)
35304BODY SUB-ASSY, REAR OIL PUMP
35304ABUSH, BIMETAL FORMED (FOR REAR OIL PUMP BODY)
35344PLATE, REAR OIL PUMP
35351GEAR, REAR OIL PUMP DRIVE
35351APIN, STRAIGHT (FOR REAR OIL PUMP DRIVE GEAR)
35352GEAR, REAR OIL PUMP DRIVEN
35480ASCREW (FOR GOVERNOR BODY SET BOLT)
35480ERING (FOR REAR OIL PUMP GOVERNOR)
35482VALVE, GOVERNOR
35483WEIGHT, GOVERNOR, INNER
35483ARING, HOLE SNAP (FOR GOVERNOR INNER WEIGHT)
35484WEIGHT, GOVERNOR, OUTER
35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
35484BRING, HOLE SNAP (FOR GOVERNOR OUTER WEIGHT)
35485SHAFT, GOVERNOR VALVE
35485ARING, E (FOR GOVERNOR VALVE SHAFT)
9161140620
main91611-40620
9161140832
main91611-40832
9412040600
main94120-40600
20 parts on this diagram · 2 diagrams in section
