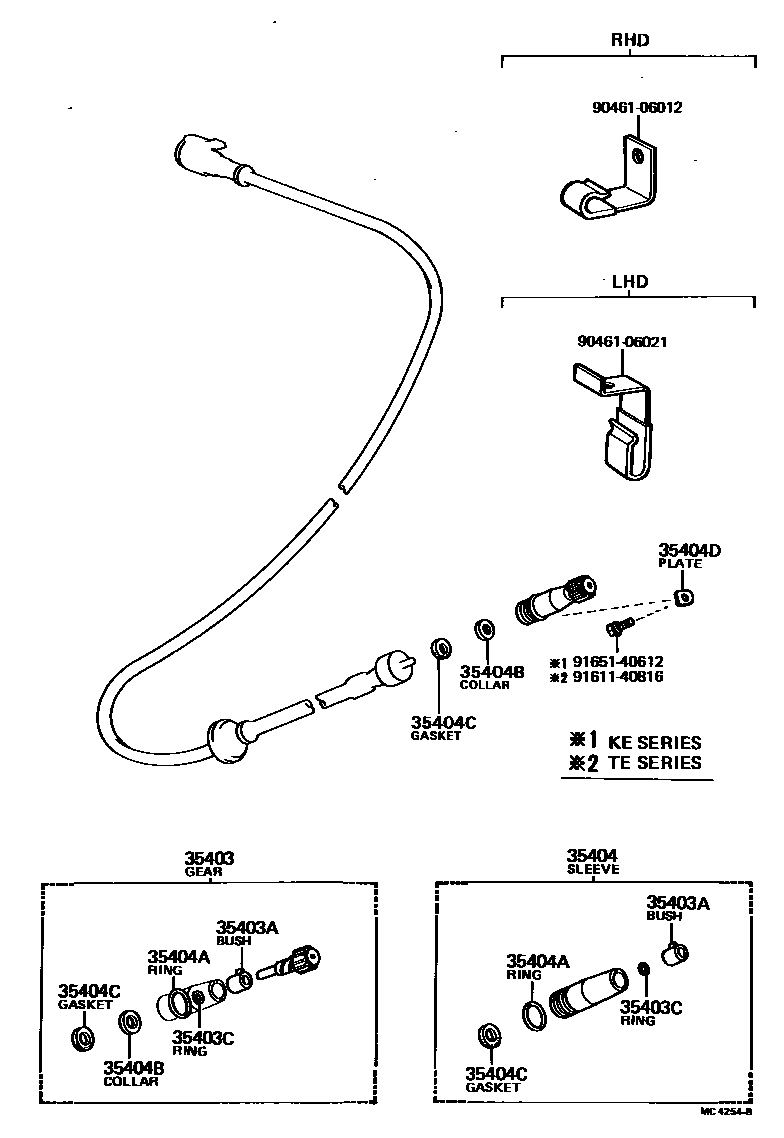

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19055iKE30,35..A20197408-197701

N=20,DIFF R=41:9

main33403-19065iKE30,35..A20197408-197908

N=19

main33403-19085iKE30,35..LHD..A20..EUG197703-197908

N=22,AUSTRIA SPEC

main33403-29065iTE31..A40197602-198004

N=20

main33403-39036iTE51..RHD..A40197603-197805

N=17

main33482-39015iTE51..A40197512-197908

N=21

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09055iKE30,35..A20197408-197908

main90386-09078iTE31,51..A40197512-198004

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iKE30,35,TE31,51..ATM197408-198004

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-19015iKE30,35..A20197408-197908

main33404-39016iTE31,51..A40197512-198004

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iTE31,51..A40197512-198004

main96710-02018iKE30,35..A20197408-197908

sub96711-19018

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iKE30,35,TE31,51..ATM197408-198004

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iKE30,35,TE31,51..ATM197408-198004

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-10010iKE30,35..A20197408-197908

main33485-30010iTE31,51..A40197512-198004

9046106012

main90461-06012

9046106021

main90461-06021

9161140816

main91611-40816

9165140612

main91651-40612

12 parts on this diagram · 1 diagram in section
