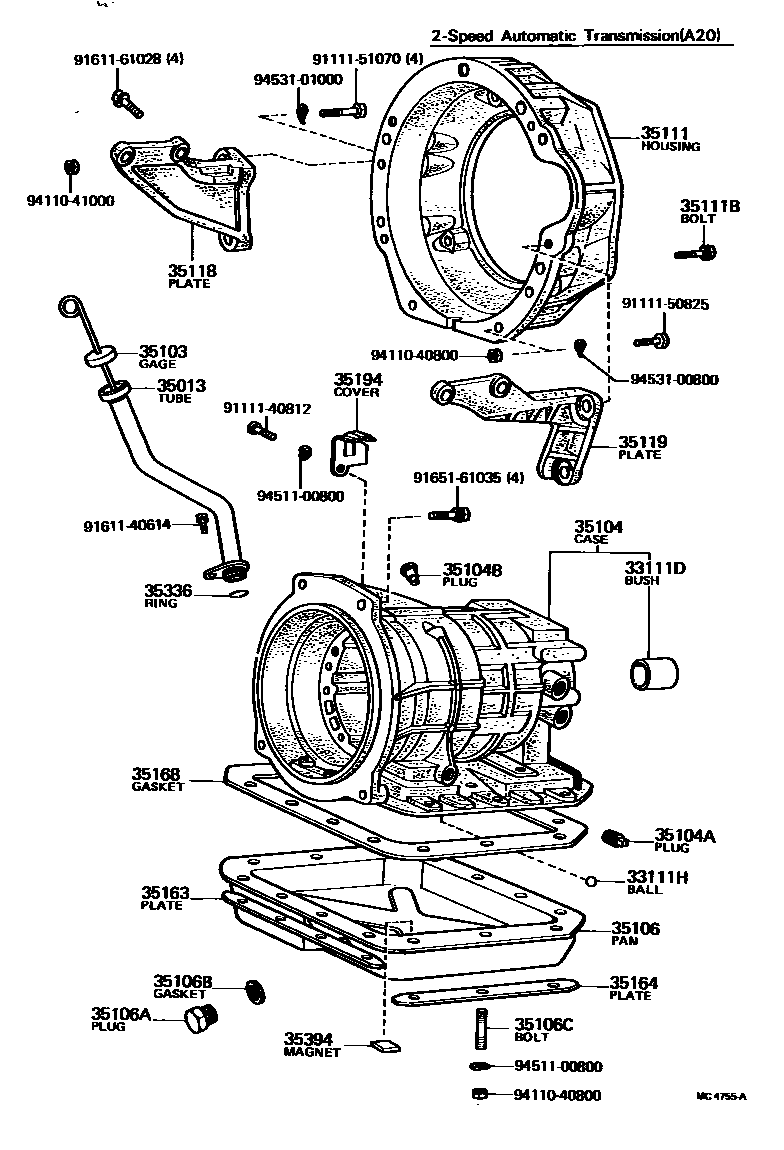

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

33111DBUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)

main90999-73039iKE30,35..A20197408-197908

33111HBALL(FOR THROTTLE RELAY VALVE)

main90360-06004iKE30,35..A20197408-197908

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12050iKE30,35..A20197408-197908

main35013-13010iTE31,51..A40197512-198004

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12012iKE30,35..A20197408-197908

main35103-12022iTE31,51..A40197512-198004

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-20020iKE30,35..A20197408-197908

main35104-22021iTE31,51..A40197512-197708

sub35104-22022

main35104-22022iTE31,51..A40197708-198004

sub35104-22023

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08079iTE31,51..A40197512-198004

main90345-51005iKE30,35..A20197408-197908

sub90345-51025

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iKE30,35..A20197408-197908

main90930-03061iTE31,51..A40197512-198004

sub90930-03069

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22010iKE30,35..A20197408-197908

main35106-22020iTE31,51..A40197512-198004

sub35106-22021

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10078iTE31,51..A40197512-198004

sub90341-10003

sub35178-30010

main90341-18057iKE30,35..A20197408-197908

35106BGASKET, DRAIN PLUG (ATM)

main12157-10010iKE30,35..A20197408-197908

main90202-10110iTE31,51..A40197512-198004

35106CBOLT, STUD (FOR AUTOMATIC TRANSMISSION OIL PAN SETTING)

main90116-08037iKE30,35..A20197408-197908

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12020iTE31,51..A40197512-198004

sub35111-14050

main35111-12040iKE30,35..A20197408-197908

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-12004iKE30,35..A20197708-197908

*12-1.25PX62.5-30

main91619-61265iKE30,35..A20197408-197708

*12-1.25PX65-30,*12-1.25PX65-30

35118PLATE, STIFENER, RH (ATM)

main33118-12020iTE31,51..A40197512-198004

main33118-12050iKE30,35..A20197408-197908

35119PLATE, STIFENER, LH (ATM)

main33119-12010iTE31,51..A40197512-197701

sub33119-12011

main33119-12011iTE31,51..A40197701-198004

main33119-12020iKE30,35..A20197408-197705

sub33119-12H00

main33119-12021iKE30,35..A20197705-197908

35163PLATE, TRANSMISSION OIL PAN FLANGE, NO.1

main35163-12010iKE30,35..A20197408-197908

35164PLATE, TRANSMISSION OIL PAN FLANGE, NO.2

main35164-12010iKE30,35..A20197408-197908

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-12010iKE30,35..A20197408-197908

sub35168-12011

main35168-22010iTE31,51..A40197512-198004

sub35168-22011

35194COVER, TRANSMISSION CASE DUST

main35194-12010iKE30,35..A20197408-197908

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iTE31,51..A40197512-198004

main90301-17006iKE30,35..A20197408-197908

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iKE30,35,TE31,51..ATM197408-198004

9111140812

main91111-40812

9111150825

main91111-50825

9111151070

main91111-51070

9161140614

main91611-40614

9161161028

main91611-61028

9165161035

main91651-61035

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9453100800

main94531-00800

9453101000

main94531-01000

32 parts on this diagram · 2 diagrams in section
