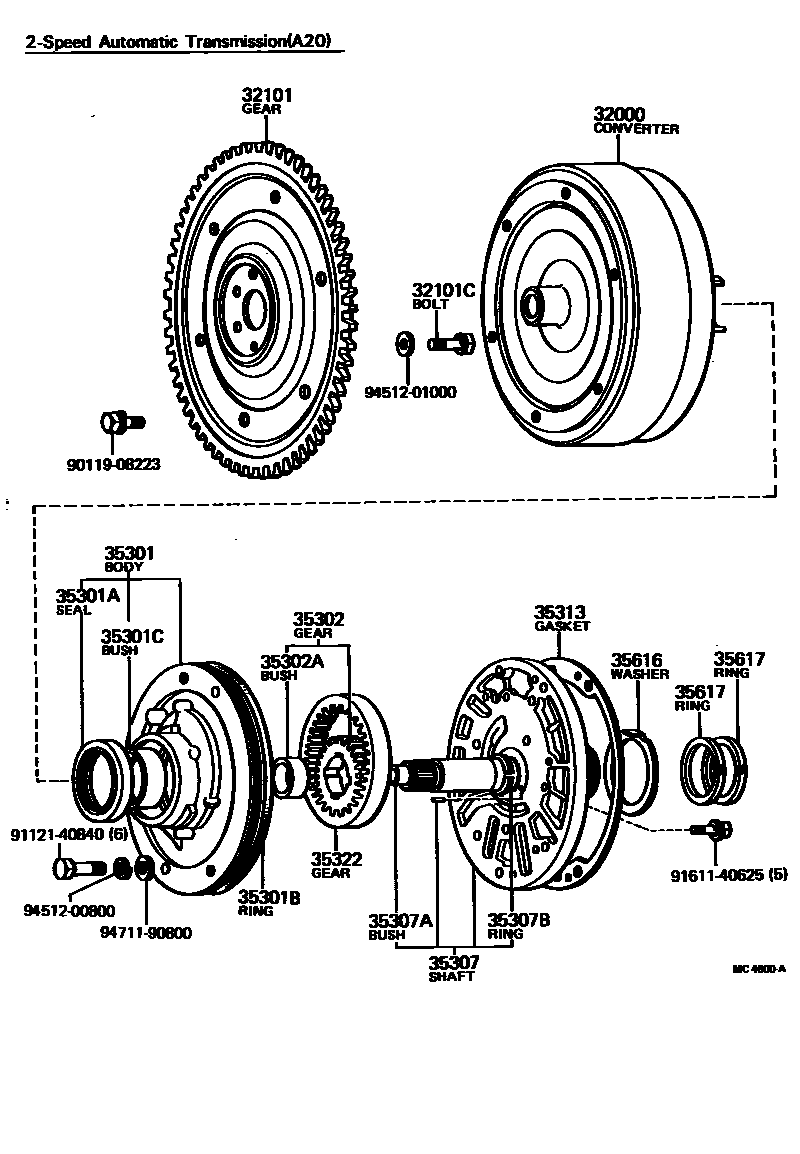

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-12012iKE30,35..A20197408-197908

main32000-12021iTE31,51..A40197512-197708

sub32000-12030

main32000-12030iTE31,51..A40197708-198004

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12011iKE30,35..A20197408-197708

main32101-12020iKE30,35..A20197708-197908

main32101-14030iTE31,51..A40197512-198004

sub32101-22030

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90101-10035iTE31,51..A40197702-197803

sub90105-10006

main90101-10435iTE31,51..A40197512-197702

main90105-10006iTE31,51..A40197803-198004

*10-1.25X23-14.5

main90119-10078iKE30,35..A20197408-197908

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-12010iKE30,35..A20197408-197908

main35301-22011iTE31,51..A40197512-198004

sub35301-30030

sub90101-06002

sub90101-08046

sub90301-99010

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iTE31,51..A40197512-198004

sub90311-38020

main90311-42083iKE30,35..A20197408-197908

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iTE31,51..A40197512-198004

main90301-99102iKE30,35..A20197408-197908

35301CBUSH, BIMETAL FORMED (FOR FRONT OIL PUMP BODY)

main90999-73036iKE30,35..A20197408-197908

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35302-12010iKE30,35..A20197408-197908

main35321-22010iTE31,51..A40197512-198004

sub35321-22090

35302ABUSH, BIMETAL FORMED (FOR FRONT OIL PUMP DRIVE GEAR)

main90999-73037iKE30,35..A20197408-197908

35307SHAFT SUB-ASSY, STATOR

main35307-12012iKE30,35..A20197408-197908

main35307-22011iTE31,51..A40197512-198004

sub35370-22010

35307ABUSH, BIMETAL FORMED (FOR STATOR SHAFT)

main90999-73047iKE30,35..A20197408-197908

35307BRING, SHAFT SNAP (FOR STATOR SHAFT)

main90520-25116iKE30,35..A20197408-197908

35313GASKET, FRONT OIL PUMP COVER

main35313-12011iKE30,35..A20197408-197908

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iTE31,51..A40197512-198004

T=15.286-15.235

sub35322-22090

main35322-31010iKE30,35..A20197408-197908

35616WASHER, CLUTCH DRUM THRUST

main35616-12011iKE30,35..A20197408-197908

35617RING, CLUTCH DRUM OIL SEAL

main35617-12010iKE30,35..A20197408-197908

main35617-22010iTE31,51..A40197512-198004

9011908223

main90119-08223

9112140840

main91121-40840

9161140625

main91611-40625

9451200800

main94512-00800

9451201000

main94512-01000

9471190800

main94711-90800
