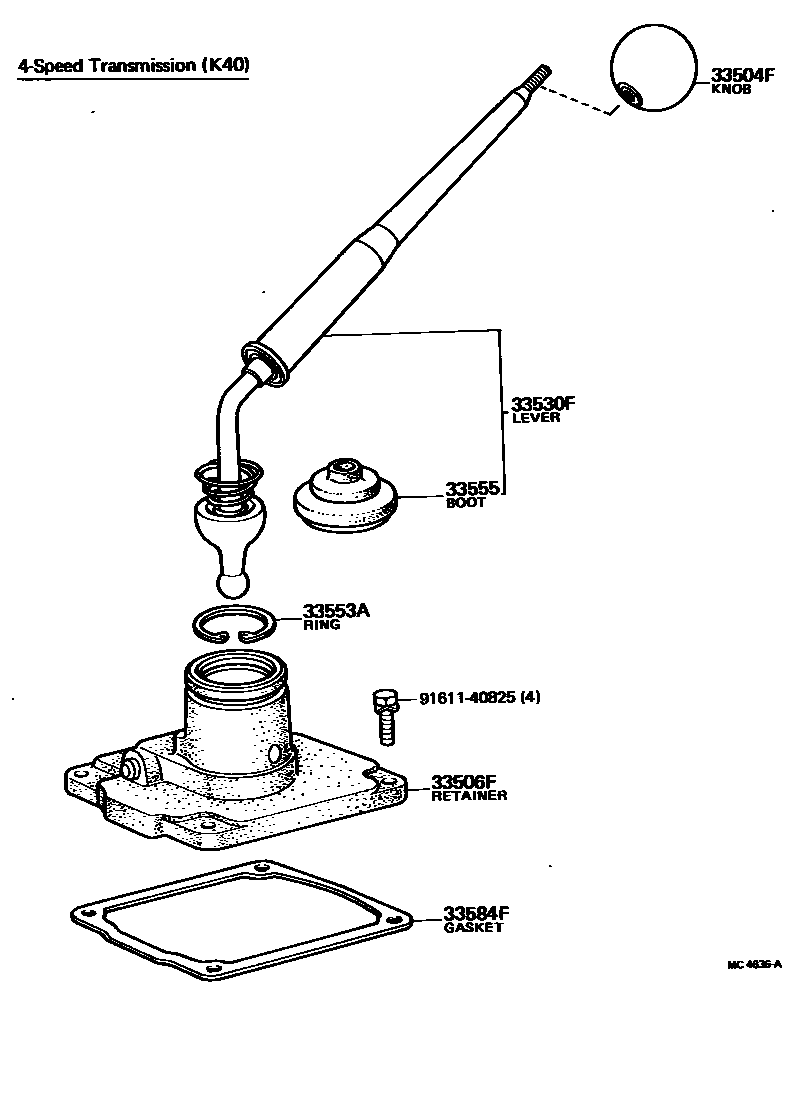

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10020iKE50..SDN197701-197908

BLACK

sub33504-14050

sub33504-22111

main33504-10030iKE55..K50..DLX197908-198107

WOODY

sub33504-14050

main33504-12050iKE35,TE47..4F197408-197510

main33504-12070iTE37,47..GT,SR197408-197510

main33504-12071iTE3#,51..T50197904-198004

URETHANE

main33504-12080iKE30,36,38,5#,TE31..4F197510-198107

BLACK

sub33504-14040

main33504-12090iKE30..K40..DLX..EUR197811-197908

WOODY

main33504-12100iTE31..T50197706-197904

BLACK

sub33504-14050

main33504-12110iTE47..T50..(LT,ST)197606-197902

WOODY

sub33504-14050

main33504-14022iKE35,TE47..5F..(LT,SR,ST)197408-197510

main33504-22020iKE30,36,TE31..4F197408-197510

main33542-12070iKE30,35,TE31,51..ATM197408-197701

main33542-12071iKE55..3FC197805-197809

main33542-12090iKE55..3FC197809-198107

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-10011iKE30,35,5#..K50197606-198107

main33506-10020iKE3#,55..K40198009-198107

main33506-12040iKE3#,5#..K40197408-198009

main33506-14011iTE3#,47,51..MTM197408-198004

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-12060iKE30,35..RHD..A20197408-197701

main33503-12061iKE30,35..RHD..A20197701-197908

main33503-12070iTE31,51..RHD..A40197512-197701

main33503-12071iKE55..3FC197805-198107

main33503-12090iKE30,35..LHD..A20197408-197701

main33503-12091iKE30,35..LHD..A20197701-197908

main33503-12100iTE51..LHD..A40197603-197701

main33503-12101iTE51..LHD..A40197701-197908

main33530-12091iKE3#..RHD..K40197408-197510

main33530-12092iKE3#,5#..RHD..K40197510-198107

main33530-12101iKE35..RHD..K50197408-197510

main33530-12102iKE35..RHD..K50197510-197606

main33530-12111iTE31,47..RHD..T40197408-197510

main33530-12112iTE31,47,51..RHD..T40197510-198004

main33530-12121iTE37,47..RHD..T50197408-197510

main33530-12122iTE3#,47,51..RHD..T50197510-198004

main33530-12131iKE3#..LHD..K40197408-197510

main33530-12132iKE30,35,36,50..LHD..K40197510-198002

main33530-12141iTE47..LHD..T40197408-197510

main33530-12142iTE47,51..LHD..T40197510-197908

main33530-12151iTE47..LHD..T50197408-197510

main33530-12152iTE47,51..LHD..T50197510-197908

main33530-12161iKE35..LHD..K50197408-197510

main33530-12162iKE35..LHD..K50197510-197606

main33530-12180iKE30,35,5#..RHD..K50197606-198107

main33530-12190iKE30,35,50..LHD..K50197606-197908

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-40124iKE3#,5#..K40197408-198107

main90521-49001iKE30,35,5#..K50197606-198107

33555BOOT, SHIFT LEVER

main33555-10010iKE30,35,5#..K50197606-198107

main33555-12030iKE3#,5#..K40197408-198107

main33555-12060iKE30,35,TE31,51..ATM197408-197701

main33555-12061iKE30,35,TE31,51..ATM197701-198004

main33555-14010iTE3#,47,51..MTM197408-198004

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-10010iKE30,35,5#..K50197606-198107

main33584-12030iKE3#,5#..K40197408-198107

main33584-14010iKE35..K50197408-197606

9161140825

main91611-40825

7 parts on this diagram · 8 diagrams in section
