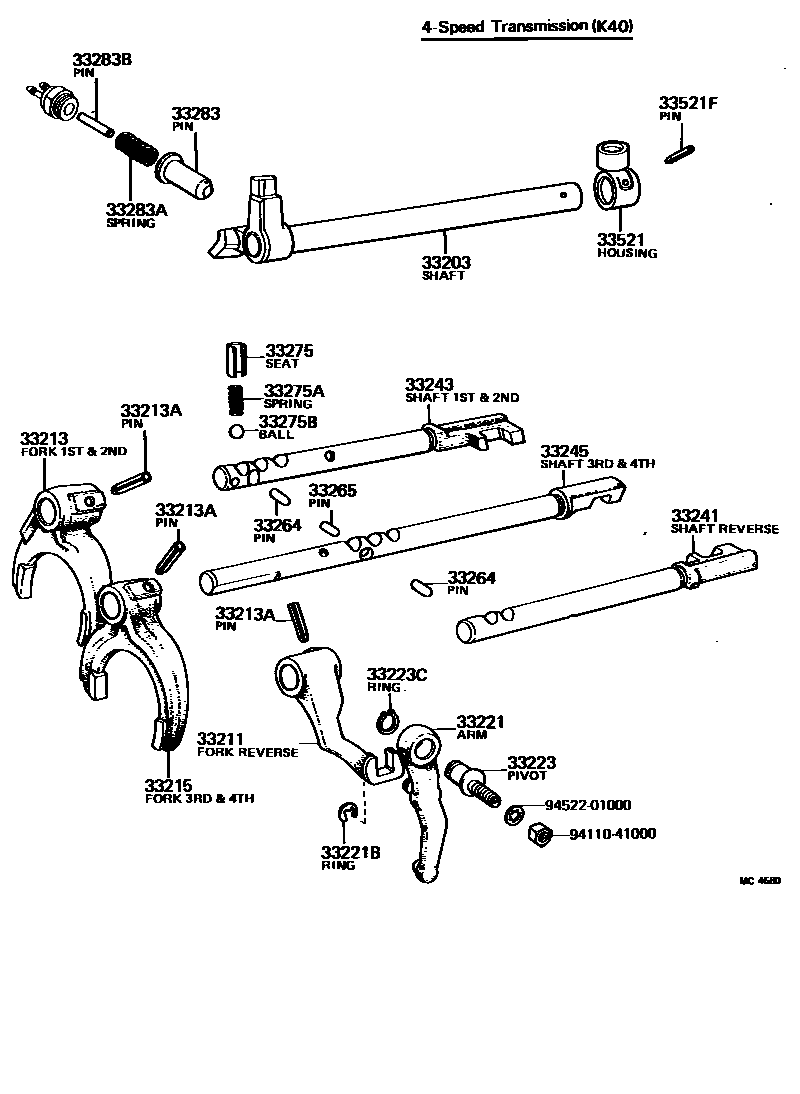

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-12030iKE3#,5#..K40197408-198107

main33251-10041iKE30,35,5#..K50197606-198107

33211FORK, REVERSE SHIFT

main33211-10020iKE30,35,5#..K50197606-198107

main33211-12010iKE3#,5#..K40197408-198107

main33214-14010iTE3#,47,51..MTM197408-198004

33213FORK, 1ST & 2ND SHIFT

main33212-14010iKE35..K50197408-198004

main33213-12010iKE3#,5#..MTM197408-198107

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKE3#,5#,TE3#,47,51..MTM197408-198107

33215FORK, 3RD & 4TH SHIFT

main33213-14010iTE3#,47,51..MTM197408-198004

main33215-12011iKE3#,5#..MTM197408-198107

33221ARM, REVERSE SHIFT

main33221-12010iKE3#,50..K40197408-198107

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-00800iKE3#,5#..K40197408-198107

33223PIVOT, SHIFT ARM

main33223-12010iKE3#,50..K40197408-198107

33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)

main96150-01300iKE3#,5#..MTM197408-198107

33241SHAFT, REVERSE SHIFT FORK

main33241-10020iKE30,35,5#..K50197606-198107

main33241-12030iKE3#,5#..K40197408-198107

main33244-14010iTE3#,47197408-198004

main33244-14030iTE3#,47,51..T50197511-198004

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-10011iKE30,35,5#..K50197606-198004

sub33242-10012

sub90501-16031

main33242-10012iKE55..K50198004-198107

main33242-14010iKE35..K50197408-198004

main33243-12030iKE3#,5#..K40197408-198004

sub33243-12031

sub90501-16031

main33243-12031iKE3#,55..K40198004-198107

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-10021iKE30,35,5#..K50197606-198107

main33243-14010iTE3#,47197408-197511

sub33243-14011

main33243-14011iTE3#,47,51..MTM197511-198004

main33245-12030iKE3#,55..K40197408-198107

sub33245-12031

main33245-12040iKE36,38,55..K40..(ARL,SA)197808-198010

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05197iKE3#,50..K40197408-198107

L=9.9,OD=5

main90250-06188iKE35..K50197408-198004

L=10.8,OD=6

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05197iKE3#,50..K40197408-198107

L=9.9,OD=5

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12010iKE3#,5#,TE3#,47,51..MTM197408-198107

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14050iKE3#,55..MTM198004-198007

WD=1.4

sub90501-14237

main90501-14237iKE3#,55..MTM198007-198107

L=16.1,WD=1.4

main90501-14237iKE35..K50197408-198004

L=16.1

main90501-16031iKE3#,5#..MTM197903-198007

WD=1.6

sub90501-14237

main90501-16288iKE3#,5#..MTM197408-197903

sub90501-16031

33275BBALL, SHAFT DETENT

main90360-10003iKE3#,5#,TE3#,47,51..MTM197408-198107

33283PIN, REVERSE RESTRICT, NO.1

main33283-12020iKE3#,5#..K40197408-198107

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main90501-16553iKE3#,5#..K40197408-198107

main90504-08001iKE30,35,5#..K50197606-198107

33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)

main90250-05182iKE3#,5#..K40197408-198107

33521HOUSING, SHIFT LEVER

main33521-10140iKE30,35,5#..K50197606-198107

main33521-12040iKE3#,5#..K40197408-198107

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90254-05001iKE3#,50..K40197408-198107

9411041000

main94110-41000

9452201000

main94522-01000

24 parts on this diagram · 3 diagrams in section
