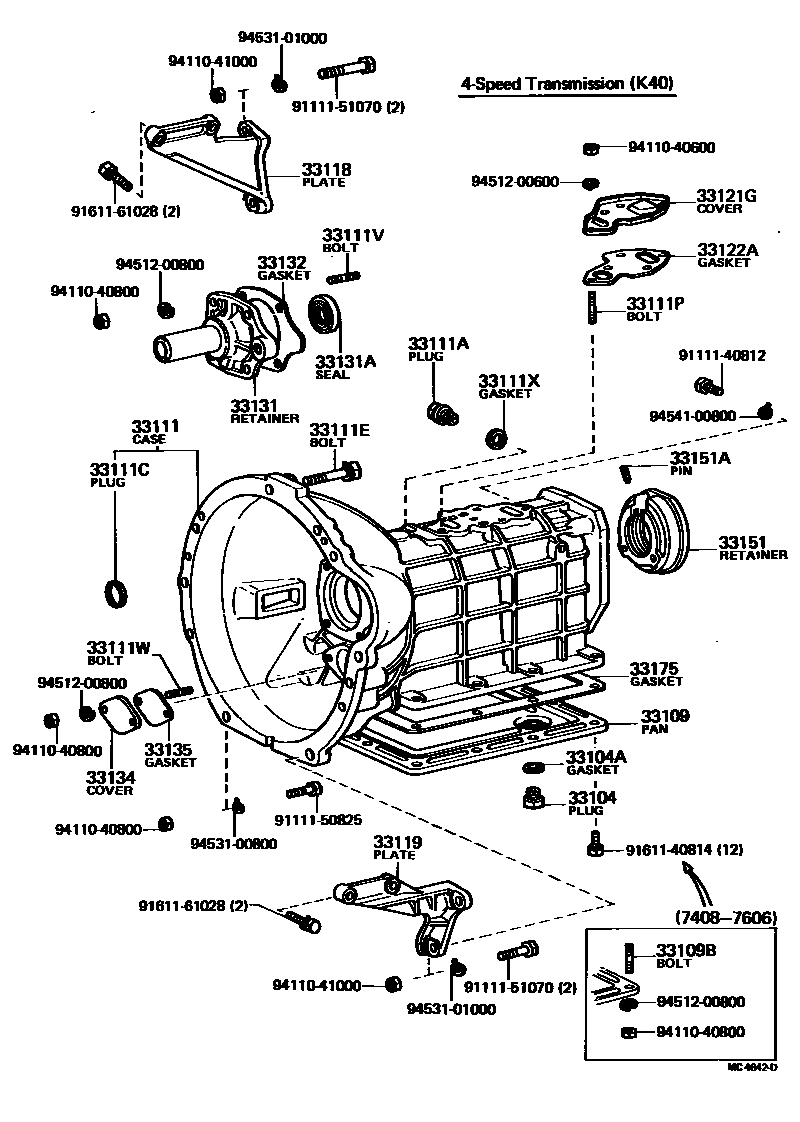

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iKE3#,50..K40197408-198107

main90341-18081iTE3#,47,51..MTM197408-198004

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iKE3#,5#,TE3#,47,51..MTM197408-198107

33109PAN SUB-ASSY, TRANSMISSION OIL(MTM)

main33109-12011iKE3#,50..K40197408-198107

sub33109-12012

33109BBOLT(FOR MANUAL TRANSMISSION OIL PAN SETTING)

main90116-08039iKE3#,50..K40197408-197606

33111CASE, MANUAL TRANSMISSION

main33101-12040iKE30,35,36,50..K40197408-197901

sub33101-12H00

main33101-12060iKE38,55..K40197808-197901

sub33101-12H01

main33101-12080iKE30,35,36,50..K40197901-197903

main33101-12100iKE38,55..K40197901-197903

main33101-12110iKE30,35,36,50..K40197903-198107

sub33101-12111

sub33245-12031

main33101-12120iKE38,55..K40197903-198010

main33101-14011iTE3#,47197408-197511

sub33101-14030

sub12157-10010

sub90341-18049

main33101-14020iTE3#,47,51..T50197511-198004

main33101-14030iTE31,47,51..T40197511-198004

sub33101-14020

sub90341-18006

sub90430-18008

main33111-10031iKE30,35,5#..K50197606-197901

sub33111-10H00

main33111-10032iKE30,35,50..K50197901-197903

main33111-10040iKE55..K50197901-197903

main33111-12110iKE55..K50197903-198107

sub33111-12111

sub33275-10021

main33111-12130iKE55..K50197903-198008

sub33111-12131

sub33275-10021

main33111-12131iKE55..K50198008-198010

sub33111-10060

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iKE3#,5#,TE3#,47,51..MTM197408-198107

33111CPLUG(FOR TRANSMISSION CASE)

main90341-18049iKE30,35,50..K50197606-197903

main96411-11400iKE3#,5#..K40197408-198107

sub96411-41400

33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)

main90119-12004iKE3#,5#..MTM197708-198107

*12-1.25PX62.5-30

main91619-61265iKE3#,50..MTM197408-197708

*12-1.25PX65-30

33111PBOLT, STUD(FOR TRANSMISSION CASE COVER SETTING)

main90116-06200iKE3#,5#..K40197408-198004

33111VBOLT(FOR FRONT BEARING RETAINER SETTING)

main90116-08009iKE3#,5#..K40197408-197901

33111WBOLT(FOR COUNTERSHAFT COVER SETTING)

main90116-08057iKE3#,5#..K40197408-197901

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iKE3#,5#,TE3#,47,51..MTM197408-198107

33118PLATE, STIFFENER, RH(MTM)

main33118-12020iTE3#,47,51..MTM197408-198004

main33118-12050iKE3#,5#..MTM197408-198107

33119PLATE, STIFFENER, LH(MTM)

main33119-12010iTE3#,47,51..MTM197408-197701

sub33119-12011

main33119-12011iTE3#,47,51..MTM197701-198004

main33119-12020iKE3#,50..MTM197408-197705

sub33119-12H00

main33119-12021iKE3#,5#..MTM197705-198107

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-10011iKE30,35,5#..K50197606-197901

main33121-12010iKE3#,5#..K40197408-197901

main33121-12020iKE3#,5#..K40197901-198107

main33121-12031iKE30,35,5#..K50197901-198107

main33121-14010iKE35..K50197408-198004

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-10010iKE30,35,5#..K50197606-197901

main33122-12010iKE3#,5#..K40197408-197901

main33122-12020iKE30,35,5#..K40197901-198107

main33122-12031iKE30,35,5#..K50197901-198107

main33122-14010iKE35..K50197408-198004

33131RETAINER, BEARING, FRONT(MTM)

main33131-10040iKE35..K50197408-197606

main33131-10051iKE35,50..K50197606-197708

sub33131-10052

main33131-10052iKE30,35,5#..K50197708-197903

main33131-12030iKE3#,50..K40197408-197708

sub33131-12031

main33131-12031iKE3#,5#..K40197708-198107

main33131-12040iKE3#,5#..K40197903-198001

sub33131-12031

main33131-12050iKE30,35,5#..K50197903-198107

main33131-14010iTE3#,47,51..MTM197408-198004

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-25003iKE3#,5#,TE3#,47,51..MTM197803-198107

main90311-25141iKE3#,50,TE3#,47,51..MTM197408-197803

sub90311-25003

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-10020iKE35..K50197408-197606

main33132-10030iKE30,35,5#..K50197606-197903

main33132-12030iKE3#,5#..K40197408-198107

T=0.5

main33132-12050iKE30,35,5#..K50197903-198107

main33132-14010iTE3#,47,51..MTM197408-198004

main33133-12030iKE3#,5#..K40197408-198107

T=0.3

33134COVER, TRANSMISSION COUNTERSHAFT

main33134-12010iKE3#,5#..K40197408-198107

33135GASKET, COUNTERSHAFT COVER(MTM)

main33135-12010iKE3#,5#..K40197408-198107

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-12010iKE3#,5#..K40197408-198107

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iKE3#,5#..K40197408-198107

33175GASKET, MANUAL TRANSMISSION OIL PAN

main33175-12010iKE3#,50..K40197408-198107

9111140812

main91111-40812

9111150825

main91111-50825

9111151070

main91111-51070

9161140814

main91611-40814

9161161028

main91611-61028

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451200600

main94512-00600

9451200800

main94512-00800

9453100800

main94531-00800

9453101000

main94531-01000

9454100800

main94541-00800

37 parts on this diagram · 6 diagrams in section
