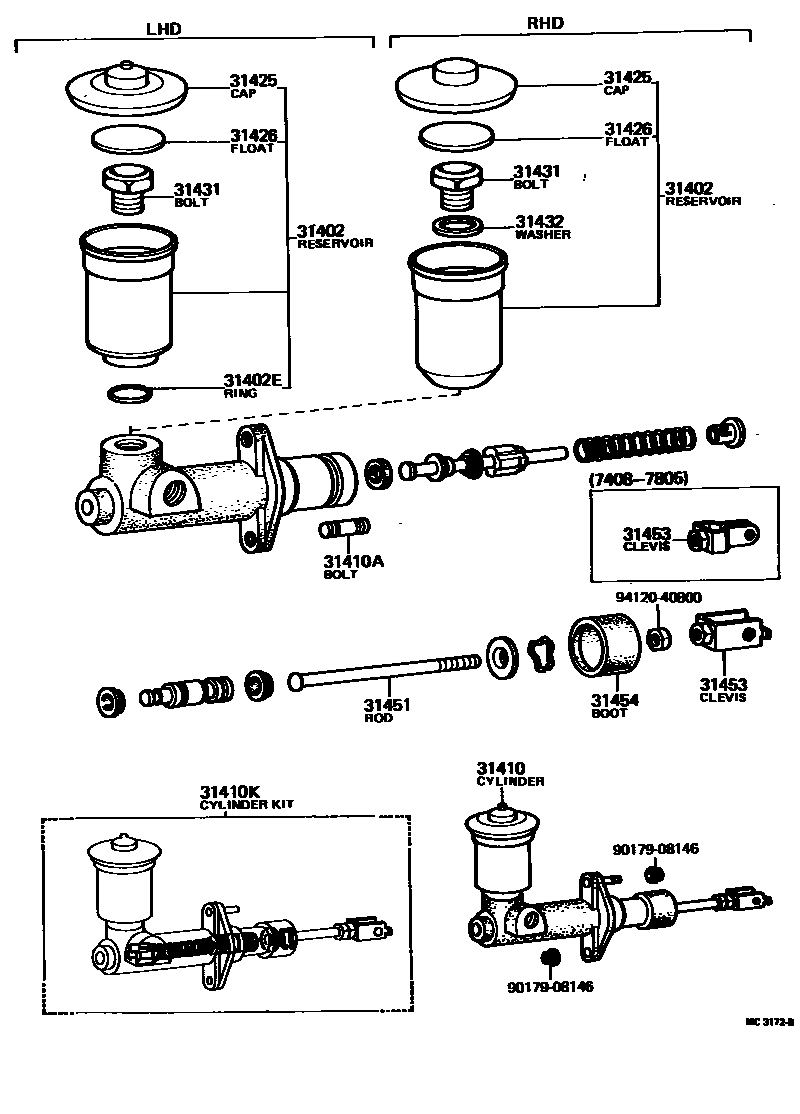

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iTE47,51..LHD..MTM197408-197908

main47202-12010iTE3#,47,51..RHD..MTM197408-198004

sub47202-12050

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iTE47,51..LHD..MTM197408-197908

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12030iTE3#,47,51..RHD..MTM197408-197805

sub31410-12270

main31410-12031iTE3#,47,51..RHD..MTM197805-198004

sub31410-12032

main31410-12050iTE47,51..LHD..MTM197805-197908

sub31410-12051

main31410-14030iTE47,51..LHD..MTM197408-197805

sub31410-14270

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08097iTE47,51..LHD..MTM197408-197908

main90116-08205iTE3#,47,51..RHD..MTM197408-198004

31410KCYLINDER KIT, CLUTCH MASTER

main04311-12020iTE3#,47,51..MTM197805-198004

sub04311-12021

main04311-14010iTE3#,47,51..MTM197408-197805

sub04311-14011

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iTE3#,51..RHD..MTM197903-198004

sub47230-20040

main47230-12011iTE3#,47,51..RHD..MTM197408-197903

sub31440-35010

main47230-20040iTE47,51..LHD..MTM197408-197908

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iTE3#,47,51..MTM197408-198004

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iTE47,51..LHD..MTM197408-197908

main47231-30010iTE3#,47,51..RHD..MTM197408-198004

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iTE3#,47,51..RHD..MTM197408-198004

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12030iTE3#,47,51..RHD..MTM197408-198004

main31451-14010iTE47,51..LHD..MTM197408-197908

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iTE3#,47,51..MTM197805-198004

sub31453-35010

main47264-10011iTE3#,47,51..MTM197408-197805

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iTE3#,47,51..MTM197408-198004

9017908146

main90179-08146

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
