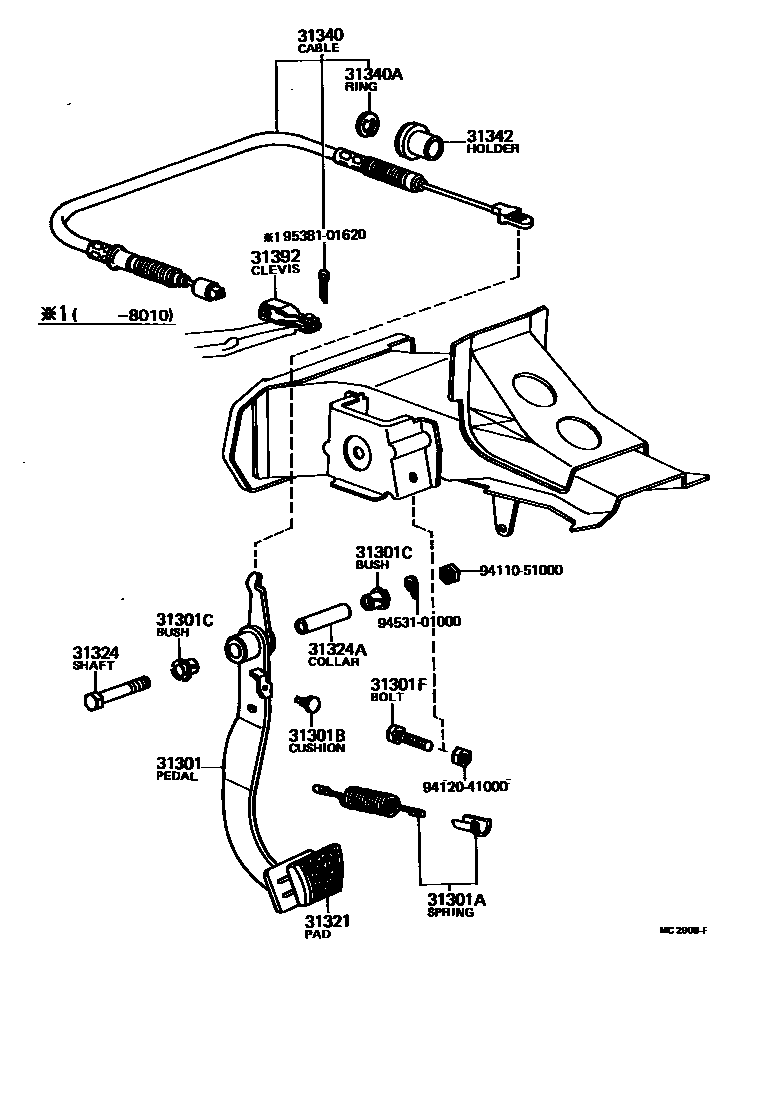

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12080iKE3#,5#..RHD..MTM197408-198107

main31301-12090iTE3#,47,51..RHD..MTM197408-197805

main31301-12091iTE3#,47,51..RHD..MTM197805-198004

main31301-12100iKE30,35,36,50..LHD..MTM197408-198002

main31301-12110iTE47,51..LHD..MTM197408-197805

main31301-12111iTE47,51..LHD..MTM197805-197908

31301ASPRING(FOR CLUTCH PEDAL)

main90506-16477iKE3#,TE3#,47..MTM197408-197507

sub90507-16001

main90507-16001iKE3#,5#,TE3#,47,51..MTM197507-198107

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iKE3#,5#,TE3#,47,51..MTM197408-198107

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iKE3#,5#,TE3#,47,51..MTM197408-198107

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iKE3#,5#,TE3#,47,51..MTM197408-198107

31321PAD, CLUTCH PEDAL

main31321-12030iKE3#,5#,TE3#,47,51..MTM197408-198107

31324SHAFT, CLUTCH PEDAL

main90101-10015iKE3#,5#,TE3#,47,51..MTM197507-198107

main90101-10039iKE3#,TE3#,47..MTM197408-197507

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKE3#,5#,TE3#,47,51..MTM197408-198107

31340CABLE ASSY, CLUTCH RELEASE

main31340-19145iKE3#,5#..RHD..MTM197408-198107

main31340-19155iKE30,35,36,50..LHD..MTM197408-198002

31340ARING, E(FOR CLUTCH RELEASE CABLE)

main96160-01200iKE3#,5#..MTM197408-198107

31342HOLDER, CLUTCH CABLE, INNER

main31342-12901iKE3#,5#..MTM197408-198107

31392CLEVIS, CLUTCH CABLE

main31392-10010iKE3#,5#..MTM197408-198107

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

9538101620

main95381-01620

16 parts on this diagram · 4 diagrams in section
