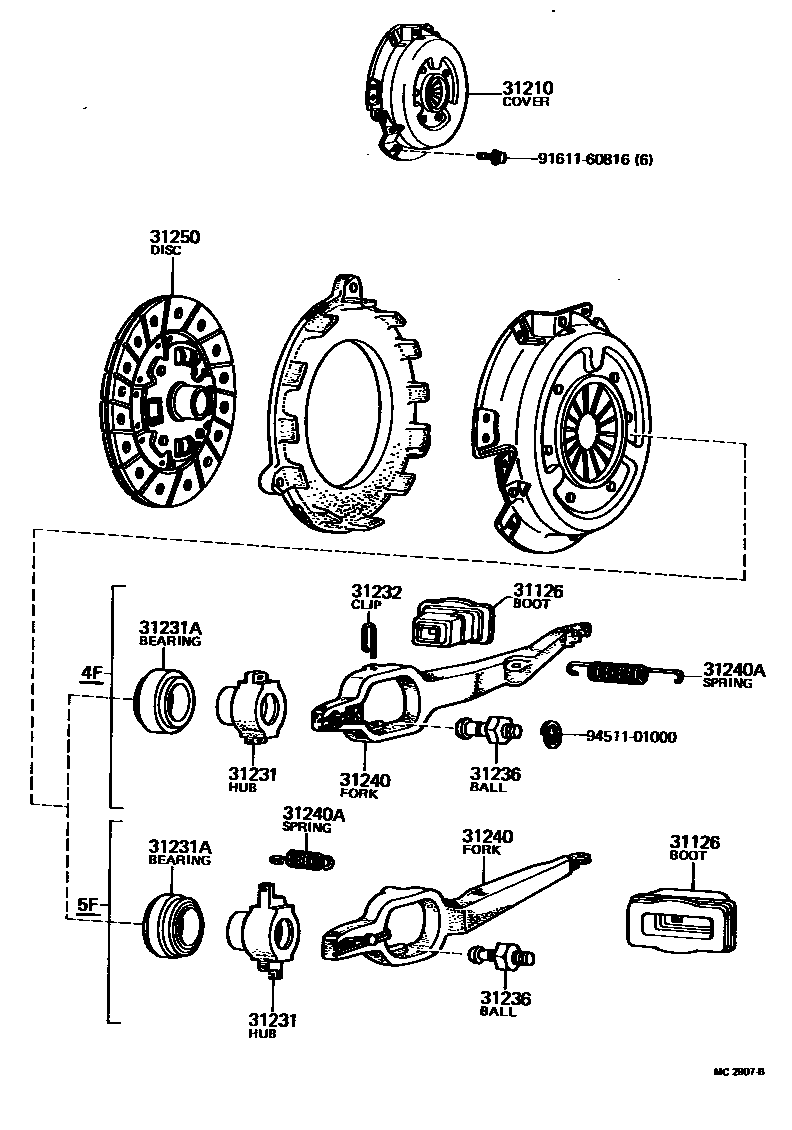

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-10021iKE35..K50197408-197606

main31126-10030iKE30,35,5#..K50197606-197903

main31126-12020iKE3#,5#..K40197408-198107

main31126-12040iKE30,35,5#..K50197903-198107

main31126-20040iTE3#,47,51..MTM197408-197708

main31126-22040iTE3#,47,51..MTM197708-198107

31210COVER ASSY, CLUTCH

main31210-12040iKE3#,50..MTM197408-197708

main31210-12041iKE30,35,36,50..MTM197708-197908

main31210-12042iKE30,36197908-198008

main31210-12043iKE30,36198008-198107

main31210-12050iKE38,55..MTM197805-197908

main31210-12051iKE38,55..MTM197908-198008

main31210-12052iKE38,55..MTM198008-198107

sub31210-12053

main31210-14012iTE3#,47,51..MTM..(DLX,GSL,LT,SR,ST,STD)197803-197907

main31210-14013iTE3#,51..MTM197907-197908

main31210-14032iTE47..GT197803-197902

sub31210-14033

main31210-14070iTE3#..MTM197908-198004

sub31210-14100

main31210-14080iTE3#,47,51..MTM..(DLX,GSL,LT,SR,ST,STD)197408-197803

main31210-14090iTE47..GT197408-197803

31231HUB, CLUTCH RELEASE BEARING

main31231-12030iKE3#,50..K40197408-197606

main31231-12031iKE3#,5#..MTM197708-198010

sub31231-12032

main31231-12033iKE3#,55..MTM198010-198107

main31231-12040iKE35..K50197408-197606

main31231-14011iTE3#,47,51..MTM197408-197612

main31231-14012iTE3#,47,51..MTM197612-197708

main31231-14030iTE3#,47,51..MTM197708-198004

sub31231-14031

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-33002iKE3#,5#..MTM197808-198107

sub90363-33004

main90363-33080iKE3#,50..K40197408-197606

main90363-38084iKE35..K50197408-197606

main90363-40001iTE3#,47,51..MTM197708-198002

main90363-40008iTE3#..MTM198002-198004

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010×2iKE3#,5#..MTM197606-198107

main31232-22010×2iTE3#,47,51..MTM197708-198004

main31232-30010×2iTE3#,47,51..MTM197408-197708

31236BALL, RELEASE FORK

main31236-20020iTE3#,47,51..MTM197408-198004

sub31236-30060

main31236-30030iKE3#,5#..MTM197408-198107

31240FORK ASSY, CLUTCH RELEASE

main31204-10030iKE35..K50197408-197606

main31204-10040iKE30,35,5#..K50197606-198010

main31204-12010iKE3#,5#..K40197408-198010

main31204-12011iKE3#,55..K40198010-198107

main31204-12031iKE55..K50198010-198107

main31204-20040iTE3#,47,51..MTM197408-197708

main31204-22030iTE3#,47,51..MTM197708-198004

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14139iKE3#,50..K40197408-197606

main90506-14428×2iKE35..K50197408-197606

main90506-16402iTE3#,47,51..MTM197408-197708

sub90506-16004

31250DISC ASSY, CLUTCH

main31250-10030iKE35..K50197408-197606

sub31250-10031

main31250-12021iKE3#,5#..MTM197606-198107

main31250-12040iTE3#,47,51..MTM197702-197708

main31250-12070iKE3#,55..MTM198012-198107

sub31250-12071

main31250-14010iTE3#,47,51..MTM197408-197702

main31250-14090iTE3#,47,51..MTM197708-198004

sub31250-14091

9161160816

main91611-60816

9451101000

main94511-01000

11 parts on this diagram · 4 diagrams in section
