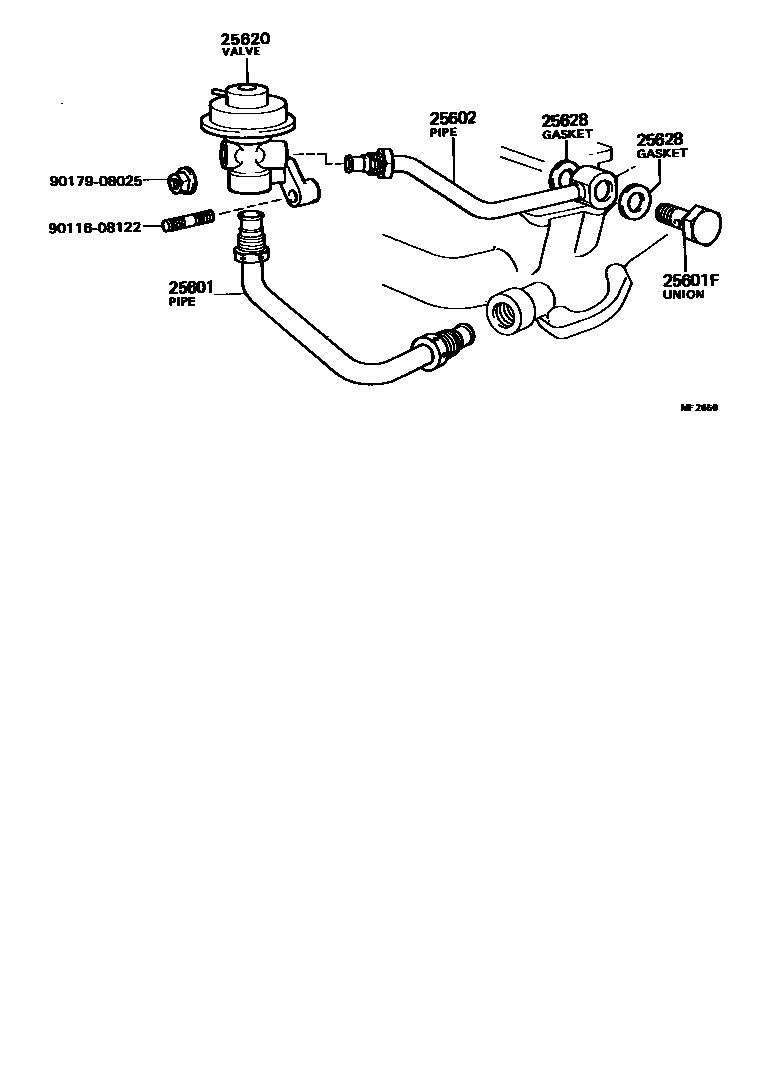

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-13030i4KC..KE38,55198012-198107

25601FUNION(FOR EGR PIPE, NO.1)

main90401-18005i4KC..KE38,55198012-198107

25602PIPE SUB-ASSY, EGR, NO.2

main25602-13010i4KC..KE38,55198012-198107

25620VALVE ASSY, EGR

main25620-13110i4KC..KE38,55..MTM198012-198107

sub25620-13111

main25620-13120i4KC..KE55..3FC198012-198107

sub25620-13121

25628GASKET, EGR INLET

main90430-18006i4KC..KE38,55198012-198107

9011608122

main90116-08122

9017908025

main90179-08025

7 parts on this diagram · 1 diagram in section
