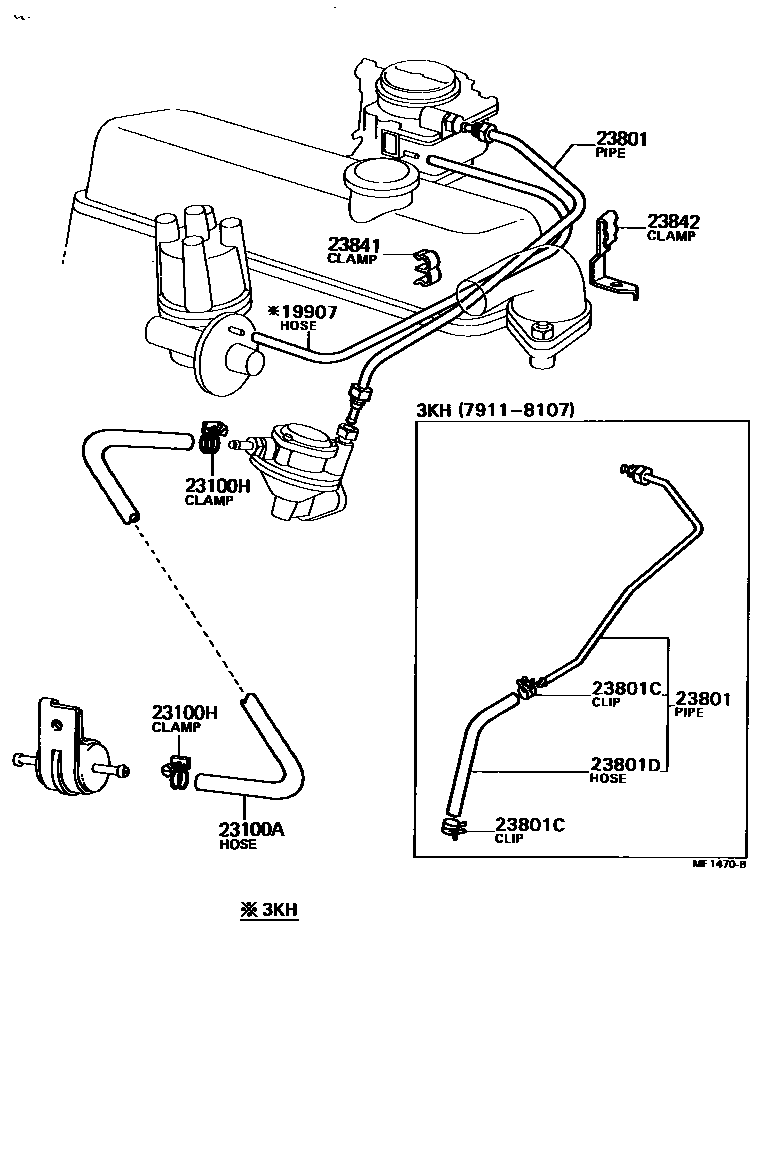

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

19907HOSE, VACUUM, NO.1

main90445-07003i3KB..KE35197408-197601

main90445-07004i3KH..KE3#197408-197601

main90445-07118i2TG..TE47197408-197805

L=210

main90445-07127i2T..TE3#,47197408-197511

main90445-07136i2TB..TE47197408-197511

main95411-19930i2TB..TE3#197701-198004

*H,L=280

sub90999-92002

main95411-19960i3KB..KE35197601-197908

*H,L=450

sub90999-92003

23100AHOSE, FUEL

main90445-12061i3K#,4KC..KE3#,5#197805-198107

main90447-12006i2TG..TE47197808-197902

CLAMP TO PUMP

main95331-06019×2i2T,2TB..TE3#,47,51197701-197702

L=190

main95331-06026i2T#..TE3#,47,51197408-197701

CLAMP TO PUMP,L=260

main95331-06030i2T#..TE47197408-197410

FILTER TO CLAMP,L=300

main95331-06034i2T#..TE3#,47,51197410-197701

FILTER TO CLAMP,L=340

sub95332-06034

main95331-06038i3K#..KE3#,50197408-197705

L=380

main95332-06016×2i2T,2TB..TE3#,47,51197707-197904

L=160

main95332-06020×2i2T#..TE3#,51197904-198004

*H,L=160

sub95333-06020

main95332-06024×2i2TG..TE47197808-197902

FILTER TO CLAMP

main95332-06026×2i2TG..TE47197703-197804

L=260

main95332-06038i3K#..KE3#,50197705-197805

L=380

sub95332-06040

23100HCLIP(FOR FUEL HOSE)

main96132-30600×4i2T#..TE3#,47,51197408-197911

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-13010i4KC..KE38,55197808-198107

main23801-24011i3KC,3KH..KE30,35,36,50197408-197911

main23801-24022i3KB..KE35197408-197908

main23801-24060i3KH..KE30,36197911-198107

main23811-88220i2TG..TE47197408-197902

main95331-06026i2TB..TE37,47,51197607-197904

*H,L=260

main95331-06030i2T..TE3#,47,51197607-198004

*H,L=300

main95332-06030i2TB..TE3#,51197904-198004

L=300(*H,L=260)

sub95333-06030

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i2T,2TB..TE3#,47,51197408-198004

sub96132-51100

23801DHOSE, FUEL PIPE, NO.1

main95331-06006i3KH..KE30,36197911-198107

*H,L=60

sub95332-06006

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23801-25010i2T,2TB..TE3#,47,51..MTM197701-197707

main23801-25021i2T..TE31,51..A40197701-197707

main23801-25022i2T,2TB..TE3#,47,51197707-198004

main23801-26020i2TG..TE47197611-197808

main23801-26021i2TG..TE47197808-197902

main23841-25020i2T,2TB..TE3#,47,51197408-197701

main23841-26011i2TG..TE47197408-197611

main23842-11010i3KH,3KB..KE3#197408-197601

sub90464-00233

main90464-00082i3KC..KE3#197508-197601

23842CLAMP, FUEL PIPE(HOSE), NO.2

main90461-08532i3K#,4KC..KE3#,5#197408-198107

8 parts on this diagram · 7 diagrams in section
