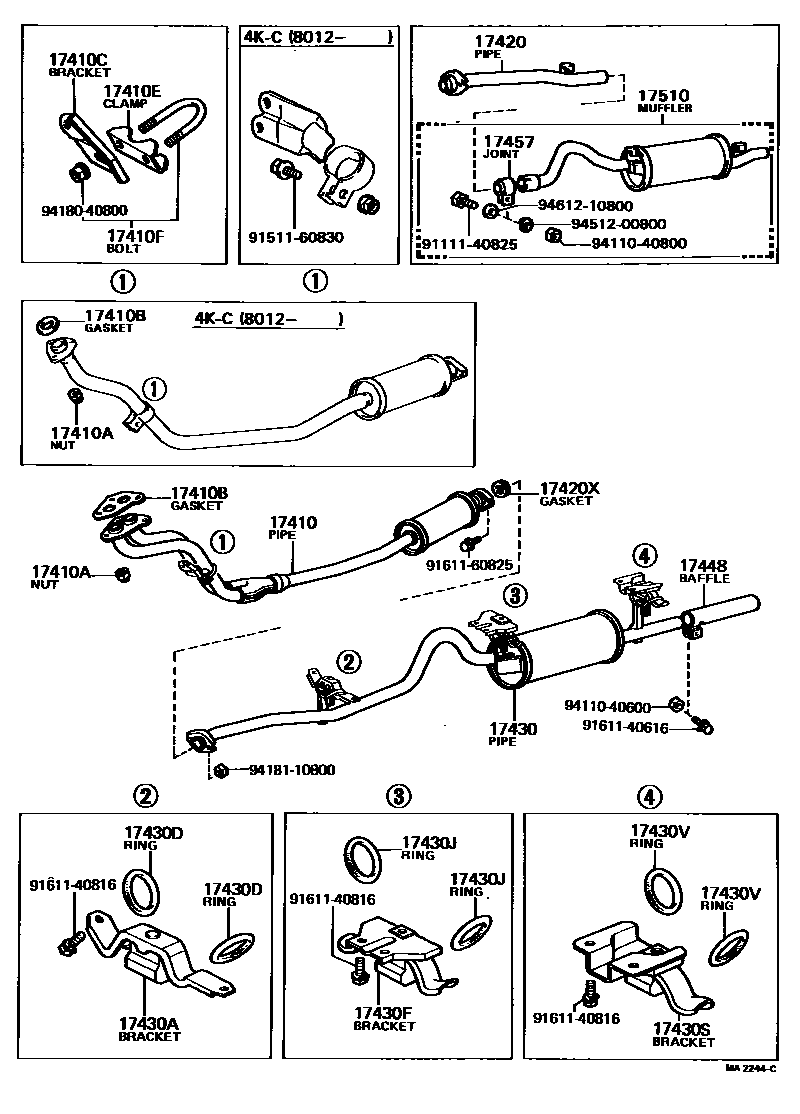

EXHAUST PIPE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-13040i4KC..KE38,55197808-198012

main17410-24100i3K#..KE3#,50197408-197708

sub17410-24101

sub17571-24041

main17410-24101i3KB..KE35197708-198107

main17410-24220i3KC,3KH..KE30,35..EUR197902-197908

main17410-25060i2T..TE3#,47,51197408-197908

main17410-26070i2TB,2TG..TE3#,47197408-198004

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-10199i3K#,2T#..KE3#,50,TE3#,47,51197511-197701

main90179-10010i3K#,4KC,2T#..KE3#,5#,TE3#,47,51197701-198107

main90179-10118i3K#,2T#..KE3#,TE3#,47197408-197511

17410BGASKET, EXHAUST PIPE

main17451-22010i3K#,4KC..KE3#,5#197408-198107

sub17451-13010

main17451-41020i2T#..TE3#,47,51197408-198004

sub17451-28010

main90917-06020i4KC..KE38,55198012-198107

sub90917-06044

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-13040i4KC..KE38,55197808-198012

main17571-24040i3K#..KE3#,50197408-197708

sub17571-24041

main17571-24041i3K#..KE30,35,36,50197708-198107

main17571-25030i2T#..TE3#,47,51197408-198004

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04019i3KH..KE30197408-198107

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90117-08199i4KC..KE38,55197808-198012

main90118-08136i3K#..KE30,35,36,50197408-198107

sub90117-08199

sub94180-40800

17420PIPE ASSY, EXHAUST, CENTER

main17403-24030i3KC,3KH,2T,2TB..KE50,TE51..ARL,GEN197603-197908

sub17403-24040

main17403-24040i4KC..KE55..K50197603-197908

ALUMINIZED

main17456-24040i3K#,2T..KE30,35,TE3#,47197408-197511

main17456-24050i3KC,3KH..KE36197408-197511

main17456-26010i2TB,2TG..TE47197408-197511

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06001i3KH,2T,2TB..KE50,TE51197603-197908

REAR

sub90917-06038

main90917-06001i3K#,2T..KE30,35,36,50,TE3#,47,51197408-198107

FRONT

sub90917-06038

main90917-06001i4KC..KE38,55197808-198107

sub90917-06038

main90917-06004i2TB,2TG..TE3#,47197408-198004

sub90917-06039

17430PIPE ASSY, EXHAUST, TAIL

main17405-24040i3KC,3KH,2T,2TB..KE50,TE51..ARL,GEN197603-197908

sub17405-24050

main17405-24050i3KH,2T,2TB..KE50,TE51197603-197908

ALUMINIZED

main17405-24050i4KC..KE55..K50197808-197908

main17430-24090i3K#..KE30,35197408-198107

main17430-24100i3KC,3KH..KE36..ARL,GEN,SA197408-198002

main17430-24140i3K#..KE30,35..EUR197408-197805

ALUMINIZED

main17430-24150i3KC,3KH..KE36197408-198107

ALUMINIZED

main17430-24310i3K#..KE30,35..EUR197805-198107

ALUMINIZED

main17430-25110i2T..TE3#,47197408-197902

main17430-26080i2TB,2TG..TE3#,47..GEN,SA197408-197908

main17430-26190i2TB,2TG..TE47197408-197902

ALUMINIZED

main17430-26200i2T..TE47..EUG197408-197902

ALUMINIZED

main17430-26590i2T#..TE3#197908-198004

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-24010i3K#,2T#..KE30,35,TE3#,47197408-198107

main17506-24020i4KC..KE38197408-198107

main17507-24060i3KC,3KH,2T,2TB..KE50,TE51197603-197908

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-41010i3KH,2T,2TB..KE50,TE51197603-197908

main90301-34172i3K#,2T#..KE3#,TE3#,47197408-197701

sub90301-34207

main90301-34207i2T#..TE3#197701-198107

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17507-24010i4KC..KE55..HT,SED197408-198107

main17507-24020i3KC,3KH..KE36197408-198107

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34172i3K#,2T#..KE30,35,36,TE3#,47197408-198107

sub90301-34207

main90301-34207i4KC..KE38,55..DV,HT,SED,WG197808-198107

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-24030i4KC..KE55..HT,SED197408-198107

main17508-24040i4KC..KE38197508-198107

main17508-24050i3KC,3KH,2T,2TB..KE50,TE51197603-197908

main17508-36011i3KH..KE36197408-197508

sub17508-24040

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-41010i3KC,3KH,2T,2TB..KE50,TE51197603-197908

main90301-34172i3K#,2T#..KE30,35,36,TE3#,47197408-198107

sub90301-34207

main90301-34207i4KC..KE38,55..DV,HT,SED,WG197808-198107

17448BAFFLE, TAILPIPE

main17448-22010i3KH,3KB..KE30,35..LHD197408-197908

WEST GERMANY SPEC

main17448-25010i2T#..TE3#197603-197908

main17448-25010i3KH..KE36,50..LHD197408-197908

WEST GERMANY SPEC

17457JOINT, EXHAUST PIPE

main17504-40010i3K#,2T..KE3#,TE3#,47197408-197511

17510MUFFLER ASSY

main17540-24050i3K#..KE30,35197408-197511

main17540-24060i3KC,3KH..KE36197408-197511

main17540-25040i2T..TE3#,47197408-197511

main17540-26010i2TB,2TG..TE47197408-197511

9111140825

main91111-40825

9151160830

main91511-60830

9161140616

main91611-40616

9161140816

main91611-40816

9161160825

main91611-60825

9411040600

main94110-40600

9411040800

main94110-40800

9418040800

main94180-40800

9418110800

main94181-10800

9451200800

main94512-00800

9461210800

main94612-10800

29 parts on this diagram · 7 diagrams in section
