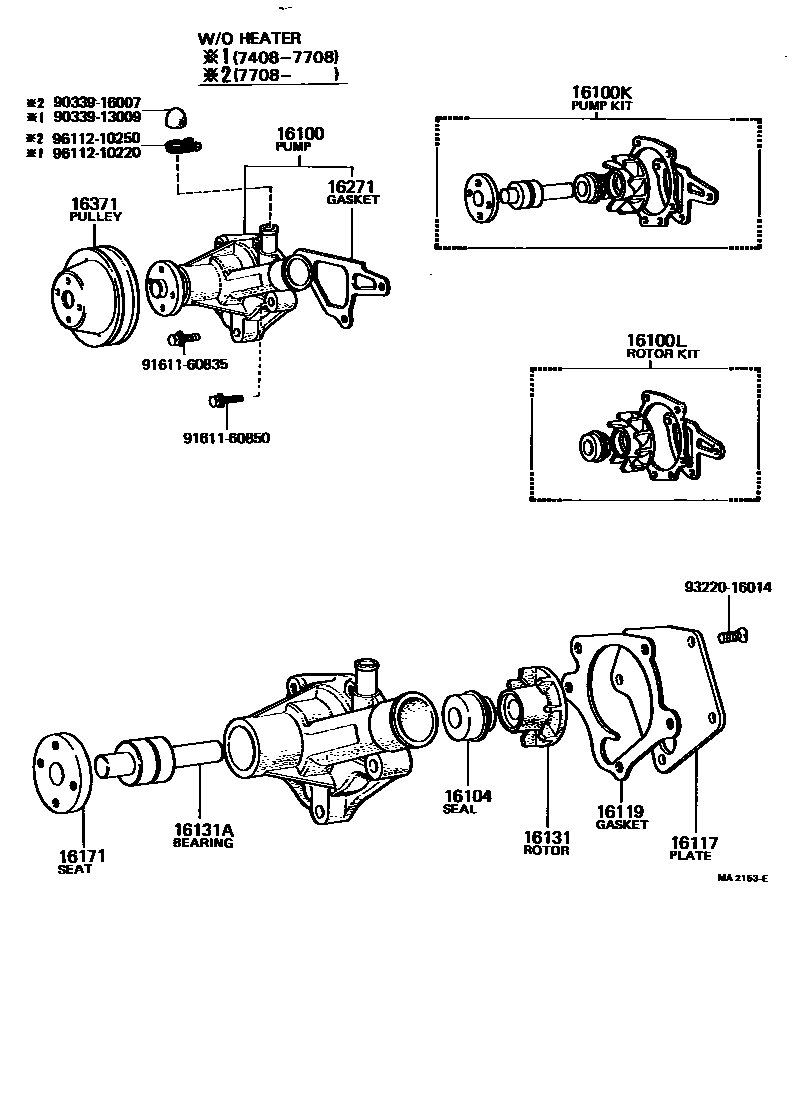

WATER PUMP

0001 1 0002 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-19015i3K#,4KC..KE3#,5#197708-198107

sub16100-19016

main16100-25012i2T,2TB..TE3#,47,51197408-198004

main16100-28010i2T,2TB..TE47,51197708-197801

sub16100-28020

main16100-28020i2T,2TB..TE47,51197801-197908

main16100-29045i3K#..KE3#,50197408-197707

sub16100-29046

main16100-29046i3KH,3KB..KE3#,50197707-197805

sub16100-29047

main16100-88221i2TG..TE47197408-197902

16100KPUMP KIT, WATER

main04161-13010i3K#,4KC..KE3#,5#197707-198107

sub04161-13011

main04161-24010i3K#..KE3#197408-197507

sub04161-24011

main04161-24011i3K#..KE3#,50197507-197707

main04161-28010i2T,2TB..TE47,51197708-197908

sub04161-28011

16100LROTOR KIT, WATER PUMP

main04162-13010i3K#,4KC..KE3#,5#197707-198107

sub04162-13011

main04162-22011i3K#..KE3#197408-197507

sub04162-22012

main04162-22012i3K#..KE3#,50197507-197707

main04162-25011i2T#..TE3#,47197408-197507

sub04162-25012

main04162-25012i2T#..TE3#,47,51197507-198004

sub04162-28010

main04162-28010i2T#..TE47,51197708-197908

sub04162-28011

16104SEAL SET, WATER PUMP

main16104-22010i2T#..TE3#,47197408-198004

main16104-41110i2T,2TB..TE47,51197507-197908

sub16104-41111

main16104-41111i3K#,4KC..KE3#,5#197903-198107

sub16104-15020

16117PLATE, WATER PUMP

main16117-13010i3K#,4KC..KE3#,5#197707-198107

main16117-22011i3K#..KE3#,50197408-197707

16119GASKET, WATER PUMP BODY

main16124-22010i3K#,4KC..KE3#,5#197408-198107

sub16124-22011

16131ROTOR, WATER PUMP

main16131-13010i3K#,4KC..KE3#,5#197707-198107

sub16131-13011

main16131-22011i3K#..KE3#197408-197507

main16131-22012i3K#..KE3#197507-197603

sub16131-24030

main16131-24030i3K#..KE3#,50197603-197707

main16131-25011i2T#..TE3#,47,51197408-198004

main16131-26010i2T#..TE47,51197708-197908

16131ABEARING, WATER PUMP

main16140-38011i2T,2TB..TE47,51197708-197908

WPB16101ARS

sub90369-30066

main90369-30035i2T#..TE3#,47,51197408-198004

WPB16124RS

main90369-30063i3K#,4KC..KE3#,5#197408-198107

WPB16105BRS

16171SEAT, WATER PUMP PULLEY

main16171-24030i3K#..KE3#197408-197507

main16171-24031i3K#,4KC..KE3#,5#197507-198107

main16171-26021i2T,2TB..TE47,51197708-197908

main16171-31030i2T,2TB..TE3#197408-198004

16271GASKET, WATER PUMP

main16129-25010i2T#..TE3#,47,51197408-197904

sub16129-25011

main16129-25011i2T#..TE3#,51197904-198004

sub16129-25012

main16271-13020i3K#,4KC..KE3#,5#197812-198106

sub16271-13021

main16271-13021i3KH,4KC..KE3#,55198106-198107

sub16271-13030

main16271-22010i3K#,4KC..KE3#,5#197408-197812

sub16271-13020

16371PULLEY, FAN

main16173-28010i2T,2TB..TE47,51197708-197908

main16371-24040i3KH,3KB..KE30,35,36,50197609-198004

W/COOLER

main16371-24050i3K#,4KC..KE3#,5#197408-198107

main16371-25010i2TG..TE47197408-198004

main16371-25020i2T,2TB..TE47,51197408-197708

MTM=W/COOLER

9033913009

main90339-13009

9033916007

main90339-16007

9161160835

main91611-60835

9161160850

main91611-60850

9322016014

main93220-16014

9611210220

main96112-10220

9611210250

main96112-10250

18 parts on this diagram · 4 diagrams in section
