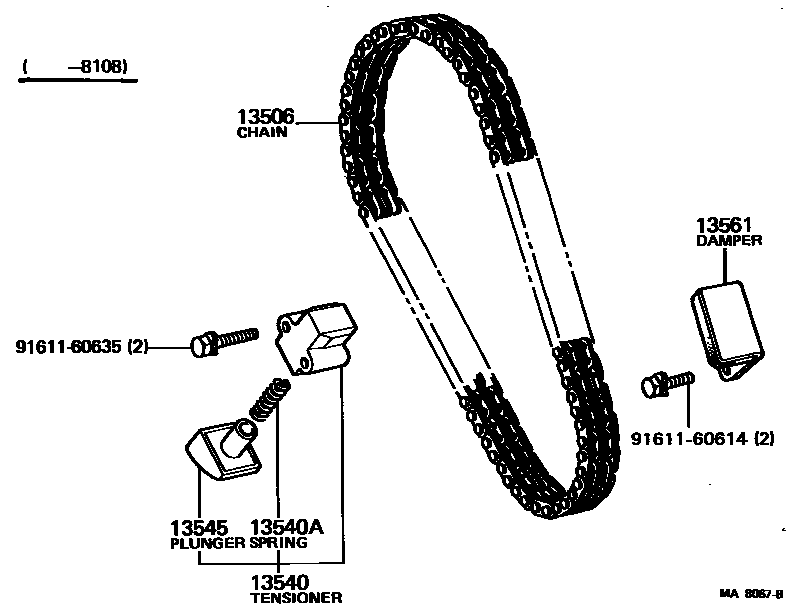

TIMING CHAIN

0001 1 0002 1 0003 1 0004 1

13506CHAIN SUB-ASSY

main13506-22010i3K#,4KC..KE3#,5#197408-198107

main13506-25010i2T#..TE3#,47,51197408-198004

sub13506-73010

13540TENSIONER ASSY, CHAIN, NO.1

main13540-22012i3K#,4KC..KE3#,5#197408-198107

main13540-25010i2T,2TB..TE3#,47,51197408-198004

main13540-88221i2TG..TE47197408-197902

13540ASPRING, COMPRESSION(FOR CHAIN TENSIONER)

main90072-50129i2TG..TE47197408-197902

main90501-10595i2T,2TB..TE3#,47,51197408-198107

13545PLUNGER, CHAIN TENSIONER

main13545-22010i3K#,4KC..KE3#,5#197408-198107

main13545-25010i2T#..TE3#,47,51197408-198004

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-22010i3K#,4KC..KE3#,5#197408-198107

main13561-25010i2T#..TE3#,47,51197408-198004

9161160614

main91611-60614

9161160635

main91611-60635

7 parts on this diagram · 4 diagrams in section
