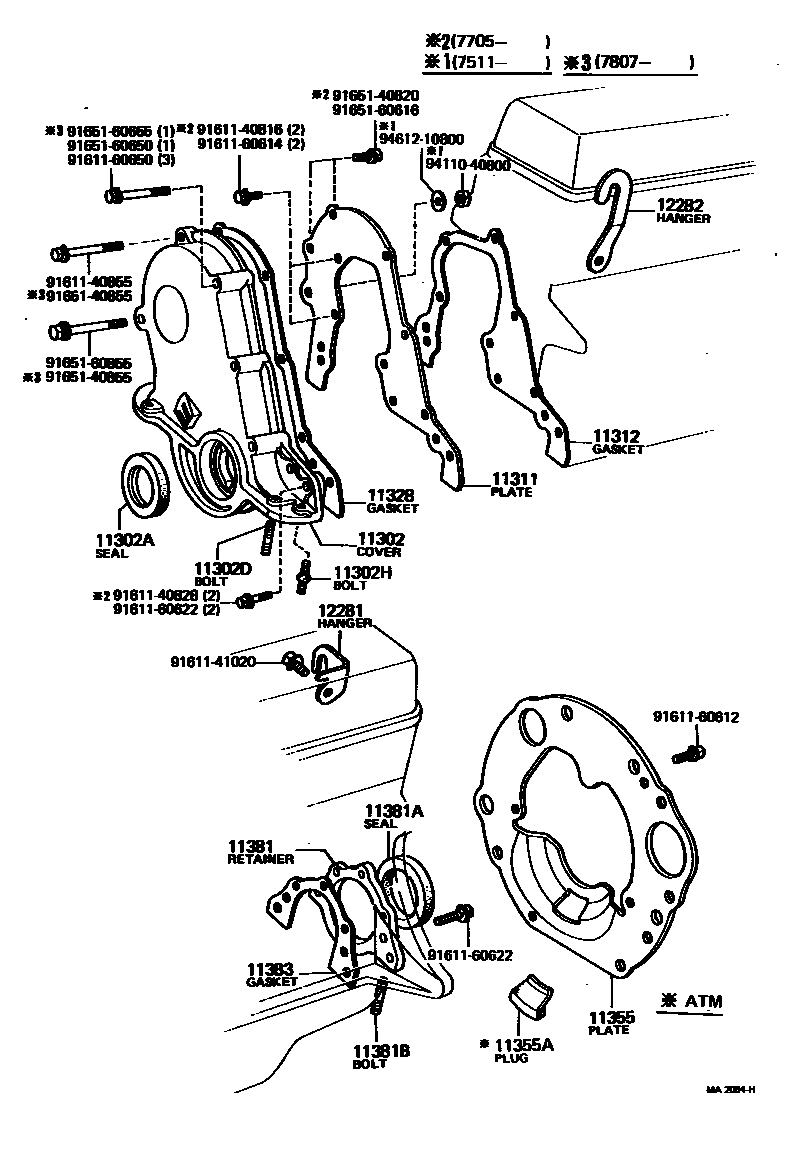

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-88220i2TG..TE47197408-197611

sub11321-88220

main11321-13010i3K#,4KC..KE3#,5#197705-197902

sub11321-13030

main11321-13030i3K#,4KC..KE3#,5#197902-198107

sub11321-13040

main11321-22012i3K#..KE3#197408-197511

sub11321-24031

main11321-24030i3KH..KE3#..RHD197408-197511

AUSTRALIA SPEC

main11321-24031i3K#..KE3#,50197511-197705

main11321-25010i2T..TE3#197408-198004

main11321-26010i2T,2TB..TE47,51197511-197708

sub11321-25010

main11321-28010i2T,2TB..TE47,51197708-197908

main11321-88220i2TG..TE47197611-197902

sub11321-88221

sub91611-40835

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38002i3K#..KE3#,50197411-197802

HTC3 38.5 58 11

sub90311-38013

main90311-38013i2T,2TB..TE3#,47,51197710-198107

HTC 38.5 58 11

main90311-38024i3K#..KE3#197408-197411

TC3 38.5 58 11

sub90311-38013

main90311-38111i2T#..TE3#,47,51197408-197902

HTC3 38.5 58 11

sub90311-38013

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06012i3K#,4KC..KE3#,5#197807-198107

L=23,S=7&7

main90116-08015i2TG..TE47197408-197902

L=37,S=13.5&13.5

main90116-08057i2T#..TE3#,47,51197408-198004

L=29,S=13&13

main92132-40616i3K#..KE3#,50197408-197802

L=28,S=10.5&10.5

main92132-60614i3K#..KE3#,50197802-197807

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90072-11618i2TG..TE47197408-197902

L=88,S=10&10

main90116-06006i3K#,4KC..KE3#,5#197802-198107

L=26.4,S=12&12

11311PLATE, FRONT END

main11311-13010i3K#,4KC..KE3#,5#197705-198107

main11311-22010i3K#..KE3#197408-197511

main11311-22011i3K#..KE3#,50197511-197705

11312GASKET, FRONT END PLATE

main11312-13010i3K#,4KC..KE3#,5#197705-198105

sub11312-13011

main11312-13011i3KH,4KC..KE3#,55198105-198107

sub11312-13040

main11312-22010i3K#..KE3#,50197408-197705

sub11312-24010

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-13010i3K#,4KC..KE3#,5#197705-198105

sub11328-13011

main11328-13011i3KH,4KC..KE3#,55198105-198107

sub11328-13030

main11328-22010i3K#..KE3#197408-197511

sub11328-24010

main11328-22011i3K#..KE3#,50197511-197705

sub11328-24020

main11328-25010i2T,2TB..TE3#,47,51197408-197904

sub11328-25011

main11328-25011i2T#..TE3#,51197904-198004

sub11328-25012

main11328-88220i2TG..TE47197408-197902

sub11328-88221

11355PLATE, REAR END

main11355-13010i3K#,4KC..KE3#,5#..MTM197708-198102

sub11355-13011

main11355-13011i3KH,4KC..KE3#,55..MTM198102-198107

sub11355-13012

main11355-24030i3K#..KE3#,50..MTM197408-197708

main11355-24040i3KH..KE30,35..A20197408-197708

main11355-24041i3KC,3KH,4KC..KE30,35,55..ATM197708-198102

sub11355-24042

sub90950-01343

main11355-24042i4KC..KE55..3FC198102-198107

sub11355-24043

main11355-25011i2T#..TE3#,47,51..MTM197408-198004

sub11355-25012

main11355-25022i2T..TE31,51..A40197503-198004

sub11355-25023

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01069i3KH..KE30,35..A20197408-197708

main90950-01160i2T..TE31,51..A40197503-198004

main90950-01215i3KC,3KH,4KC..KE30,35,55..ATM197708-198107

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13010i3K#,4KC..KE3#,5#197705-198107

main11381-24010i3K#..KE3#,50197408-197705

main11381-25010i2T#..TE3#,47,51197408-198004

11381ASEAL, ENGINE REAR OIL

main90311-70001i3K#,4KC..KE3#,5#197705-198107

HTC 70 92 12

sub90311-70004

main90311-70120i3K#..KE3#,50197408-197705

TC 70 92 12

sub90311-70001

main90311-75113i2T#..TE3#,47,51197408-198004

HTC 75 100 13

sub90311-75004

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06035i3K#,4KC..KE3#,5#197408-198107

L=23,S=12&9

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-13010i3K#,4KC..KE3#,5#197705-198107

main11383-22010i3K#..KE3#,50197408-197705

main11383-25010i2T#..TE3#,47,51197408-198004

12281HANGER, ENGINE, NO.1

main12281-13010i3K#..KE3#,50197706-197708

sub12281-13011

main12281-13011i3K#,4KC..KE3#,5#197708-198107

sub12281-13030

main12281-24011i3K#..KE3#,50197408-197706

sub12281-13010

main12281-25010i2T,2TB..TE3#,47,51197408-197701

main12281-26010i2T,2TB..TE3#,47,51197701-198004

main12281-88220i2TG..TE47197408-197902

12282HANGER, ENGINE, NO.2

main12281-25010i2T,2TB..TE3#,47197408-197701

main12281-26010i2TB..TE3#,47,51..RHD197701-198004

main12281-26020i2TB..TE47,51..LHD197708-197908

main12281-88220i2TG..TE47197408-197902

main12282-22011i3K#..KE3#197408-197603

sub12282-22012

main12282-22012i3K#,4KC..KE3#,5#197603-198107

main12282-88220i2TG..TE47..LHD197601-197902

9161140816

main91611-40816

9161140828

main91611-40828

9161140855

main91611-40855

9161141020

main91611-41020

9161160612

main91611-60612

9161160614

main91611-60614

9161160622

main91611-60622

9161160650

main91611-60650

9165140820

main91651-40820

9165140855

main91651-40855

9165160616

main91651-60616

9165160650

main91651-60650

9165160655

main91651-60655

9165160855

main91651-60855

9411040800

main94110-40800

9461210800

main94612-10800

31 parts on this diagram · 4 diagrams in section
