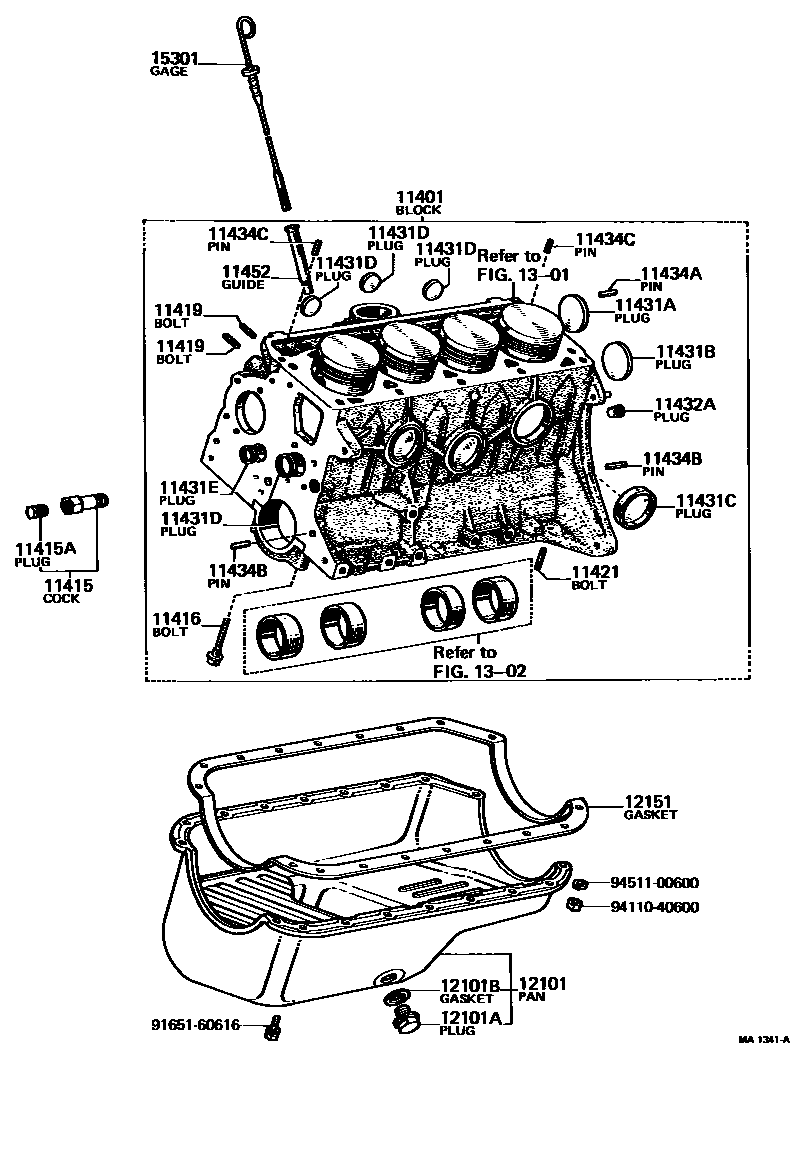

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19035i4KC..KE38,55197808-198103

main11401-19036i4KC..KE38,55198103-198107

sub11401-19037

main11401-29046i2T,2TB..TE3#,47197408-197511

main11401-29047i2TB..TE47197508-197511

sub11115-26031

main11401-29048i2TB..TE47,51197511-197608

main11401-29058i2TG..TE47197408-197805

sub11401-29445

main11401-29059i2TG..TE47197805-197902

sub11401-29455

main11401-29095i3K#..KE3#197408-197511

sub13011-24011

main11401-29096i3K#..KE3#,50197511-197705

sub11311-13010

sub11312-13011

sub11321-13040

sub11328-13011

sub12302-13011

sub12302-29018

sub12302-29036

sub91611-40816

sub91611-40828

sub91651-40820

sub91651-40855

sub91651-60655

sub94110-40800

sub94612-10800

main11401-29097i3K#..KE30,35,36,50197705-198107

sub11401-29098

main11401-29115i2T..TE47,51197511-197608

main11401-29116i2T..TE47,51197608-197708

main11401-29145i2T..TE3#197608-197708

main11401-29205i2TB..TE37,47,51197708-197710

sub11401-29207

main11401-29206i2T..TE31197710-197811

sub11401-29208

main11401-29215i2T..TE47,51197708-197710

sub11401-29217

main11401-29216i2T..TE31,47,51197811-197908

main11401-29218i2T#..TE3#197908-198004

sub11401-29415

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09057i3K#,4KC..KE3#,5#197608-197905

main96431-03833i2T#..TE3#,47,51197408-198004

sub96431-53828

main96431-03850i3K#..KE3#,50197504-197608

sub96431-53850

main96431-03873i3K#..KE3#197408-197504

sub96431-53873

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96431-23814i2T#..TE3#,47,51197408-198107

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019×10i3K#,4KC..KE3#,5#197408-198107

*10-1.25PX55-18

main90910-02032×10i2T#..TE3#,47,51197408-198004

*12-1.25PX62-21

11419BOLT, STUD(FOR FUEL PUMP)

main90116-08102×2i3KH..KE30,36197911-198107

L=37,S=10&21

main90116-08288×2i4KC..KE38,55197911-198107

L=42,S=10&21

11421BOLT, STUD(FOR OIL PAN)

main90116-06006×12i3K#,4KC..KE3#,5#197802-198107

L=26.4,S=12&12

main90116-06012×4i3K#,4KC..KE3#,5#197807-198107

L=23,S=7

main90116-08057×2i2TG..TE47197408-197902

L=29,S=13&13

main92132-40614×4i3K#..KE3#,50197408-197802

4T

main92132-60614×4i3K#..KE3#,50197408-197807

6T

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i3K#,4KC..KE3#,5#197408-198107

OD=46.5

main96411-45000×2i2T#..TE3#,47,51197408-198004

OD=50

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90072-33901i2TG..TE47197408-197902

OD=46.00

sub90339-42001

main90072-33902i2TG..TE47197408-197902

OD=45.75

sub90339-41001

main90072-33903i2TG..TE47197408-197902

OD=45.50

sub90339-41002

main96411-44500i3K#,4KC..KE3#,5#197408-198107

OD=45

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-35014×4i2T,2TB..TE3#,47197408-197511

OD=35

main90331-35026×4i2TG..TE47197408-197812

OD=35

main96411-43500×4i3K#,4KC..KE3#,5#197511-198107

OD=35

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-42500×4i3K#,4KC..KE3#,5#197408-198107

OD=25

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-01800i2T#..TE3#,47,51197408-198004

OD=18

main96412-01800i3K#,4KC..KE3#,5#197408-198107

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53011i2T#..TE3#,47,51197408-198107

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120×2i3K#,4KC..KE3#,5#197408-198107

L=18,OD=8,L=18,OD=8

main90250-10113×2i2T#..TE3#,47,51197408-198004

L=22,OD=10,L=22,OD=10

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120×6i2T#..TE3#,47,51197408-198107

L=18,OD=8,L=18,OD=8

main90250-10113×2i3K#,4KC..KE3#,5#197408-198107

L=22,OD=10,L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08054×2i3K#..KE3#,50197408-197711

L=23,OD=8,L=23,OD=8

main90250-08120×2i3K#,4KC..KE3#,5#197711-198107

L=18,OD=8,L=18,OD=8

11452GUIDE, OIL LEVEL GAGE

main11452-13010i3K#,4KC..KE3#,5#197707-198107

main11452-18010i2T#..TE3#197908-198004

main11452-22011i3K#..KE3#,50197408-197707

main11452-40010i2T#..TE3#,47,51197408-197908

12101PAN SUB-ASSY, OIL

main12101-19015i4KC..KE38,55197808-198107

sub12101-19065

main12101-19025i3K#..KE30,35,36,50197802-198107

sub12101-19026

main12101-29045i3K#..KE3#,50197408-197802

sub12101-24012

sub90341-12012

sub90430-12011

main12101-29055i2T,2TB..TE3#197703-198004

main12101-29075i2T#..TE47,51197703-197908

sub12101-29076

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i2T#..TE3#,47,51197408-198107

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i2T#..TE3#,47,51197408-198107

sub90430-18023

12151GASKET, OIL PAN

main12151-12010i3K#..KE30,35,36,50197802-198107

main12151-13010i4KC..KE38,55197808-198107

main12151-24020i3K#..KE3#,50197408-197703

main12151-24021i3K#..KE3#,50197703-197802

main12151-25010i2T#..TE3#,47,51197408-198004

1301

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13010i3K#,4KC..KE3#,5#197707-198107

sub15301-13011

main15301-18010i2T#..TE3#197908-198004

main15301-22011i3K#..KE3#,50197408-197707

main15301-25011i2T#..TE3#,47,51197408-197611

main15301-28010i2T,2TB..TE3#,47,51197701-197802

main15301-28011i2T,2TB..TE3#,47,51197802-197908

main15301-88260i2TG..TE47197611-197902

9165160616

main91651-60616

9411040600

main94110-40600

9451100600

main94511-00600
