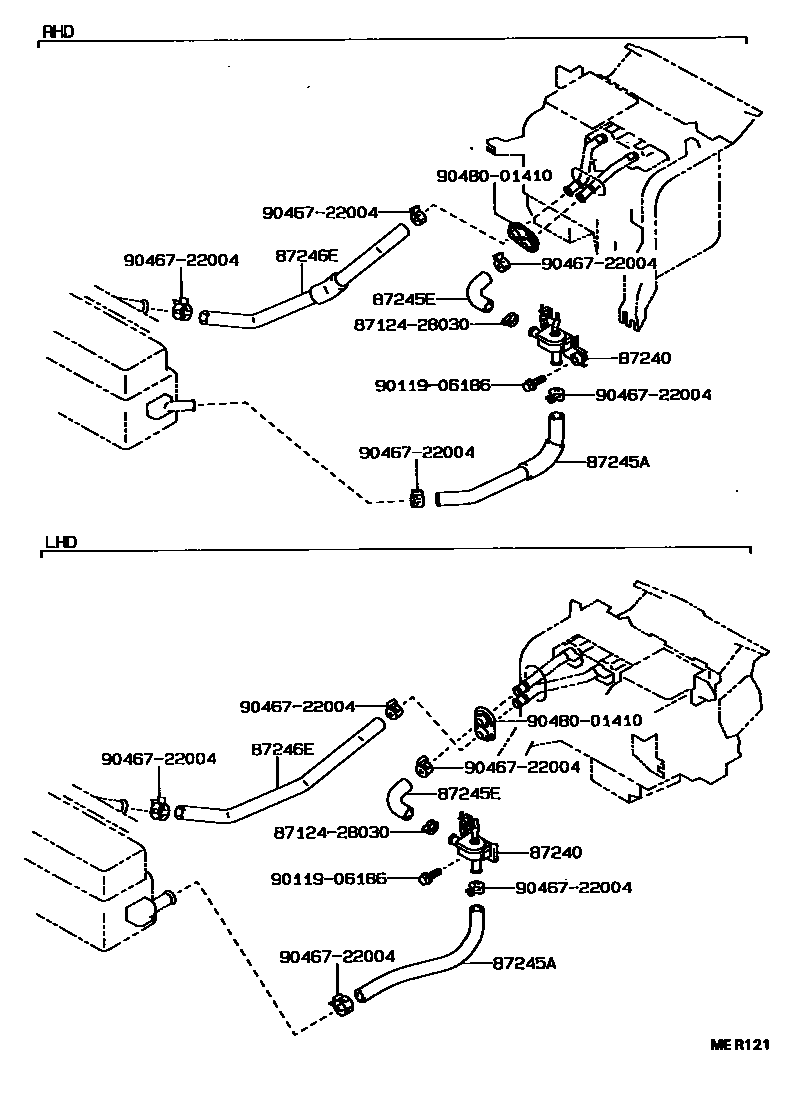

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-12230iAE95..RHD¥3,230199009-199205

main87240-12240iAE95..LHD¥3,210199009-199508

87245AHOSE, HEATER WATER, INLET A

main87245-12841iAE95..RHD¥1,070199009-199205

main87245-1A390iAE95..LHD¥1,620199009-199508

87245EHOSE, HEATER WATER, INLET E

main87245-1A300iAE95..RHD¥780199009-199205

main87245-1A380iAE95..LHD¥670199009-199508

87246EHOSE, HEATER WATER, OUTLET E

main87245-1A410iAE95..RHD¥3,280199009-199106

main87245-1A411iAE95..RHD¥3,790199106-199205

main87245-1A420iAE95..LHD¥3,030199009-199106

main87245-1A421iAE95..LHD¥2,650199106-199508

8712428030CLAMP, HEATER

main87124-28030

9011906186

main90119-06186¥140

9046722004

main90467-22004¥330

9048001410

main90480-01410

8 parts on this diagram · 1 diagram in section
