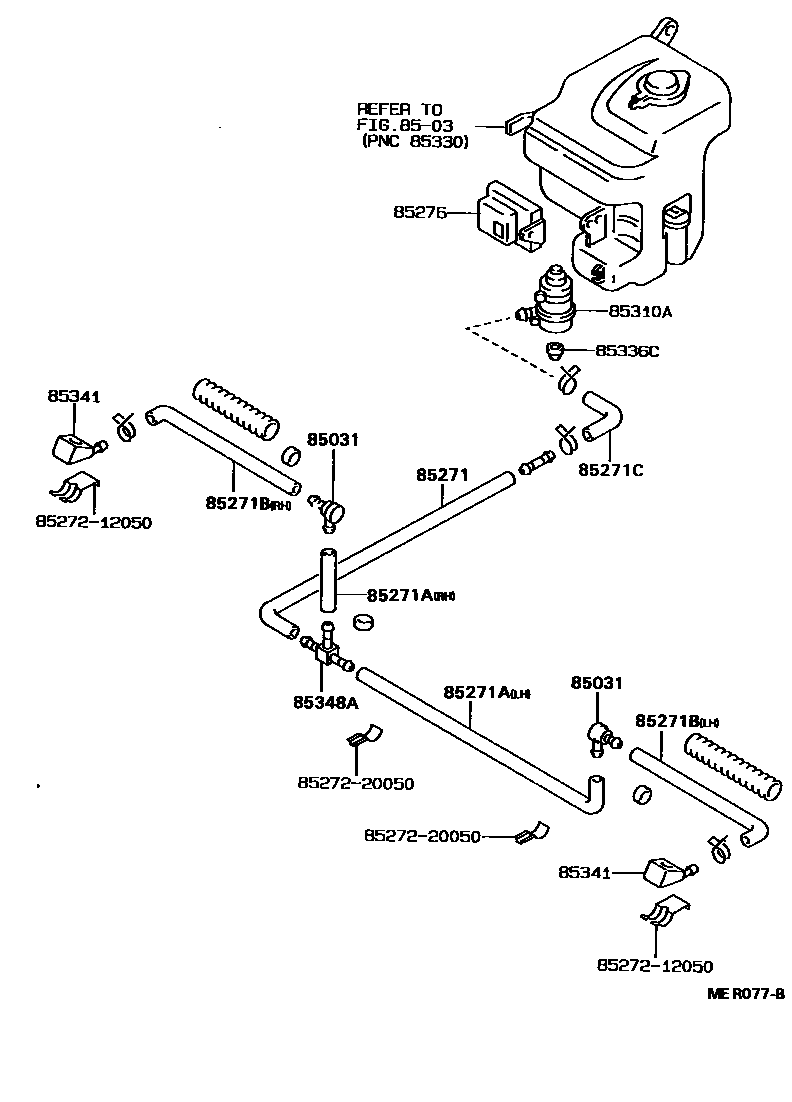

HEADLAMP CLEANER

8503

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iAE95..LHD199009-199508

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-12380iAE95..LHD199009-199508

85271AHOSE, HEADLAMP CLEANER, NO.2

main85343-12050iAE95..LHD199009-199508

LH

main90445-14071iAE95..LHD199009-199508

L=50,RH

85271BHOSE, HEADLAMP CLEANER, NO.3

main85375-12510iAE95..LHD199009-199508

LH

sub85275-44050

main85377-12380iAE95..LHD199009-199508

RH

85271CHOSE, HEADLAMP CLEANER, NO.4

main85343-95700iAE95..LHD199009-199508

L=135

85276RELAY, CLEANER CONTROL

main85276-12050iAE95..LHD199009-199508

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85280-12050iAE95..LHD199009-199508

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iAE95..LHD199009-199508

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-12320iAE95..LHD199009-199508

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iAE95..LHD199009-199508

8527212050CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-12050

8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20050

13 parts on this diagram · 1 diagram in section
