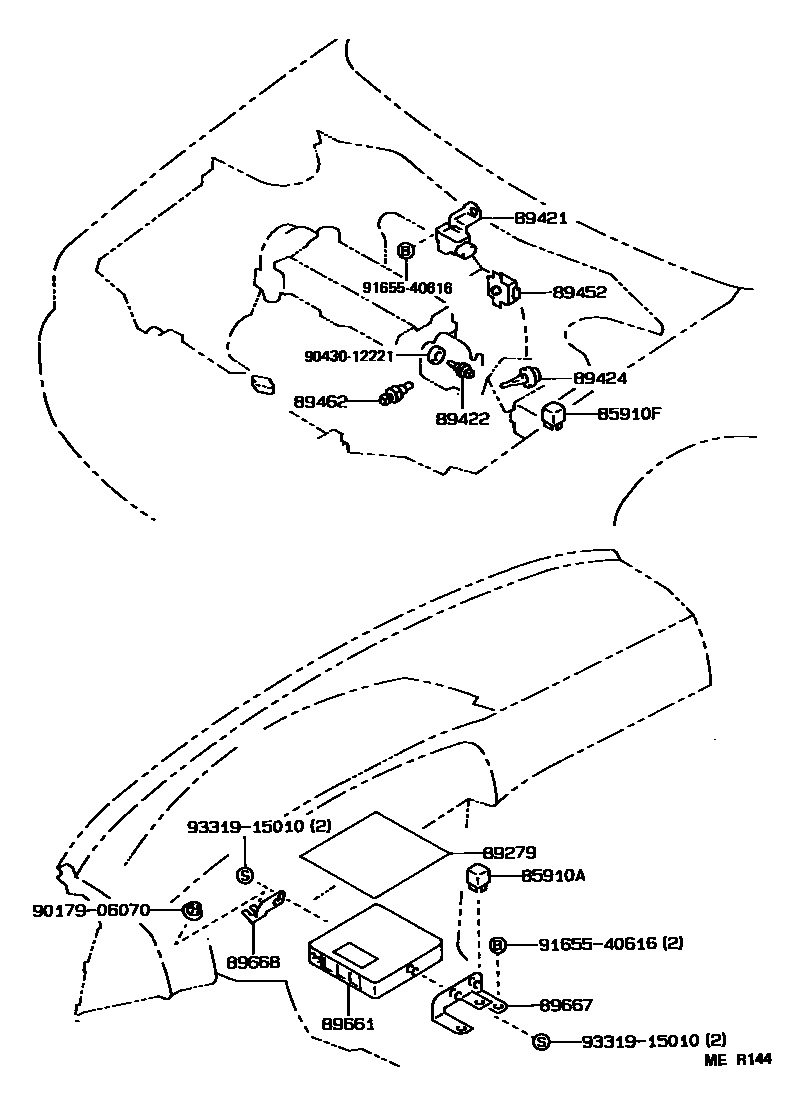

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iAE95..EFI199009-199508

85910FRELAY, COMPUTER (FOR EFI)

main90987-02006iAE95..EFI199009-199508

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020iAE95..EFI199009-199508

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-12040iAE95..EFI199009-199508

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAE95..EFI199009-199508

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE95..EFI199009-199508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-32020iAE95..EFI199009-199508

89462SWITCH, START INJECTOR TIME

main89462-20030iAE95..EFI199009-199508

89661COMPUTER, ENGINE CONTROL

main89661-12300iAE95..EFI199009-199508

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12090iAE95..EFI199009-199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12040iAE95..EFI199009-199508

9017906070

main90179-06070

9043012221

main90430-12221

9165540616

main91655-40616

9331915010

main93319-15010

15 parts on this diagram · 1 diagram in section
