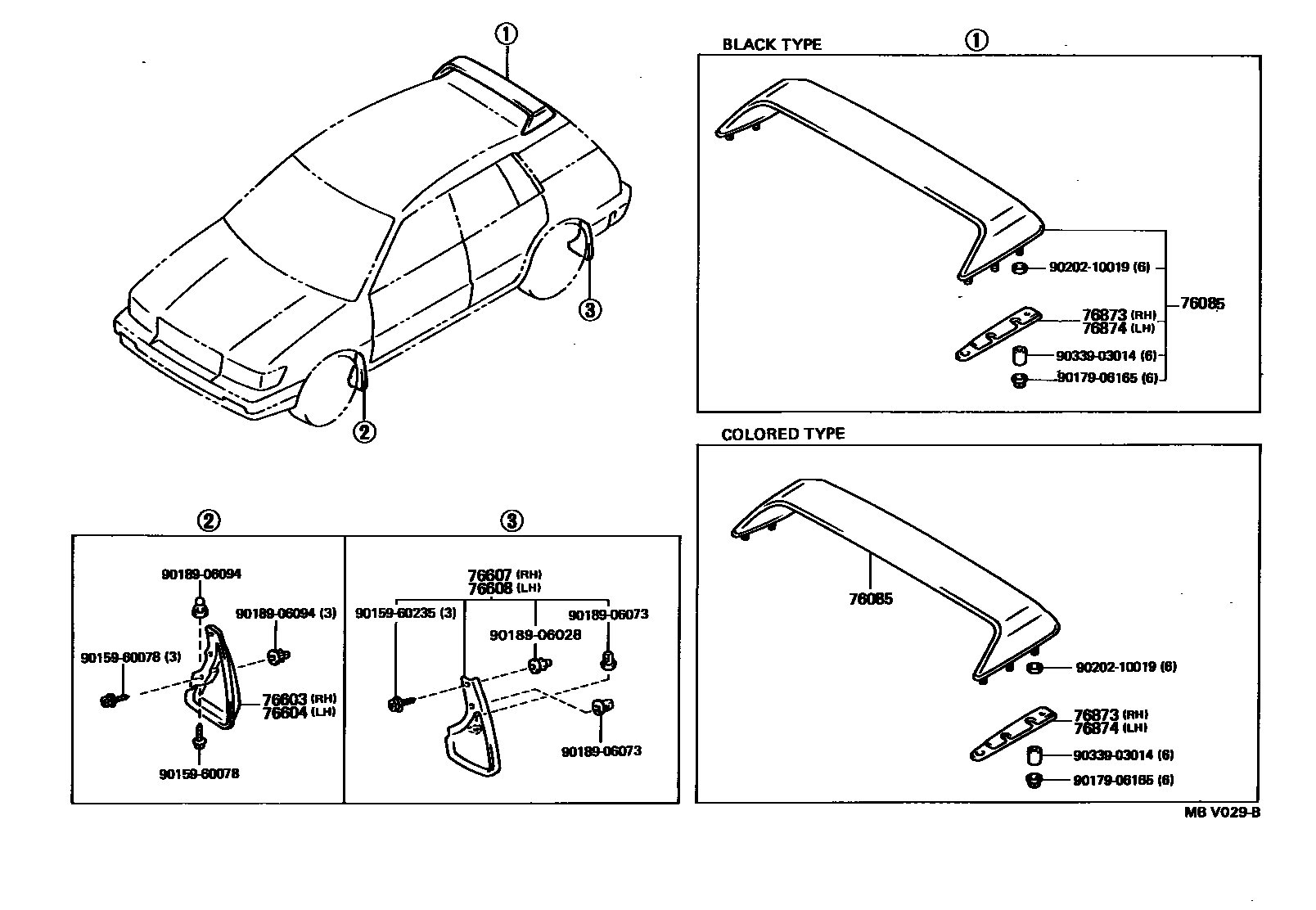

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
BLACK TYPE
COLORED TYPE
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
9015960078
main90159-60078
9015960235
main90159-60235
9017906165
main90179-06165
9018906028
main90189-06028
9018906073
main90189-06073
9018906094
main90189-06094
9020210019
main90202-10019
9033903014
main90339-03014
15 parts on this diagram · 1 diagram in section
