SIDE MOULDING

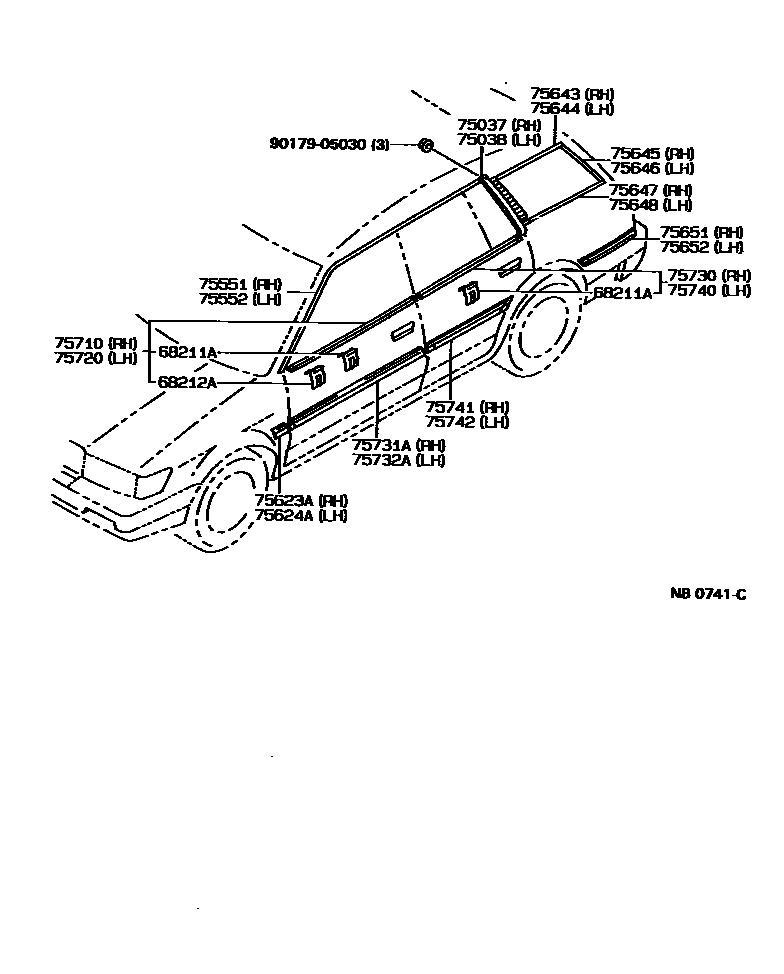

Parts diagram
68211ACLIP, DOOR BELT MOULDING
main68211-12130i199009-199508
68212ACLIP, DOOR GLASS WEATHERSTRIP, OUTER
main68212-12010i199009-199508
75037ORNAMENT SUB-ASSY, QUARTER PANEL, RH
main75037-12010i199009-199508
75038ORNAMENT SUB-ASSY, QUARTER PANEL, LH
main75038-12010i199009-199508
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-12430i199009-199508
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-12430i199009-199508
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-12540-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75623-12540
main75623-12540-12i199106-199205
RED,040 ,8G2
sub75623-12540
main75623-12540-12i199104-199106
RED,040 ,168 ,8G2
sub75623-12540
main75623-12540-12i199205-199508
RED,040
sub75623-12540
main75623-12540-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75623-12540
main75623-12540-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75623-12540
main75623-12540-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75623-12540
main75623-12540-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75623-12540
main75623-12540-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75623-12540
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-12540-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75624-12540
sub75624-12490
main75624-12540-12i199106-199205
RED,040 ,8G2
sub75624-12540
sub75624-12490
main75624-12540-12i199104-199106
RED,040 ,168 ,8G2
sub75624-12540
sub75624-12490
main75624-12540-12i199205-199508
RED,040
sub75624-12540
sub75624-12490
main75624-12540-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75624-12540
sub75624-12490
main75624-12540-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75624-12540
sub75624-12490
main75624-12540-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75624-12540
sub75624-12490
main75624-12540-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75624-12540
sub75624-12490
main75624-12540-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75624-12540
sub75624-12490
75643MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
main75643-12080i199009-199210
sub75643-12081
main75643-12081i199210-199508
75644MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
main75644-12080i199009-199210
sub75644-12081
main75644-12081i199210-199508
75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH
main75645-12080i199009-199508
75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH
main75646-12080i199009-199508
75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH
main75647-12080i199009-199508
75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH
main75648-12080i199009-199508
75651MOULDING, QUARTER, OUTSIDE RH
main75651-12800-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75651-12800
main75651-12800-12i199104-199106
RED,040 ,168 ,8G2
sub75651-12800
main75651-12800-12i199106-199205
RED,040 ,8G2
sub75651-12800
main75651-12800-12i199205-199508
RED,040
sub75651-12800
main75651-12800-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75651-12800
main75651-12800-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75651-12800
main75651-12800-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75651-12800
main75651-12800-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75651-12800
main75651-12800-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75651-12800
75652MOULDING, QUARTER, OUTSIDE LH
main75652-12800-12i199106-199205
RED,040 ,8G2
sub75652-12800
main75652-12800-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75652-12800
main75652-12800-12i199104-199106
RED,040 ,168 ,8G2
sub75652-12800
main75652-12800-12i199205-199508
RED,040
sub75652-12800
main75652-12800-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75652-12800
main75652-12800-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75652-12800
main75652-12800-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75652-12800
main75652-12800-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75652-12800
main75652-12800-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75652-12800
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-12410i199009-199508
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-12410i199009-199508
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-12130i199009-199508
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-1A120-12i199104-199106
RED,040 ,168 ,8G2
sub75731-1A120
sub75731-12890
main75731-1A120-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75731-1A120
sub75731-12890
main75731-1A120-12i199106-199205
RED,040 ,8G2
sub75731-1A120
sub75731-12890
main75731-1A120-12i199205-199508
RED,040
sub75731-1A120
sub75731-12890
main75731-1A120-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75731-1A120
sub75731-12890
main75731-1A120-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75731-1A120
sub75731-12890
main75731-1A120-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75731-1A120
sub75731-12890
main75731-1A120-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75731-1A120
sub75731-12890
main75731-1A120-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75731-1A120
sub75731-12890
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-12850-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75732-12850
sub75732-12730
main75732-12850-12i199104-199106
RED,040 ,168 ,8G2
sub75732-12850
sub75732-12730
main75732-12850-12i199205-199508
RED,040
sub75732-12850
sub75732-12730
main75732-12850-12i199106-199205
RED,040 ,8G2
sub75732-12850
sub75732-12730
main75732-12850-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75732-12850
sub75732-12730
main75732-12850-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75732-12850
sub75732-12730
main75732-12850-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75732-12850
sub75732-12730
main75732-12850-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75732-12850
sub75732-12730
main75732-12850-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75732-12850
sub75732-12730
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-12220i199009-199508
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-12710-12i199106-199205
RED,040 ,8G2
sub75741-12710
sub75741-12660
main75741-12710-12i199104-199106
RED,040 ,168 ,8G2
sub75741-12710
sub75741-12660
main75741-12710-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75741-12710
sub75741-12660
main75741-12710-12i199205-199508
RED,040
sub75741-12710
sub75741-12660
main75741-12710-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75741-12710
sub75741-12660
main75741-12710-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75741-12710
sub75741-12660
main75741-12710-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75741-12710
sub75741-12660
main75741-12710-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75741-12710
sub75741-12660
main75741-12710-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75741-12710
sub75741-12660
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-12690-12i199009-199104
RED,040 ,168 ,27M ,4K1 ,8G2
sub75742-12690
sub75742-12640
main75742-12690-12i199104-199106
RED,040 ,168 ,8G2
sub75742-12690
sub75742-12640
main75742-12690-12i199106-199205
RED,040 ,8G2
sub75742-12690
sub75742-12640
main75742-12690-12i199205-199508
RED,040
sub75742-12690
sub75742-12640
main75742-12690-23i199308-199508
SILVER,183 ,20W ,22S ,3E5 ,3K4 ,6M3 ,8G5
sub75742-12690
sub75742-12640
main75742-12690-23i199108-199209
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6K6 ,8J7
sub75742-12690
sub75742-12640
main75742-12690-23i199009-199106
SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75742-12690
sub75742-12640
main75742-12690-23i199209-199308
SILVER,183 ,22S ,26T ,3E5 ,3K4 ,6M3 ,8J7
sub75742-12690
sub75742-12640
main75742-12690-23i199106-199108
SILVER,183 ,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9
sub75742-12690
sub75742-12640
9017905030
main90179-05030

25 parts on this diagram · 1 diagram in section
