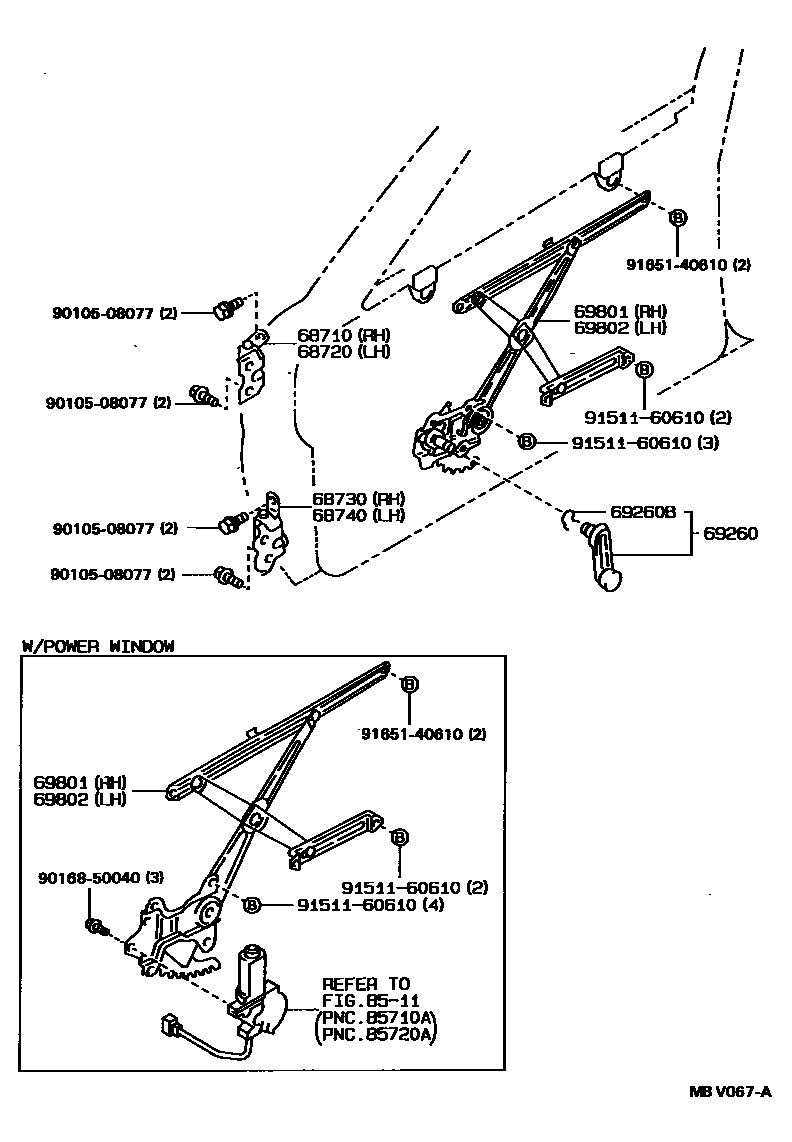

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12100iAE95¥2,980199009-199205

sub68710-12110¥2,990

main68710-12110iAE95¥2,990199205-199508

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12100iAE95¥2,980199009-199205

sub68720-12110¥2,990

main68720-12110iAE95¥2,990199205-199508

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060iAE95¥2,990199009-199508

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060iAE95¥2,990199009-199508

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12090-03iAE95199009-199508

SHADOW GRAY,TRIM1#

sub69260-12090¥1,610

main69260-12090-04iAE95199009-199508

BLUE,TRIM8#

sub69260-12090¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01005iAE95¥110199009-199508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100iAE95¥7,300199009-199508

W(POWER WINDOW)

main69810-12290iAE95¥6,300199009-199508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100iAE95¥7,300199009-199508

W(POWER WINDOW)

main69820-12290iAE95¥6,300199009-199508

8511

9010508077

main90105-08077¥110

9016850040

main90168-50040¥70

9151160610

main91511-60610¥120

9165140610

main91651-40610¥160

13 parts on this diagram · 1 diagram in section
