FLOOR INSULATOR

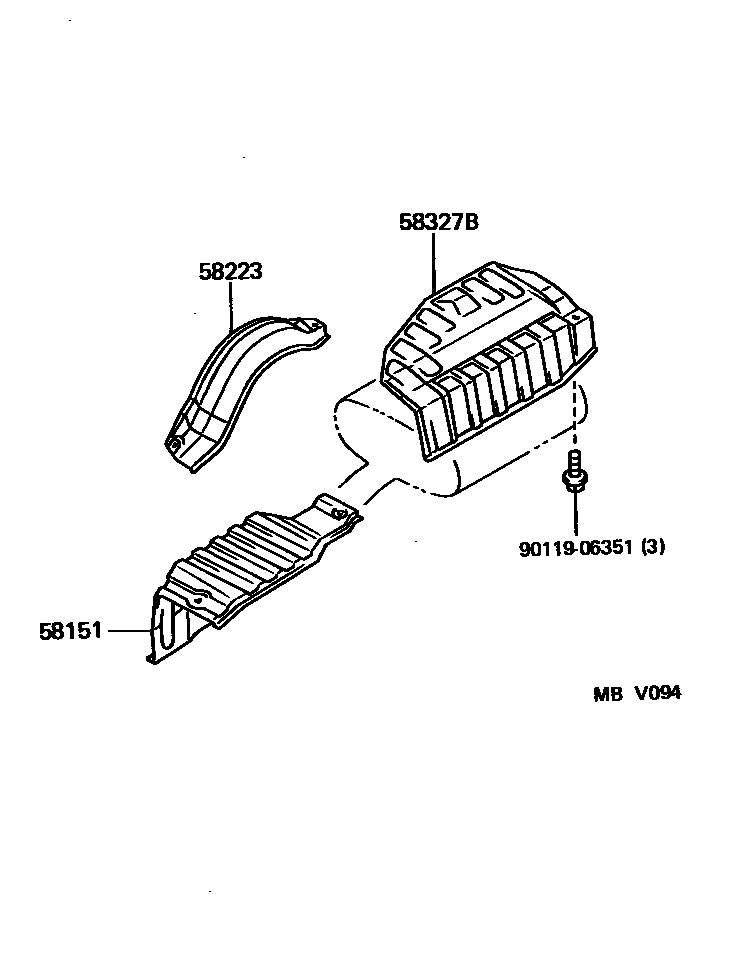

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12130i¥3,400199009-199508

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-12050i¥1,850199009-199508

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-12090i¥3,870199009-199508

9011906351

main90119-06351¥100

4 parts on this diagram · 1 diagram in section
