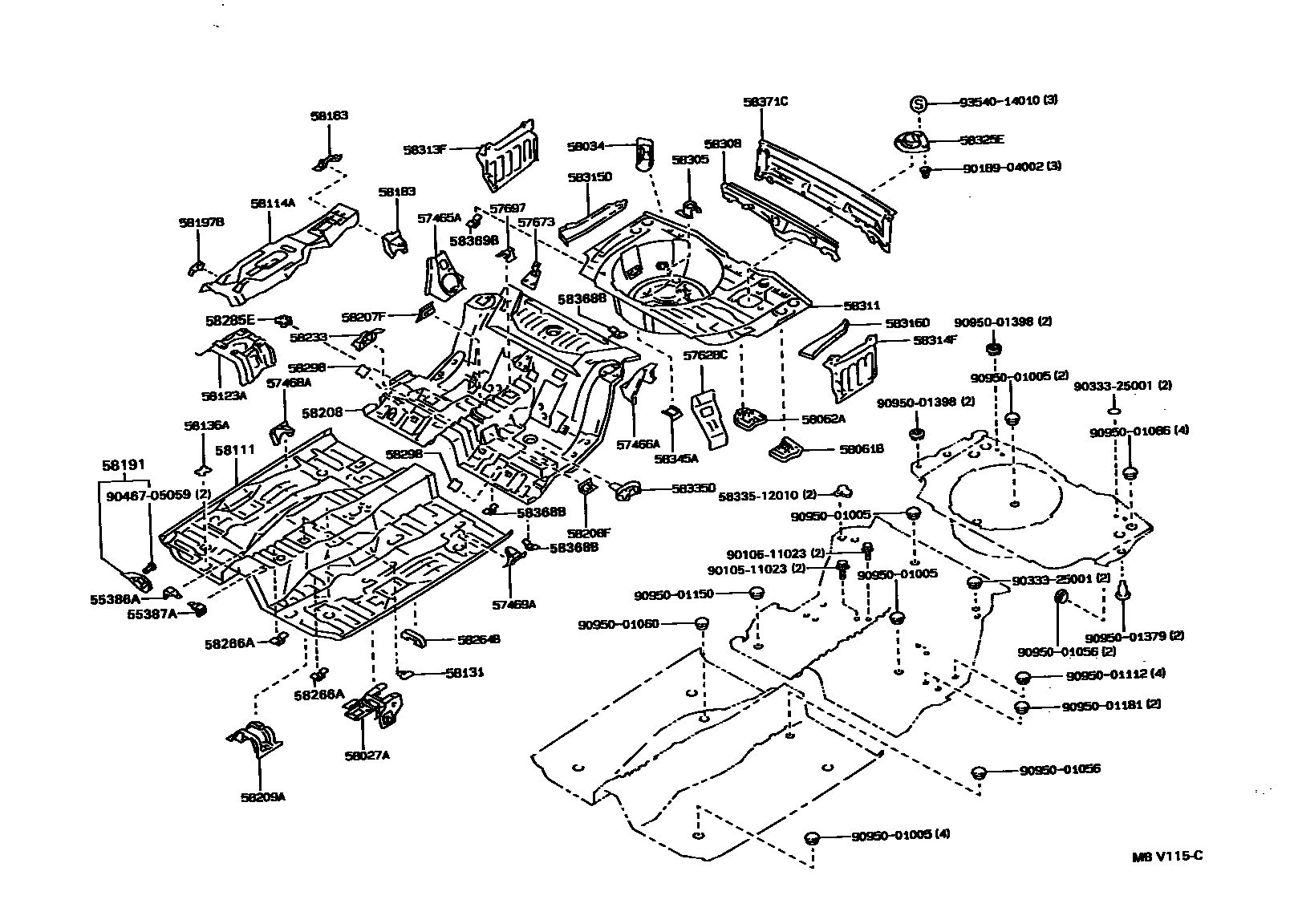

FLOOR PAN & LOWER BACK PANEL

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-12050iAE95199009-199508

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-12050iAE95199009-199508

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-12030iAE95199009-199508

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-12010iAE95199009-199508

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-12040iAE95199009-199508

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-12040iAE95199009-199508

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-12051iAE95199009-199508

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-12030iAE95199009-199508

57697RETAINER, REAR SEAT CUSHION

main57697-12020iAE95199009-199508

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12040iAE95199009-199508

58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-12020iAE95199009-199508

58061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, RH

main58061-12020iAE95199009-199508

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-12020iAE95199009-199508

58111PAN, FRONT FLOOR

main58111-12211iAE95199009-199508

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12061iAE95199009-199508

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-12050iAE95199009-199508

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12050iAE95..EFI199009-199508

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iAE95199009-199508

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-12110iAE95199009-199508

RH

main58184-12120iAE95199009-199508

LH

58191FOOTREST, FRONT FLOOR

main58191-12100iAE95..RHD199009-199205

main58192-12040iAE95..LHD199009-199508

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-12010iAE95199009-199508

58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH

main58207-12050iAE95199009-199508

58208PAN, CENTER FLOOR

main58211-12241iAE95199009-199508

58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH

main58208-12050iAE95199009-199508

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-12030iAE95199009-199508

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-12020iAE95199009-199508

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-12050iAE95199009-199308

sub58264-12060

main58264-12060iAE95199308-199508

58266ABRACKET, FUEL TUBE CLAMP

main58266-22040iAE95..CBR199009-199508

58285ECOVER, CENTER FLOOR HOLE

main58285-12030iAE95199009-199508

58298COVER, CENTER FLOOR HOLE, NO.2

main58298-12020iAE95199009-199508

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12050iAE95199009-199508

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-12140iAE95199009-199508

sub58308-12120

58311PAN, REAR FLOOR

main58311-12190iAE95199009-199508

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12230iAE95199009-199508

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12230iAE95199009-199508

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12050iAE95199009-199508

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12050iAE95199009-199508

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12060iAE95199009-199508

58335DPACKING, REAR FLOOR SERVICE HOLE, RH

main58335-12010iAE95199009-199508

58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-12040iAE95199009-199508

58368BBRACKET, FUEL TUBE, NO.2

main58266-22040iAE95199009-199508

58369BBRACKET, FUEL TUBE, NO.3

main58266-22040iAE95199009-199508

58371CPANEL, BODY LOWER BACK, UPPER

main58371-12710iAE95199009-199508

5833512010REINFORCEMENT, REAR BUMPER STAY, LH

main58335-12010

9010511023

main90105-11023

9018904002

main90189-04002

9033325001

main90333-25001

9046705059

main90467-05059

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001086

main90950-01086

9095001112

main90950-01112

9095001150

main90950-01150

9095001181

main90950-01181

9095001379

main90950-01379

9095001398

main90950-01398

9354014010

main93540-14010

58 parts on this diagram · 1 diagram in section
