COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE95199009-199508

55701PANEL SUB-ASSY, COWL

main55700-12460iAE95..RHD199009-199205

main55700-12730iAE95..LHD199009-199508

55713APANEL, COWL TOP SIDE, RH

main55713-12070iAE95199009-199508

55714APANEL, COWL TOP SIDE, LH

main55714-12070iAE95199009-199508

55715ABRACE, COWL TOP TO APRON, RH

main55715-12090iAE95199009-199508

55716ABRACE, COWL TOP TO APRON, LH

main55716-12090iAE95199009-199508

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12020iAE95..RHD199009-199205

main55708-12070iAE95..LHD199009-199508

55950NOZZLE ASSY, DEFROSTER

main55950-12100iAE95..RHD199009-199205

main55950-12110iAE95..LHD199009-199508

55967NOZZLE, DEFROSTER, LOWER

main55967-12010iAE95..RHD199009-199205

main55967-12020iAE95..LHD199009-199508

56111GLASS, WINDSHIELD

main56111-1A250iAE95199009-199508

*TL,T=4.7

sub56111-1A290

main56111-1A290iAE95..GL,GLI199009-199508

*TL,T=4.7,W(TOP SHADE)

sub56111-1A291

56116SPACER, WINDSHIELD GLASS

main56116-24010iAE95199009-199508

9016440072

main90164-40072

9016745011

main90167-45011

9018904119

main90189-04119

9018904120

main90189-04120

9018904132

main90189-04132

9095001148

main90950-01148

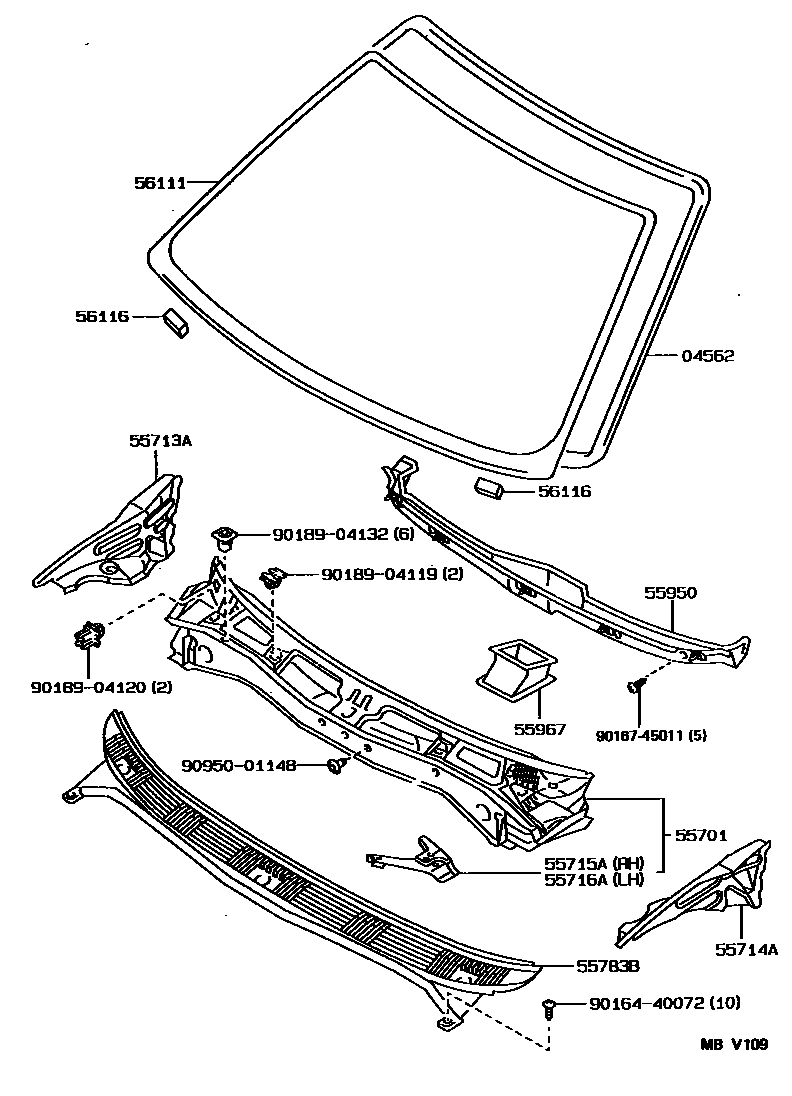

17 parts on this diagram · 1 diagram in section
