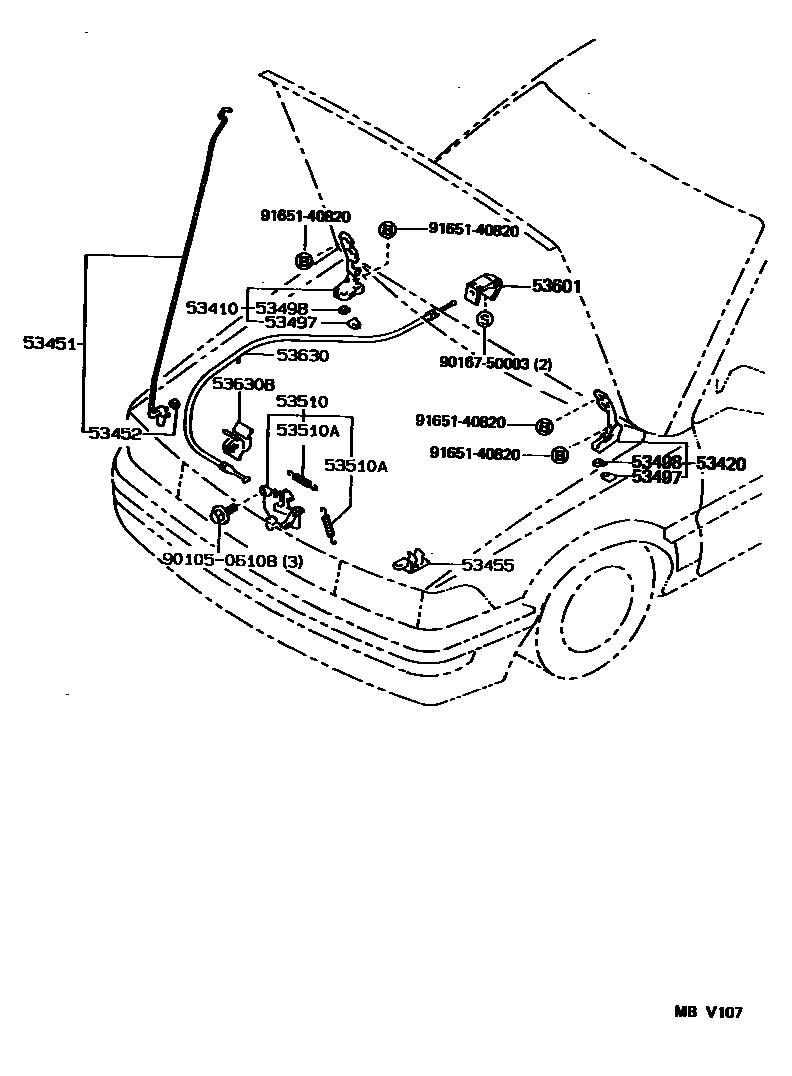

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12171iAE95199009-199508

sub53410-12181

main53410-12181iAE95199009-199508

53420HINGE ASSY, HOOD, LH

main53420-12161iAE95199009-199508

sub53420-12171

main53420-12171iAE95199009-199508

53451ROD, HOOD SUPPORT

main53451-12101iAE95199009-199508

53452HOLDER, HOOD STAY

main53452-12020iAE95199009-199508

53455CLAMP, HOOD SUPPORT ROD

main53455-12070iAE95199009-199508

53497PAD, HOOD HINGE, NO.1

main53497-12011iAE95199009-199508

T=0.5

53498PAD, HOOD HINGE, NO.2

main53498-12011iAE95199009-199508

53510LOCK ASSY, HOOD

main53510-12360iAE95..LHD199009-199508

main53510-12410iAE95..RHD199009-199205

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iAE95199009-199508

WD=0.9,CW=21.25

main90506-09038iAE95199009-199508

WD=0.9,CW=27.5

main90506-20008iAE95199009-199508

WD=2.0,CW=17,WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-B1iAE95199009-199508

SHADOW GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-J0iAE95199009-199508

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12250iAE95199009-199508

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043iAE95199009-199508

9010506108

main90105-06108

9016750003

main90167-50003

9165140820

main91651-40820

15 parts on this diagram · 1 diagram in section
