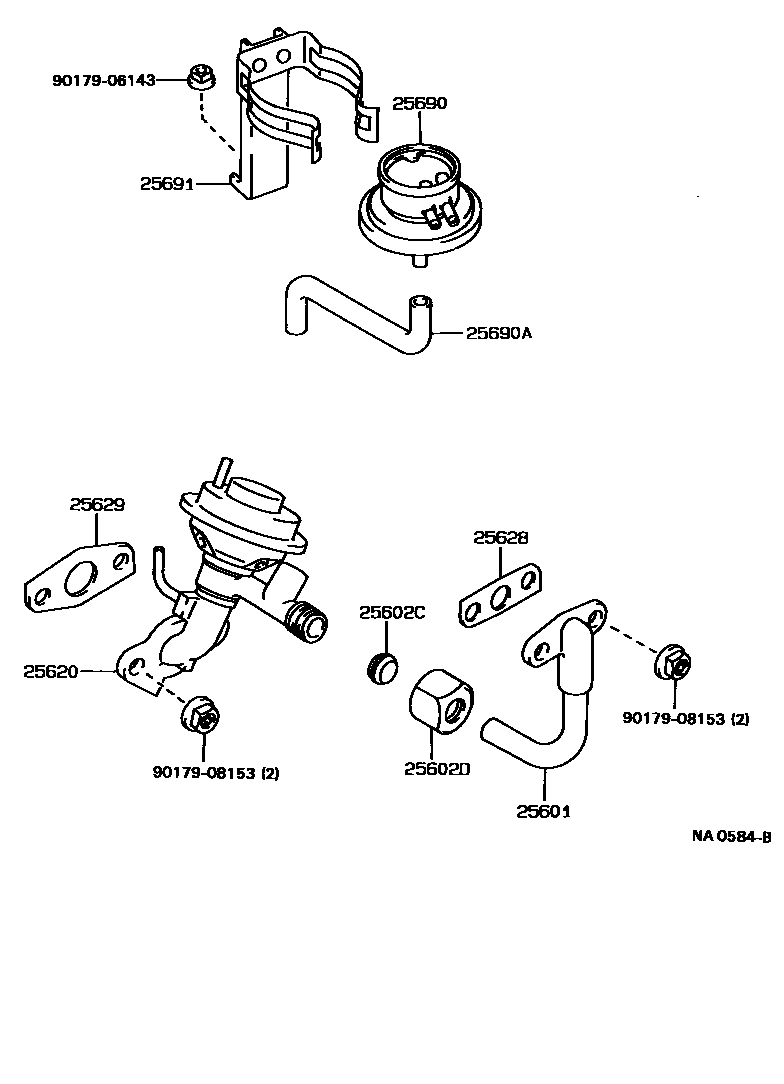

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-16040i4AFE..AE95199009-199508

25602CSLEEVE, BALL(FOR EGR PIPE, NO.2)

main90410-12042i4AFE..AE95199009-199508

25602DNUT, UNION(FOR EGR PIPE, NO.2)

main90402-20073i4AFE..AE95199009-199508

25620VALVE ASSY, EGR

main25620-16100i4AFE..AE95199009-199508

25628GASKET, EGR INLET

main25628-16010i4AFE..AE95199009-199508

25629GASKET, EGR VALVE ADAPTER

main25627-16031i4AFE..AE95199009-199508

25690MODULATOR ASSY, EGR VACUUM

main25870-16110i4AFE..AE95199009-199508

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-16030i4AFE..AE95199009-199508

25691BRACKET, EGR VACUUM MODULATOR

main25691-16150i4AFE..AE95199009-199508

9017906143

main90179-06143

9017908153

main90179-08153

11 parts on this diagram · 1 diagram in section
