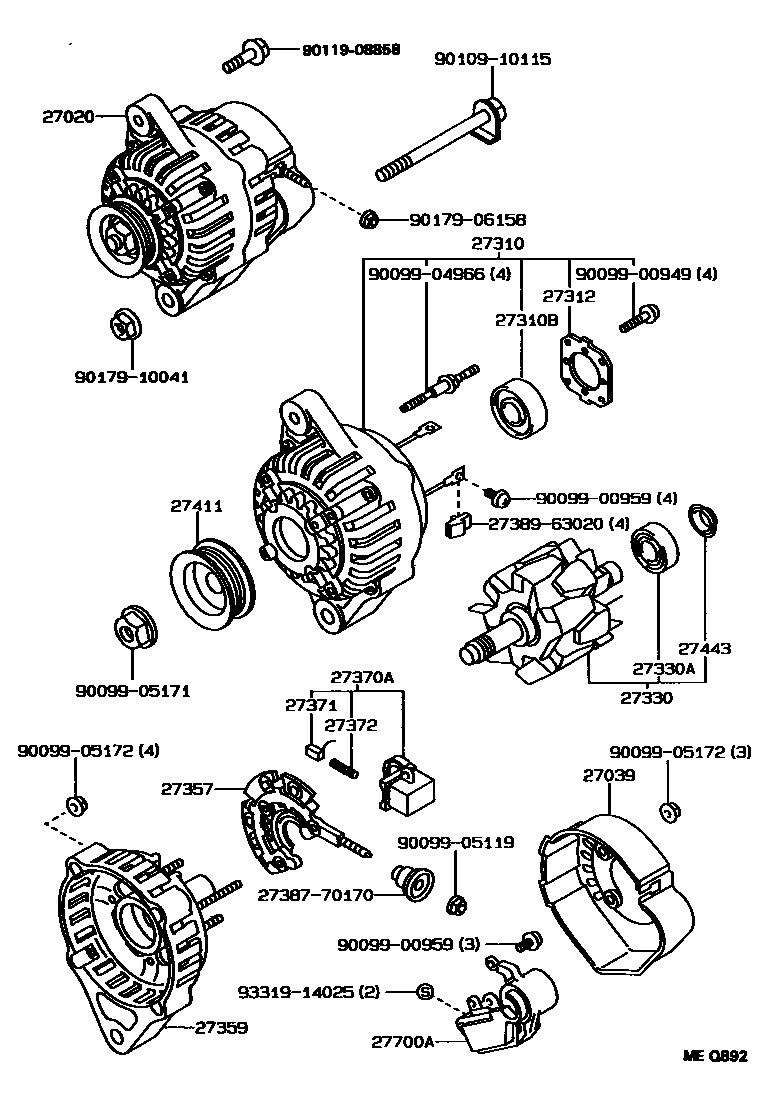

ALTERNATOR

27020ALTERNATOR ASSY

main27060-16170i4AF#..AE95199009-199508

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-15170i4AF#..AE95199109-199508

sub27039-15171

main27039-72010i4AF#..AE95199009-199109

sub27039-15170

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16190i4AF#..AE95199009-199508

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i4AF#..AE95199009-199508

27312PLATE, RETAINER

main27312-70200i4AF#..AE95199009-199508

27330ROTOR ASSY, ALTERNATOR

main27330-72101i4AF#..AE95199009-199508

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AF#..AE95199009-199508

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i4AF#..AE95199009-199508

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16151i4AF#..AE95199009-199508

sub27359-16152

sub27384-16380

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AFE..AE95199207-199508

main27370-63021i4AF#..AE95199009-199105

sub27370-70300

main27370-70300i4AF#..AE95199105-199207

sub27370-35060

27371BRUSH, ALTERNATOR

main27371-63020i4AF#..AE95199009-199105

sub27371-70300

main27371-70300i4AF#..AE95199105-199508

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AF#..AE95199009-199508

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-16180i4AF#..AE95199009-199508

27443COVER, ALTERNATOR BEARING

main27443-63020i4AF#..AE95199009-199508

27700AREGULATOR ASSY, GENERATOR

main27700-70030i4AF#..AE95199009-199508

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010910115

main90109-10115

9011908858

main90119-08858

9017906158

main90179-06158

9017910041

main90179-10041

9331914025

main93319-14025

28 parts on this diagram · 1 diagram in section
