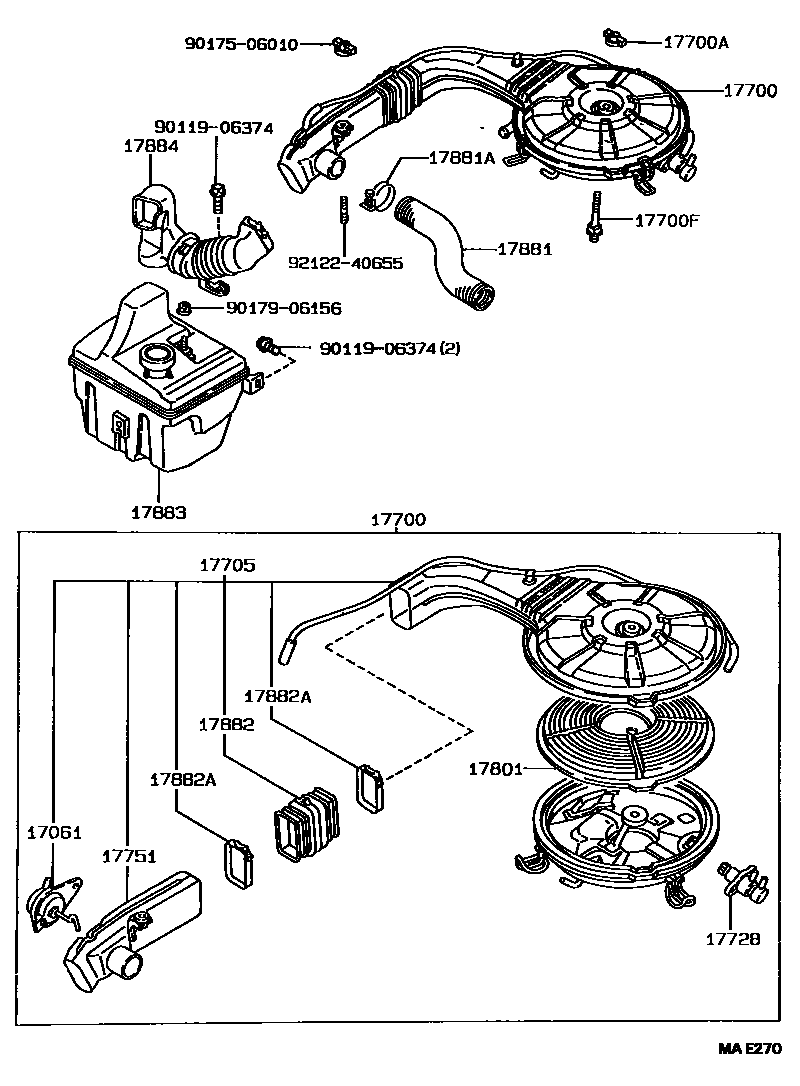

AIR CLEANER

0001 1 0002 1

17061DIAPHRAGM SUB-ASSY

main17061-15040i4AF..AE95199009-199205

17700CLEANER ASSY, AIR

main17700-15250i4AFE..AE95199009-199508

main17700-16390i4AF..AE95199009-199205

17700ANUT, WING(FOR AIR CLEANER)

main90175-06010i4AF..AE95199009-199205

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06018i4AF..AE95199009-199205

17705CAP SUB-ASSY, AIR CLEANER

main17705-15140i4AFE..AE95199009-199508

main17705-16190i4AF..AE95199009-199205

17728VALVE, THERMOSTATIC

main17728-16010i4AF..AE95199009-199205

17751INLET, AIR CLEANER, NO.1

main17751-15010i4AF..AE95199009-199205

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15060i4AF..AE95199009-199205

main17801-16020i4AFE..AE95199009-199508

17881HOSE, AIR CLEANER, NO.1

main17881-15130i4AFE..AE95199009-199508

main17881-15150i4AF..AE95199009-199205

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-73005i4AFE..AE95199009-199302

sub96111-10730

main96111-10460i4AF..AE95199009-199205

main96111-10730i4AFE..AE95199302-199508

17882HOSE, AIR CLEANER, NO.2

main17881-15140i4AF..AE95199009-199205

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17786-15010i4AF..AE95199009-199205

17883HOSE, AIR CLEANER, NO.3

main17883-16031i4AF..AE95199009-199205

main17883-16041i4AFE..AE95199009-199508

17884HOSE, AIR CLEANER, NO.4

main17880-16010i4AF..AE95199009-199205

main17882-16100i4AFE..AE95199009-199508

9011906374

main90119-06374

9017506010

main90175-06010

9017906156

main90179-06156

9212240655

main92122-40655

18 parts on this diagram · 2 diagrams in section
