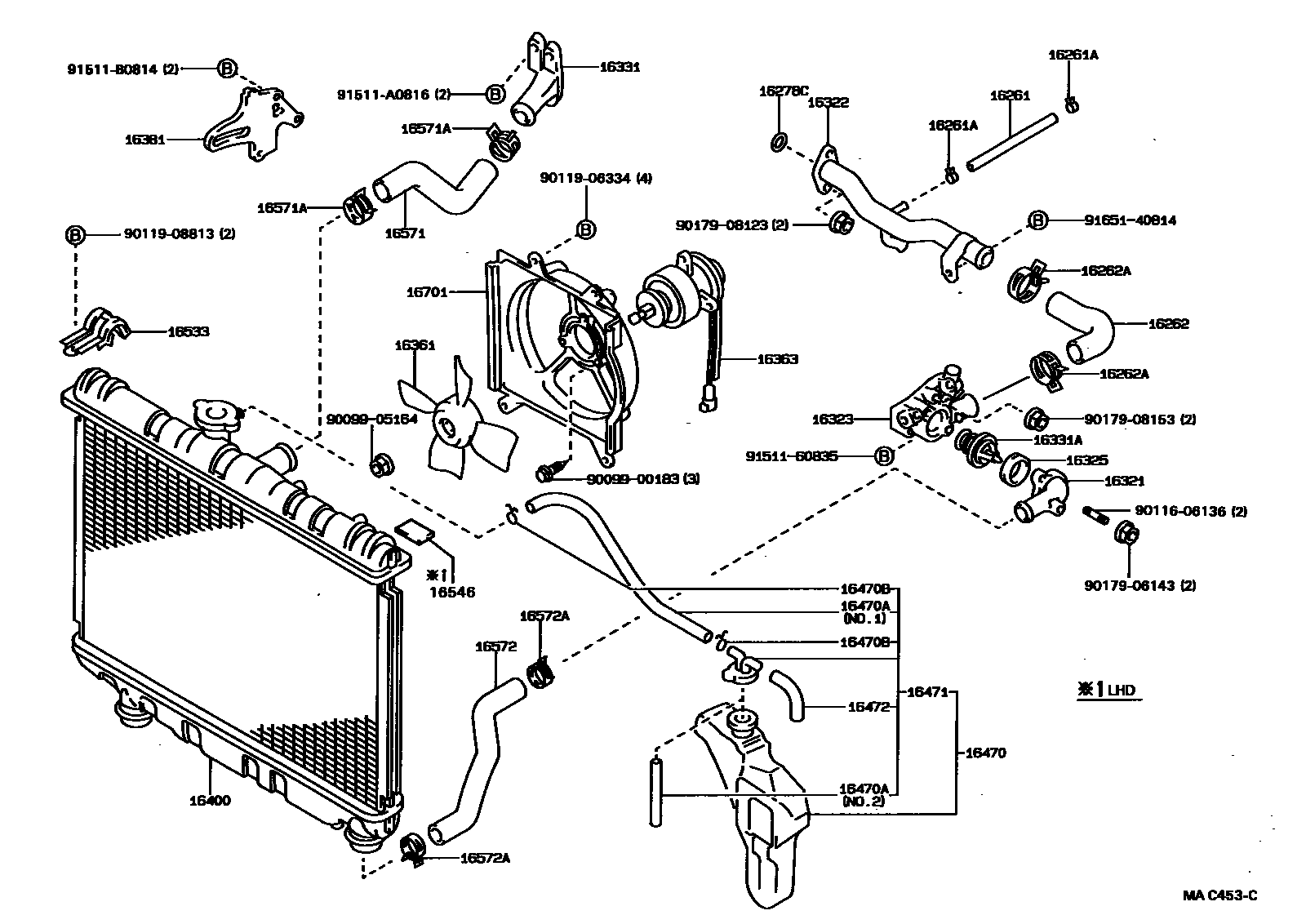

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main99555-10180i4AFE..AE95¥400199009-199106

*H,L=180

sub99555-10200¥320

main99555-10200i4AF..AE95¥320199009-199508

*H,L=200

main99555-10220i4AF..AE95¥550199106-199205

*H,L=220

sub99555-10300¥370

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i4AF#..AE95¥230199009-199106

sub96135-51300¥120

main96135-41300i4AF#..AE95¥140199106-199508

sub96135-51300¥120

16262HOSE, WATER INLET

main16262-15030i4AF#..AE95¥1,620199009-199508

16262ACLIP(FOR WATER INLET HOSE)

main90467-36001i4AF#..AE95¥470199009-199508

16278CRING, O(FOR WATER BY-PASS PIPE NO.2)

main96711-24035i4AF#..AE95¥270199009-199502

sub96761-24035¥240

main96761-24035i4AFE..AE95¥240199502-199508

16321INLET, WATER

main16321-15020i4AF#..AE95¥2,520199009-199508

16322PIPE, WATER INLET

main16322-15040i4AF#..AE95¥7,200199009-199106

main16322-15041i4AF#..AE95¥7,500199106-199508

16323HOUSING, WATER INLET

main16323-15090i4AF..AE95¥6,000199009-199205

main16323-15100i4AFE..AE95¥6,000199009-199508

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i4AF#..AE95¥640199009-199301

sub16325-63011¥680

main16325-63011i4AFE..AE95¥680199301-199508

16331OUTLET, WATER

main16331-15080i4AF#..AE95¥1,960199009-199508

16331ATHERMOSTAT

main90916-03046i4AF#..AE95¥1,740199009-199508

*WAX 82-95

16361FAN

main16361-64010i4AF#..AE95199009-199508

16363MOTOR, COOLING FAN

main16363-64010i4AF#..AE95¥23,600199009-199508

16381BAR, FAN BELT ADJUSTING

main16381-15060i4AF#..AE95¥2,410199009-199508

16400RADIATOR ASSY

main16400-15400i4AF#..AE95¥38,500199009-199305

sub16400-15401¥38,500

sub16535-11030¥2,430

main16400-15401i4AFE..AE95¥38,500199305-199508

sub16400-15431¥38,500

16470TANK ASSY, RADIATOR RESERVE

main16470-15040i4AF#..AE95¥2,870199009-199508

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i4AF#..AE95¥580199009-199508

L=600,NO.2

main90445-12117i4AF#..AE95¥460199009-199508

L=460,NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AF#..AE95¥100199009-199508

16471CAP SUB-ASSY, RESERVE TANK

main16405-15050i4AF#..AE95199009-199508

16472HOSE, BREATHER

main85338-74040i4AF#..AE95199009-199508

16533SUPPORT, RADIATOR, UPPER

main16533-15090i4AF#..AE95¥3,440199009-199508

16546PROTECTOR, RADIATOR

main16546-64010i4AF#..AE95..LHD¥180199009-199508

16571HOSE, RADIATOR, INLET

main16571-15140i4AF#..AE95¥1,610199009-199508

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i4AF#..AE95¥400199009-199508

sub90467-34004¥390

16572HOSE, RADIATOR, OUTLET

main16572-15190i4AF#..AE95¥2,170199009-199508

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i4AF#..AE95¥400199009-199508

sub90467-34004¥390

16701SHROUD SUB-ASSY, FAN

main16711-16140i4AF#..AE95¥7,000199009-199508

9009900183

main90099-00183

9009905164

main90099-05164¥0

9011606136

main90116-06136¥130

9011906334

main90119-06334¥120

9011908813

main90119-08813¥160

9017906143

main90179-06143¥80

9017908123

main90179-08123¥160

9017908153

main90179-08153¥90

9151160835

main91511-60835¥90

91511A0816

main91511-A0816¥140

91511B0814

main91511-B0814¥90

9165140814

main91651-40814¥180

39 parts on this diagram · 3 diagrams in section
