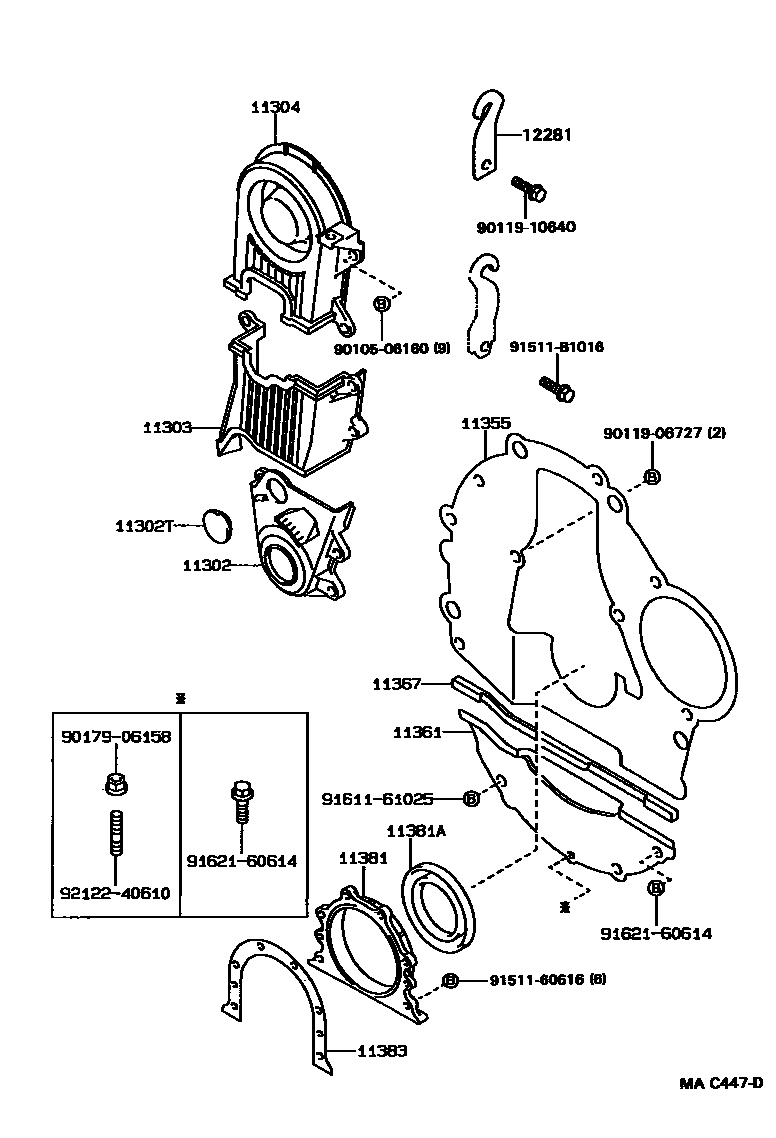

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15041i4AF#..AE95199009-199508

11302TPLUG, HOLE

main90950-01391i4AF#..AE95199009-199508

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AF#..AE95199009-199508

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15020i4AF#..AE95199009-199508

11355PLATE, REAR END

main11355-16010i4AF#..AE95199009-199508

11361COVER, FLYWHEEL HOUSING UNDER

main11361-16040i4AF#..AE95199009-199508

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15030i4AF#..AE95199009-199508

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AF#..AE95199009-199508

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AF#..AE95199009-199106

sub90311-70007

main90311-70007i4AF#..AE95199106-199508

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15011i4AF#..AE95199009-199205

sub11383-16010

main11383-16010i4AFE..AE95199205-199508

12281HANGER, ENGINE, NO.1

main12281-15050i4AFE..AE95199309-199508

9010506160

main90105-06160

9011906727

main90119-06727

9011910640

main90119-10640

9017906158

main90179-06158

9151160616

main91511-60616

91511B1016

main91511-B1016

9161161025

main91611-61025

9162160614

main91621-60614

9212240610

main92122-40610

20 parts on this diagram · 1 diagram in section
