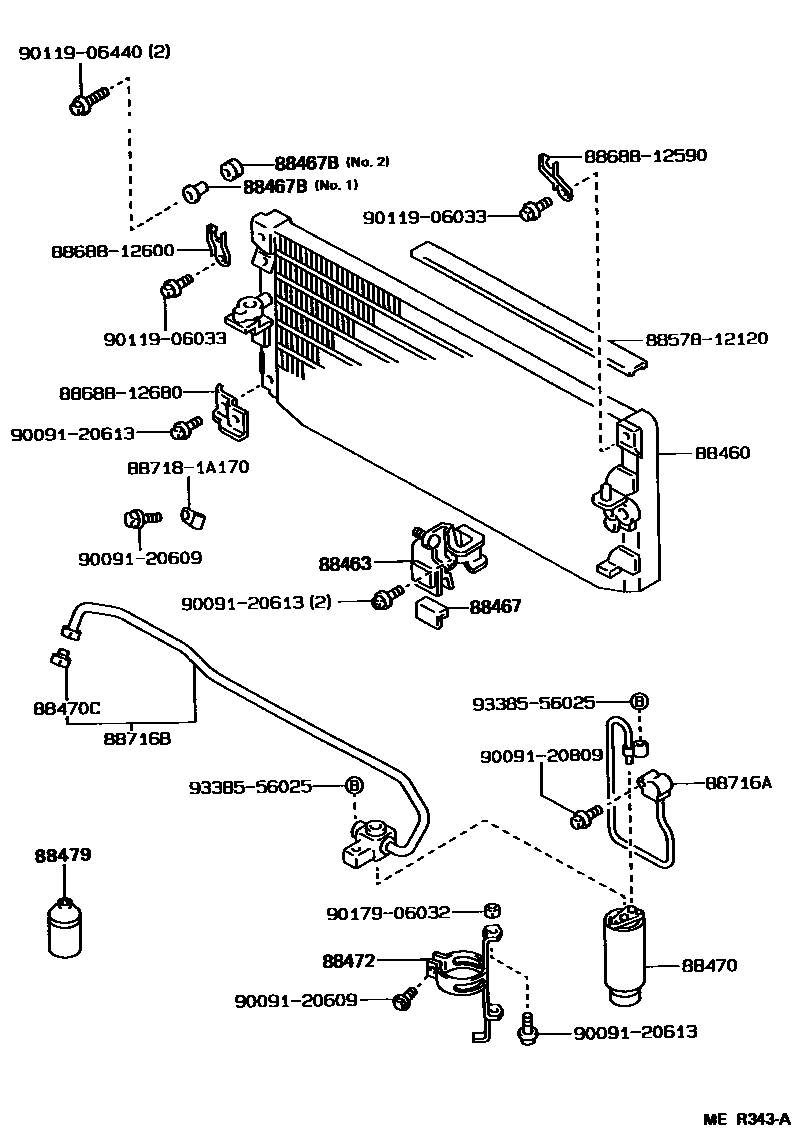

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88460CONDENSER ASSY, COOLER

main88460-12370iAE95¥32,500199009-199308

88463BRACKET, COOLER CONDENSER, NO.1

main88463-12041iAE95199009-199308

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12081iAE95199009-199308

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14070iAE95..USA199009-199308

NO.1

main88467-20040iAE95..USA199009-199308

NO.2

88470RECEIVER & DRYER ASSY, COOLER

main88471-16040iAE95¥4,600199009-199308

sub88471-16050¥3,420

88470CBOLT, FUSE

main88475-12020iAE95..USA199009-199208

88472BRACKET, RECEIVER TANK, NO.1

main88473-12070iAE95199009-199308

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004iAE95..CND199009-199308

250G

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-12340iAE95¥5,100199009-199308

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-12251iAE95..USA¥7,500199009-199208

main88726-12350iAE95..CND¥7,800199009-199308

8857812120PAKING, COOLER AIR DUCT

main88578-12120

8868812590BRACKET, COOLER DIAPHRAGM

main88688-12590

8868812600BRACKET, COOLER DIAPHRAGM

main88688-12600

8868812680BRACKET, COOLER DIAPHRAGM

main88688-12680

887181A170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A170

9009120609

main90091-20609

9009120613

main90091-20613

9009120809

main90091-20809¥0

9011906033

main90119-06033¥130

9011906440

main90119-06440

9017906032

main90179-06032¥120

9338556025

main93385-56025¥0

22 parts on this diagram · 3 diagrams in section
