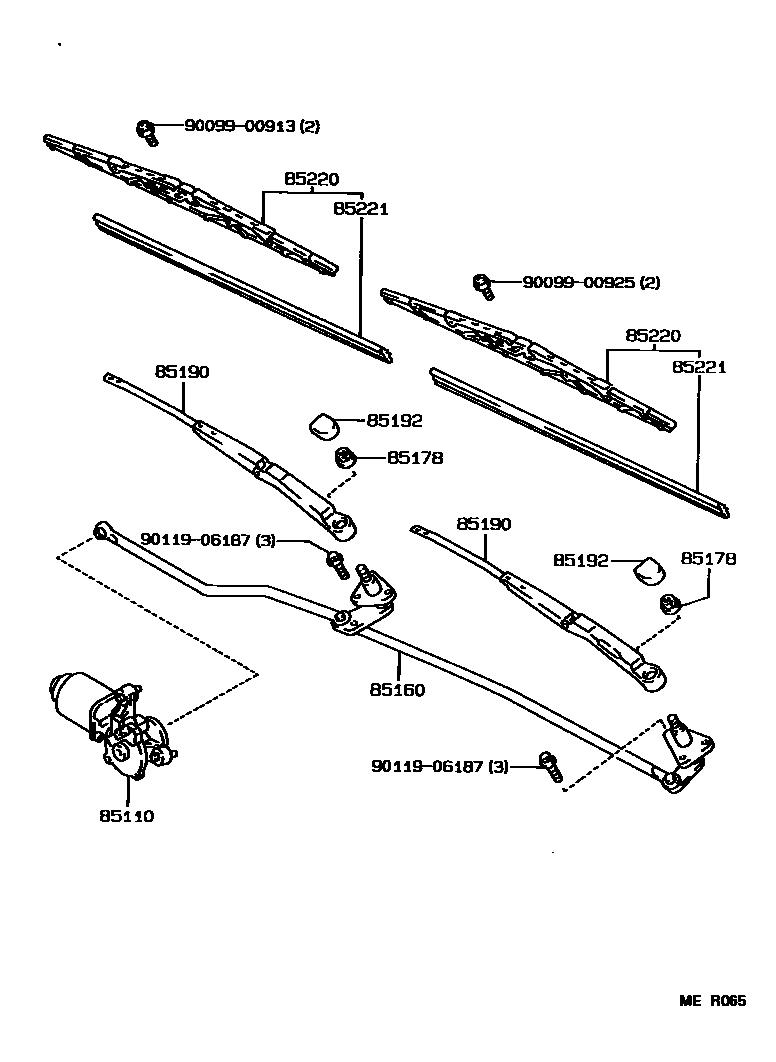

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12662iAE95..USA199009-199208

main85110-12672iAE95..CND199009-199308

85160LINK ASSY, WINDSHIELD WIPER

main85160-12491iAE95..USA199009-199208

main85160-12500iAE95..USA199009-199201

COLD SPEC

main85160-12501iAE95..USA199201-199208

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iAE95199009-199308

85190ARM ASSY, WINDSHIELD WIPER

main85190-12841iAE95199009-199308

LH

main85210-12251iAE95199009-199308

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iAE95199009-199108

main85292-12020×2iAE95199108-199308

PLANT NO.B11

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16880iAE95199009-199308

RH

sub85220-16640

main85220-32860iAE95199009-199308

LH

sub85220-3A050

85221BLADE, WINDSHIELD WIPER

main85221-30100iAE95199009-199308

RH

sub85221-40040

main85221-32050iAE95199009-199308

LH

sub85214-24H90

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

10 parts on this diagram · 1 diagram in section
