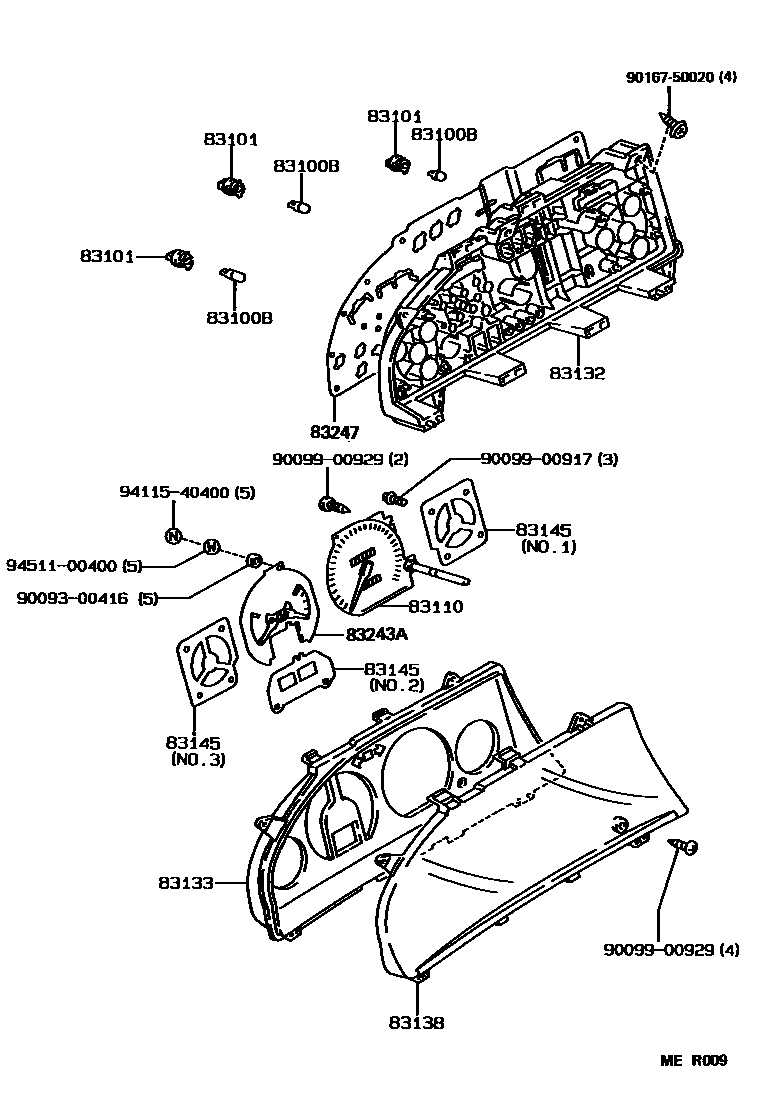

METER

0001 1 0002 1W(TACHOMETER) 0003 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080×3iAE95..SR5199009-199208

12V 1.4W,W(SOCKET)

main83109-12030×3iAE95199009-199308

12V 3.4W,BLUE CAP

main90981-11018×3iAE95..5F..DX199009-199308

12V 1.2W W/O SOCKET

main99132-12034×9iAE95..5F..DX199009-199308

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iAE95..SR5199009-199208

12V 3.4W BULB

main83101-14040×4iAE95..5F..DX199009-199308

12V 1.4W BULB

83110SPEEDOMETER ASSY

main83110-1E011iAE95..DX..USA199009-199208

main83110-1E021iAE95..DX..CND199009-199308

main83110-1E031iAE95..5F..DX..USA199009-199208

W(TACHOMETER)

main83110-1E041iAE95..SR5..CND199009-199208

83132CASE, COMBINATION METER

main83132-1A230iAE95..DX199009-199308

main83132-1A270iAE95..5F..DX199009-199308

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-1A750iAE95..DX199009-199308

main83133-1E030iAE95..5F..DX..USA199009-199208

W(TACHOMETER)

main83133-1E790iAE95..SR5..CND199009-199208

83138GLASS, SPEEDOMETER

main83138-1A030iAE95199009-199308

83145LENS, METER, NO.1

main83145-13090iAE95..4FC199009-199308

NO.3

main83145-13130iAE95..4FC199009-199308

NO.1

main83145-1E570iAE95..5F..DX199009-199308

NO.3

main83145-1E690iAE95..DX..USA199009-199208

NO.2

main83145-1E750iAE95..DX..CND199009-199308

NO.2

main83145-1E790iAE95..5F..DX199009-199308

NO.1

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1A251iAE95..SR5199009-199208

main83243-1A311iAE95..DX199009-199112

main83243-1H490iAE95..DX199112-199308

83247PLATE, METER CIRCUIT

main83247-13090iAE95..4FC199009-199308

main83247-1E320iAE95..5F..DX199009-199308

main83247-1E600iAE95..SR5199009-199208

9009300416

main90093-00416

9009900917

main90099-00917

9009900929

main90099-00929

9016750020

main90167-50020

9411540400

main94115-40400

9451100400

main94511-00400

15 parts on this diagram · 3 diagrams in section
