HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110BBULB(FOR HEADLAMP, NO.1)
12V 65/45W,*HAL,*WH
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81175UNIT ASSY, HEADLAMP, LH
8113232121NUT, HEADLAMP SELF LOCKING
main81132-32121
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9007510801
main90075-10801
9007510806
main90075-10806
9007510807
main90075-10807
9007599010
main90075-99010
9011906615
main90119-06615
9017906132
main90179-06132

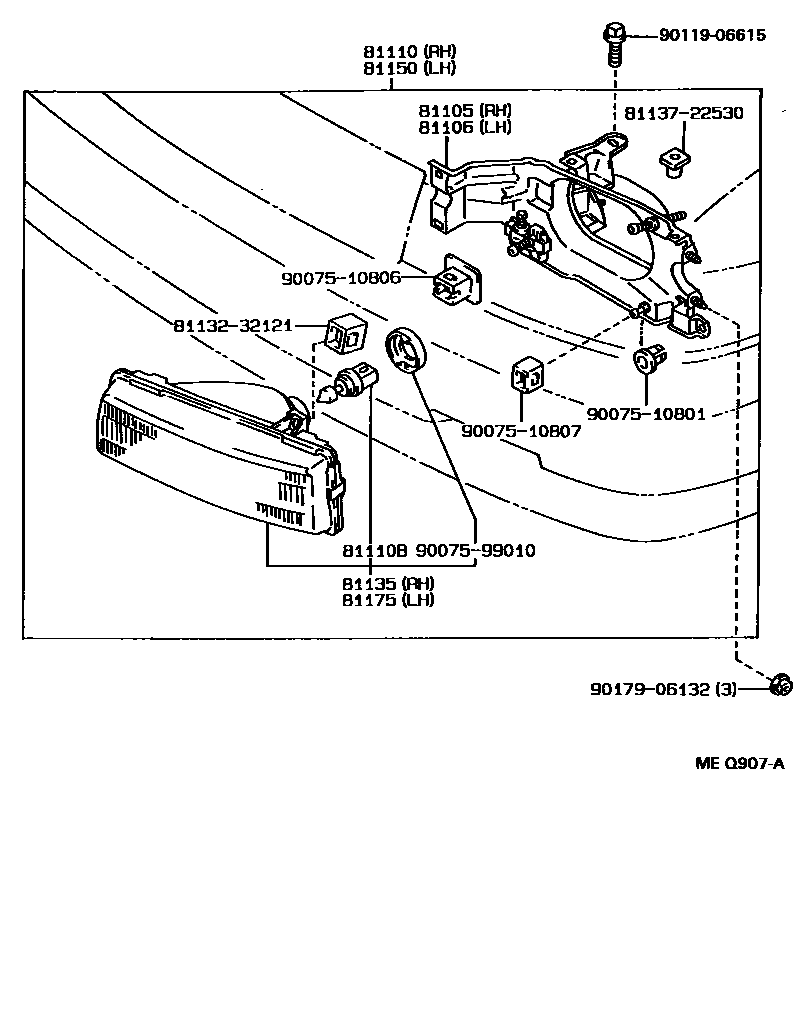

15 parts on this diagram · 1 diagram in section
